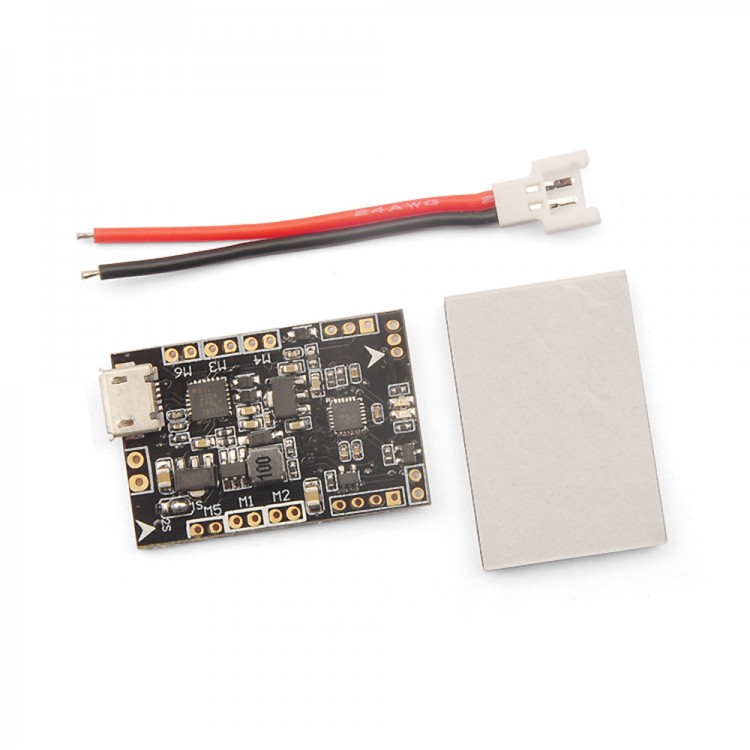

32bit ACRO NAZE32_Brush Flight Controller Coreless for FPV RC 6 Axis Aircraft Quadcopter Drone
Description:
The latest version 32bitACRO NAZE32_Brush flight control support 6-axis aircraft, operating current of each shaft can be up to 10A or above, improved blood pressure booster module, can reach to 500mah constand current output by using UART1 or UART2 output 5V, can meet the low-power diagram as 25mw FPV camera, support LED_STRIP function.
Tips: If you find a brush motor powered automatic forwarding, please CF software in the CLI command line mode, enter "set motor_pwm_rate = 1000", press Enter, and then enter the "SAVE" and press Enter to save. You can solve the problem.
Specification:
- Item Name: NAZE32_BRUSH Flight Control
- Dimension: 22mm*32.5mm
- Thickness: 1.2mm
- Weight: 3g
Features:
- NAZE32_BRUSH revision is out in NAZE32 flight control based on, is a 32-bit-based NAZE32 firmware brush flight control.
- Improve the power supply input scheme, so that flight control support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring more violent flying experience. Individually designed circuit configuration, comes with Buck booster technology, or both 1S 2S power input, UART1 / 2 output 5V, DSM output 3.3V.
- With a large current NMOS transistors, operating current of up to 10A per channel or more.
- Support for PPM, SBUS, DSM receiver input signal.
- With battery voltage detection and buzzer interface.
- Support for the current world face almost all coreless motors, including the 1020 and other behemoths of the hollow cup.
Receiver configuration:
- DSM receiver configured UART2 soldered directly to the DSM port Serial RX 3.3V, GND, RX3, CF the software, changing the Receiver mode as RX_SERIAL, and the receiver is set to Spektrum1024 brand or 2048;
- PPM PPM receiver port soldered directly, without opening RX_SERIAL, in CF the Receiver mode the software can be set to RX_PPM;
- SBUS receiver directly welded to configure UART2 UART2 Serial RX in port, CF the software, changing the Receiver mode as RX_SERIAL, and the receiver brand set SBUS.
Package List:
- 1 x 32bit ACRO NAZE32_Brush Flight Controller
