32bit Mini Pixhawk V2.4.6 Flight Control with M8N GPS & 433Mhz Telemetry/OSD/LED/PPM/PM/I2C for FPV Mulicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$181.88
  • Price in reward points: 1819 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $178.24 $174.60 $169.15 $161.87 Contact US
Quantity:

32bit Mini Pixhawk V2.4.6 Flight Control with M8N GPS & 433Mhz Telemetry/OSD/LED/PPM/PM/I2C for FPV Mulicopter

Comparing with the standard version, The revisions made on Pixhawk mini are as follows:
- SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
- The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
- NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
- The same matte black gold plate as the original version, high quality
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high
- Size: from 81.5*50*15.5 to 60*38*14MM
- Weight: from 38g to 27g
- All interfaces are changed to 2.5.4 dupont interfaces both front and behind, convenient for cable connection
- The internal power supply mode is changede, adopting TI power supply plan, external input voltage can reach to 3-15V wide input
- The part of IMU is modue group , maximize to reduce the inteferences, more stable state


Pix Mini Hardware Configuration
Processor
- 32bits ARM Cortex M4 core includes FPU( floating point unit)
- 168 Mhz/256 KB RAM/2 MB flash memory
- 32bits error protection coprocessor
Sensor
- ST Mirco 12bit Gyroscope L3GD20 Upgrade to 16bit Gyroscope L3GD20H
- ST Micro 14bits accelerometer/ Magnetometer LMS303D
- MEAS barometer  MS5611
Power supply
- super high performance three channels low differential pressure diode tube paralleling input
- any channel supports 3S, directly input and gurantee the stable work of maincontrol
All external interface have complete overcurrent shortcircuit, ESD electrostatic protection
Interface
- 5 UART serial ports, one supports large power, two have hardware flow control
- Spektrum DSM/DSM2/DSM-X satellite input
- Futaba S.BUS input and output
- PPM sum signal
- RSSI(PWM or voltage)input
- I2C, SPI, two CAN, USB
- 3.3 and 6.6 ADC input
Size
- Weight:27g
- Length: 60MM
- Width: 38MM
- Height: 14MM


Ublox M8N GPS Description:
- NEO-M8N has low consumption high precision, limiting precision 0.6m, most are about 0.9m according to tests
- Compared to NEO-7N 1.4-1.6m, the precision has been greatly improved, and support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- Dupont interface
- It can only work with I2C Splitter Expand Module

433Mhz 3DR Radio Telemetry Features:
- Very small size
- Light weight (under 4 grams without antenna)
- Available in 433Mhz
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- Range of approx 1 mile
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.
- for APM/APM Pro/Pixhawk/Mini Pixhawk Flight Controller

Mini OSD Description:
- Mini Pixhawk/APM/APM Pro has an companion OSD board called Mini OSD. It reads all the MAVLink data in the Mini Pixhawk/APM/APM Pro telemetry stream and overlays it on the video stream if you're using an on-board camera and wireless video transmitter. This is useful if you're flying in First Person View (FPV) mode or don't want to use a laptop at the field to see your telemetry data in the Mission Planner.
Instructions on connecting and using the Mini OSD board via the Mini Pixhawk/APM/APM Pro telemetry port are here.

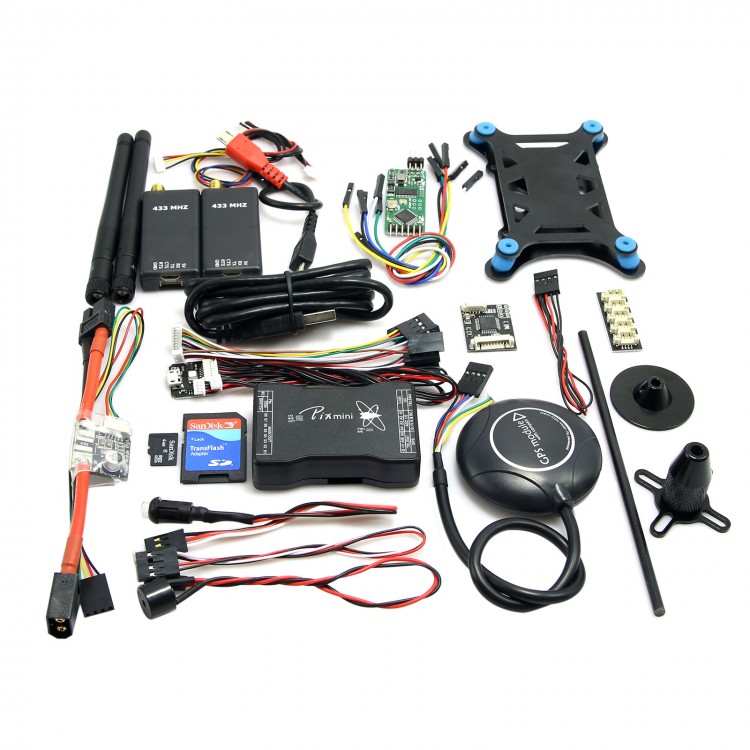

Package Include:
- Mini Pixhawk 2.4.6 Flight Controller  x  1
- Original Shell  x 1
- Buzzer  x  1
- PWM Dupont Cable x 2
- TF 8G Card  x 1
- Power Supply Module x 1
- Ublox NEO-M8N GPS(Dupont interface)  x 1
- Mini OSD Module for Mini Pixhawk/APM/APM Pro  x  1
- Pixhawk-I2C Splitter Expand Module x 1
- PPM module  x  1
- External LED light board x 1
- V2 433Mhz 3DR Radio Telemetry  x 1
- GPS Folding Holder x 1
- Shock Absorber x 1
- USB Data Cable x 1
