32bit Mini Pixhawk V2.4.6 Flight Control with M8N GPS & 915Mhz 3DR Radio Telemetry & Card & PM & I2C for FPV Mulicopter
Comparing with the standard version, The revisions made on Pixhawk mini are as follows:
- SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
- The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
- NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
- The same matte black gold plate as the original version, high quality
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high
- Size: from 81.5*50*15.5 to 60*38*14MM
- Weight: from 38g to 27g
- All interfaces are changed to 2.5.4 dupont interfaces both front and behind, convenient for cable connection
- The internal power supply mode is changede, adopting TI power supply plan, external input voltage can reach to 3-15V wide input
- The part of IMU is modue group , maximize to reduce the inteferences, more stable state
| Pix Mini Hardware Configuration |
| Processor |
| - 32bits ARM Cortex M4 core includes FPU（ floating point unit） |
| - 168 Mhz/256 KB RAM/2 MB flash memory |
| - 32bits error protection coprocessor |
| Sensor |
| - ST Mirco 12bit Gyroscope L3GD20 Upgrade to 16bit Gyroscope L3GD20H |
| - ST Micro 14bits accelerometer/ Magnetometer LMS303D |
| - MEAS barometer MS5611 |
| Power supply |
| - super high performance three channels low differential pressure diode tube paralleling input |
| - any channel supports 3S, directly input and gurantee the stable work of maincontrol |
| All external interface have complete overcurrent shortcircuit, ESD electrostatic protection |
| Interface |
| - 5 UART serial ports, one supports large power, two have hardware flow control |
| - Spektrum DSM/DSM2/DSM-X satellite input |
| - Futaba S.BUS input and output |
| - PPM sum signal |
| - RSSI（PWM or voltage）input |
| - I2C, SPI, two CAN, USB |
| - 3.3 and 6.6 ADC input |
| Size |
| - Weight：27g |
| - Length: 60MM |
| - Width: 38MM |
| - Height: 14MM |
Ublox M8N GPS Description:
- NEO-M8N has low consumption high precision, limiting precision 0.6m, most are about 0.9m according to tests
- Compared to NEO-7N 1.4-1.6m, the precision has been greatly improved, and support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- Dupont interface
- It can only work with I2C Splitter Expand Module
915Mhz 3DR Radio Telemetry Features:
- Very small size
- Light weight (under 4 grams without antenna)
- Available in 915Mhz
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- Range of approx 1 mile
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.
- for APM/APM Pro/Pixhawk/Mini Pixhawk Flight Controller

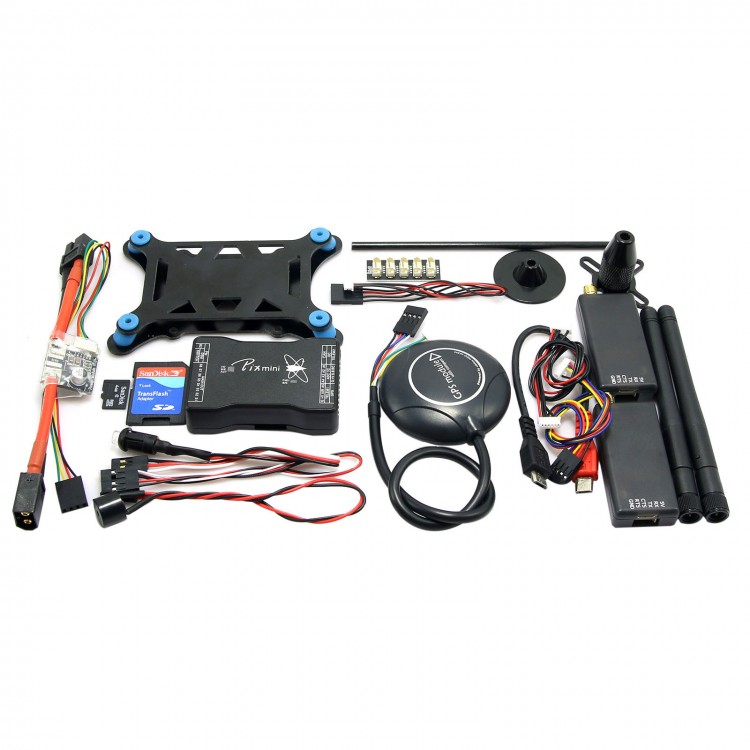

Package Include:
- Mini Pixhawk 2.4.6 Flight Controller x 1
- Original Shell x 1
- Buzzer x 1
- PWM Dupont Cable x 2
- TF 8G Card x 1
- Power Supply Module x 1
- Ublox NEO-M8N GPS(Dupont interface) x 1
- Pixhawk-I2C Splitter Expand Module x 1
- V2 915Mhz 3DR Radio Telemetry x 1
- GPS Folding Holder x 1
- Shock Absorber x 1
