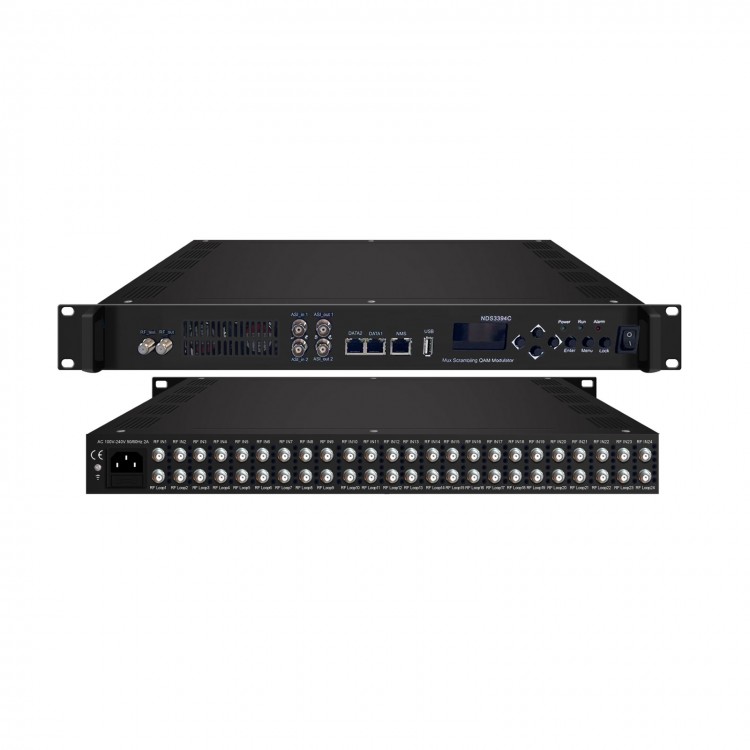

3394C-V3 24-IN-1 Mux Scrambling QAM Modulator 24 Port Tuner DVBS2 Input to IP and RF Output with Scrambling 16 Carriers
Description:

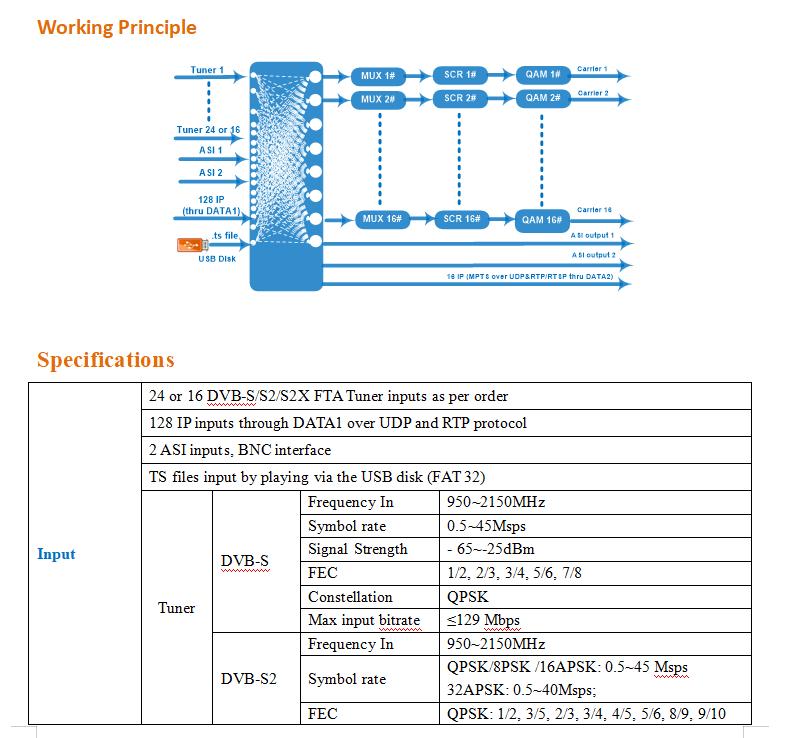

- 3394C V3 is a high performance and cost-effective QAM modulator designed by Dexin. It supports 24 or 16 DVB-S2 FTA tuner input, maximum 128 IP inputs through DATA1 and 2 TS inputs for re-mux through 2 ASI inputs port. After demodulating, multiplexing and QAM modulating, it outputs 16 non-adjacent carriers and 16 IP (MPTS) through DATA2. Two kinds of software for order option, BISS descrambling version (no scrambler feature) or Scrambler version (no BISS descrambling feature).
- 3394C V3 is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Key Features:
-24 DVB-S/S2/S2X FTA Tuner inputs with loop out + 2 ASI inputs + 128 IP inputs thru DATA 1 over UDP and RTP protocol, and TS files input by playing via an USB disk (FAT 32)
- 16 DVB-C non-adjacent carriers output, within 192MHz bandwidth
- 16 IP (MPTS) outputs over UDP and RTP/RTSP, as mirror of the carriers
- 2 TS outputs thru ASI out 1 and ASI out 2, as mirror of the 2 chosen carriers
- Support 16 groups multiplexing +16 groups QAM modulating
- Excellent RF output performance index, MER≥40db
- Support accurate PCR adjusting
- Support PSI/SI editing and inserting
- Support Web management, Updates via web
Package Included:
- 1 x Modulator
