340W High Power Version 0-12A Delay Module Wireless Remote Control Switch Timer Modification Electronic Water Pump Control

340W High Power Version 0-12A Delay Module Wireless Remote Control Switch Timer Modification Electronic Water Pump Control

Specification:
- Model: YK-RCT103
- Product type: wireless witch (timing or auto-lock)
- Remote control: 315M
- Remote control keys: 3 keys
- Button function: time +; time-; on/off
- Power supply: DC5 - 28V
- Output current: 0 - 10A/0 - 12A (optional)
- Output power: 180W (low power version)/340W (high power version); for 180W or above requires high-power version
- Time range: 0 - 100 minutes adjustable or auto-lock
- Remote control distance: 50m in open field (for reference only)
- Pairing method: one to one, one to multi, multi to one, default support for three to one.
- Product size: 48 x 29 x 48mm (hole size: 45.6 x 26mm
- Working temperature: -20℃ ~ 80℃
- Working humidity: 10%RH - 90%RH
- Weight: 98g
- Product protection: power reverse connection protection, output short-circuit protection
- Product installation: hole installation or positioning hole installation, hole space 38mm, hole diameter M3
- Application: light strip control, stroller control, solenoid valve, toy car and other places that require remote control
- Interface: 5.08 wiring terminal

Function Description:
- Function: Press the start button; output start; countdown begin; the countdown end; output stop. Press the start button again during the delay period; the output immediately stops and the time resets.
- Auto-locking function: Press the middle button on the remote control to keep the controller open; Press the middle button on the remote control again to turn off the controller.

Setting Instruction:
- Short press the button on the back to activate the manual switch.
- Press and hold the button for 4 seconds to enter pairing mode. The digital tube displays - - - -, and the LED on the back flashes. Press any key on the remote control to pair. Paired successfully, the digital tube displays the time interface.
- Long press the button for more than 6 seconds to clear all remote control pairing. At the same time, the digital display shows FFFF and automatically returns to the time interface after 1 second.

Time Setting Instructions:
- Remote control up key: Short press, the current control time position +1; long press to move the control time bit to the left.
- Remote control down key: Short press, the current control time bit -1; long press to move the control time bit to the right.
- Middle key: start/stop.
- When the set time is greater than 99:59, - - : - - will be displayed. At this time, the controller function is an unlimited self-locking function, that is, pressing the middle button of the remote control will keep the controller open until pressing the middle button of the remote control again will turn off the controller.

Special Function:
- Power-off memory: The time parameter is automatically stored within 2 seconds after the setting is completed, whether it is the next time the device is turned on or the last time it was powered off. If the previous setting was 30:45, the next boot will still be at 30:45; The last setting was - - : - -, and the next boot will still have the self-locking function - - : - -.

Precaution:
- When controlling high-power switches, it is necessary to confirm whether the power supply current is sufficient. Insufficient power supply current capacity may cause the control module to reset or restart.
- When controlling high-power switches, poor contact or poor quality wires may cause excessive line resistance and loss, which can cause the control module to reset or restart.
- When unable to start with a short press at a long distance or signal obstruction, continue to press the button until the device is turned on. If the device cannot start even with a long press, it exceeds the maximum control distance.

Package Included:

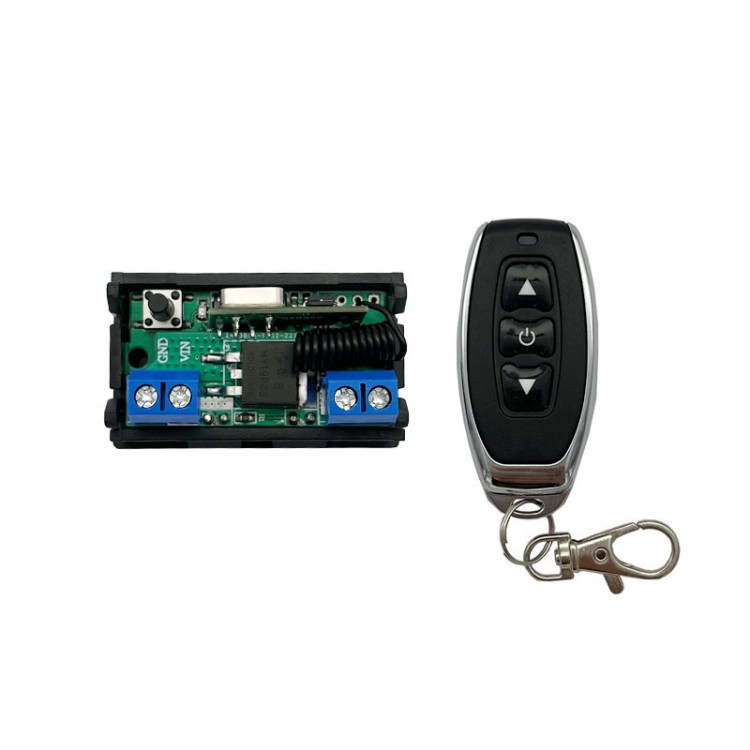

- 1 x Delay Module
- 1 x Mini Remote Control
