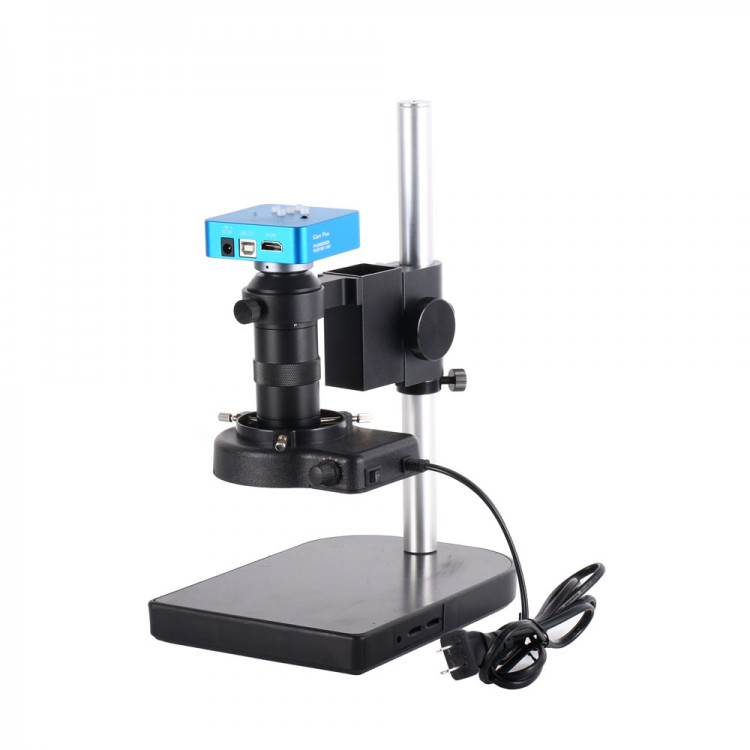

34MP 2K Industrial Microscope Camera Stand Kit USB Outputs w/ 100X C-Mount Lens 56-LED Ring Light
Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 34MP
Video format: MP4 (for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Mirror: Left/right, Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color, 5 horizontal line, 5 vertical line, any positions
Specifications:
Image sensor: For 34MP CMOS sensor 1/2.33 inch
Effective pixel: 34MP
Pixel size: 1.335μm x 1.335μm
Frame rate: 60fps
Definition: FULL HD
Housing: metal
Lens: C/CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5pcs of transverse lines/vertical lines, moveable
Different color, 5 horizontal line, 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
100X C-mount Lens:
Magnification Power by 0.12-2X (about 8X-100X on the display)
Work distance: 100mm
Visual field: 2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
56 LED Ring Light:
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60Hz, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm
Package Included:
1 x Set of Microscope Camera Stand
Note: LCD monitor is not included.
