34MP Industrial Microscope Camera Kit HDMI 2K 1080P 60FPS with 120X C-Mount Lens & 56 LED Ring Light

34MP Industrial Microscope Camera Kit HDMI 2K 1080P 60FPS with 120X C-Mount Lens & 56 LED Ring Light

Features:
- Model: Camera with HDMI USB2.0 two output
- Image format: jpg
- Image resolution: 34MP
- Video format: MP4 (for TF card)
- Video recorder: 2K@30FPS, 1080P@60FPS
- HDMI Video resolution: 1920*1080 @ 60FPS
- USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
- White Balance: Auto/Manual
- Light: Auto/Manual
- Exposure: Auto/Manual, value adjustable
- Color: Color
- Mirror: Left/right, Up/Down
- Freeze: Support
- OSD: English/Chinese/French/Spanish/Japanese/German
- Line: different color, 5 horizontal line, 5 vertical line, any positions

Specifications:
- Image sensor: For 34 megapixel Panasonic CMOS sensor 1/2.33 inch
- Effective pixel: 34 megapixel
- Pixel size: 1.335μm x 1.335μm
- Frame rate: 60fps
- Definition: FULL HD
- Housing: metal
- Lens: C/CS
- Video format: MOV
- Digital Zoom: Support
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line:
* Support multi-color, 5pcs of transverse lines/vertical lines, moveable
* Different color, 5 horizontal line, 5 vertical line, any positions
- TF card interface: Max 64G
- HDMI interface: Standard HDMI output (Type A)
- USB interface: Standard usb2.0 interface (Type B)
- Input Voltage: DC 12V

120X C-Mount Lens:
- Magnification Power by 0.12-2X (about 8X-120X on the display)
- Work distance: 250mm
- Visual field :2.4mm-32mm
- Weight: 100g

56 LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 56 bright LED
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, auto switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-120mm

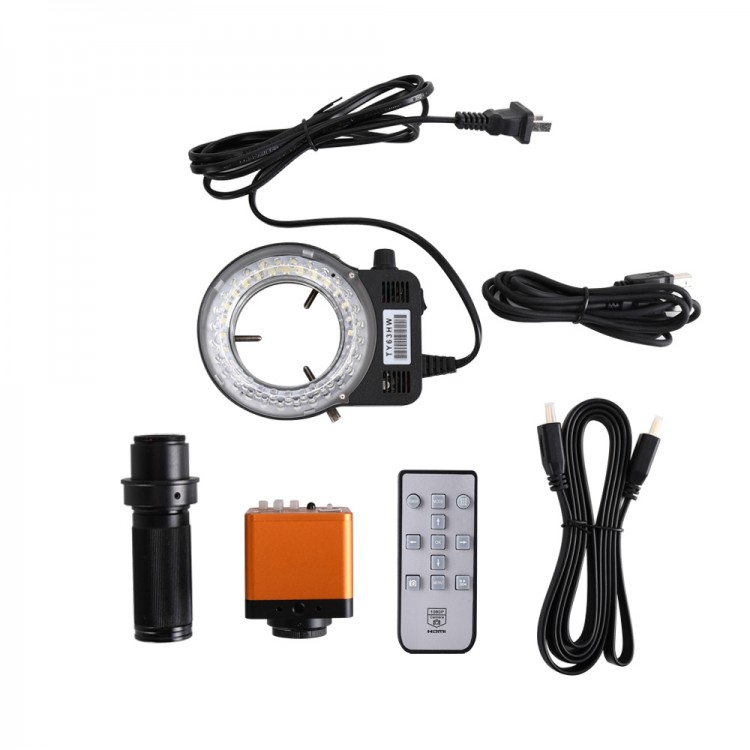

Package Included:
- 1 x Set of Microscope Camera

Attention:
- This is mainly a hdmi camera. If you need it get higher image quality for usb output, please choose the professional usb camera or contact us before place the order so we will give you some suggestion.
- For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted.

Note:
1: PC Support: For Windows XP/7/8/10 system.
2: For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3: When use USB connection, please make sure no TF card in the camera, TF card storage is only for HDMI output. USB output will be storage in PC.
4: When connect the camera with computer, just plug the USB line is OK ( no need to use the power supply).
