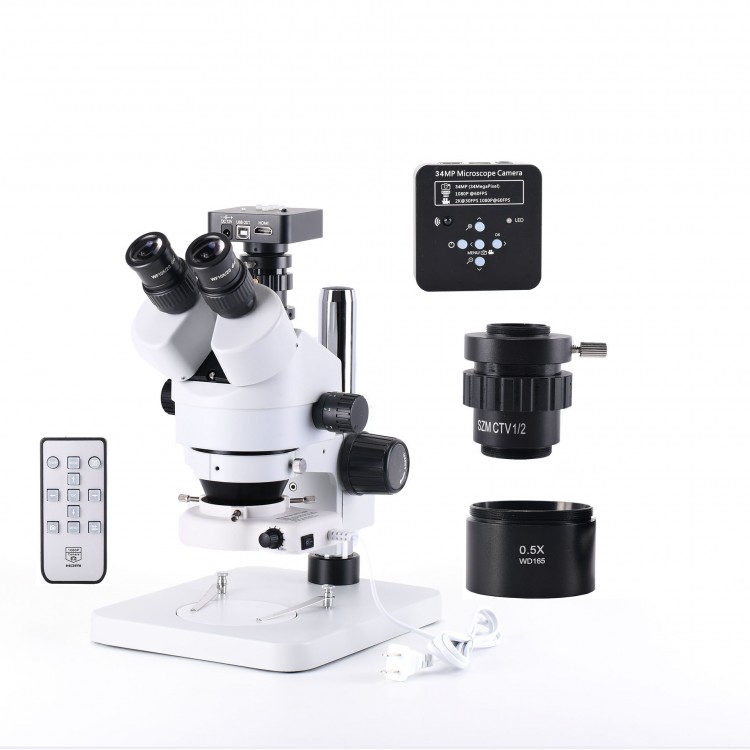

34MP Stereo Microscope with Camera PCB Repair Microscope Kit w/ 56 LED Light Zoom 7X-45X

34MP Stereo Microscope with Camera PCB Repair Microscope Kit w/ 56 LED Light Zoom 7X-45X

Description:
This stereo microscope has a 56-LED ring light that offers super wide field optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Trinocular's Feature:
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
7X-45X super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included

Trinocular's Specifications:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super wide field high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4" (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Round Plate: 3-3/4" (95mm) in diameter
Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Weight: 5.5kg

Camera's Features:
Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 34MP
Video format: MP4(for TF card)
Video recorder: 2K@30FPS, 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Color: Color
Mirror: Left/right, Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Japanese/German
Line: different color, 5 horizontal line, 5 vertical line, any positions

Camera's Specifications:
Image sensor: For 34MP Panasonic CMOS sensor 1/2.33 inch
Effective pixel: 34MP
Pixel size:1.335μm x 1.335μm
Frame rate: 60fps
Definition: FULL HD
Housing: metal
Lens: C/CS
Video format: MOV
Digital Zoom: Support
Brightness control: Auto/manual
Color: R/G/B adjustable
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5pcs of transverse lines/vertical lines, moveable
Different color, 5 horizontal line, 5 vertical line, any positions
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
USB interface: Standard usb2.0 interface (Type B)
Input Voltage: DC 12V

Package Included:
- 1 x Set of Stereo Microscope

Note: Display pictured is not included in the package.
