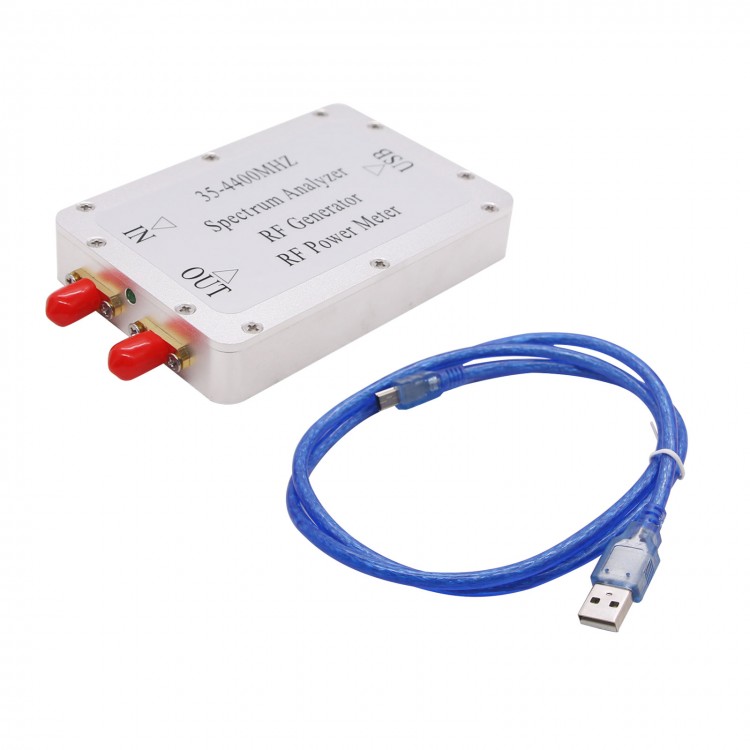

35-4400MHz USB Simple Spectrum Analyzer RF Signal Generator Tracking Source RF Power Meter
Features:
- The quality of the output signal of swept frequency tracking source is much higher than similar products on the market.
- Perfect for XP/WIN7/WIN10 and other systems.
- With 4mm CNC aluminum alloy chassis, its shielding interference ability overshadows that of normal and 1.5mm housing.
Specifications:
- Signal generator and spectrum analyzer frequency range: 35MHz-4.4GHz (35-4400MHz)
- Minimum step:1K
- Output power(reference): 0dBm@1GHz
- Frequency accuracy (calibration): -0.1k@1GHz
- Spectrum analyzer max linear input power: -10dBm
- Spectrum analyzer not damage input power: 10dBm
- MiniUSB power: 5V/0.3A
- Interface:USB, SMA@50Ω
- Size: 88*59*13mm (L*W*H)
- Weight: 140g
Package Included:
- 1 x Spectrum Analyzer
- 1 x Power Cable

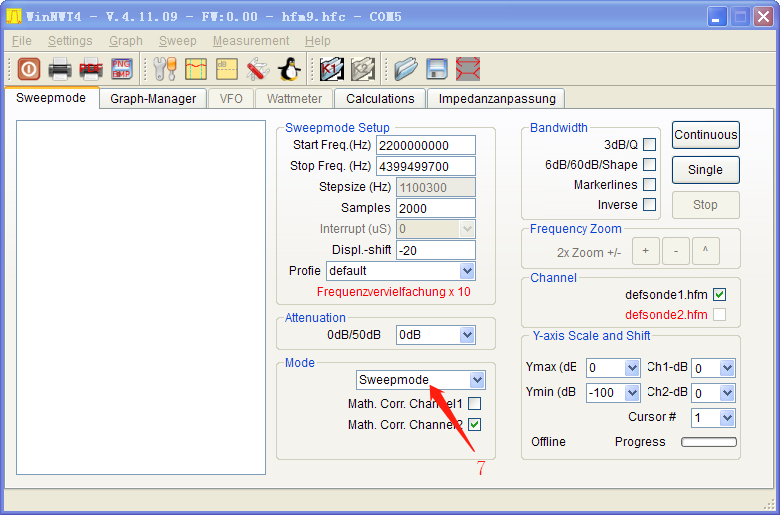

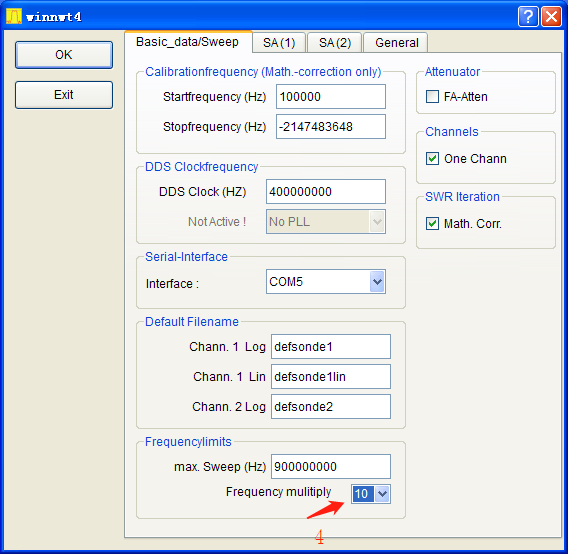

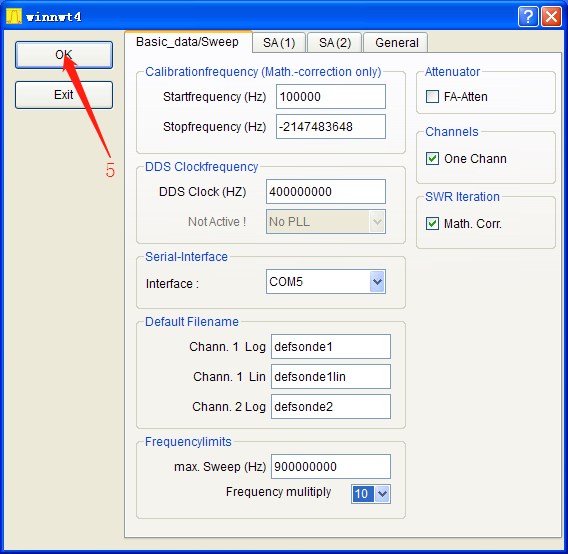

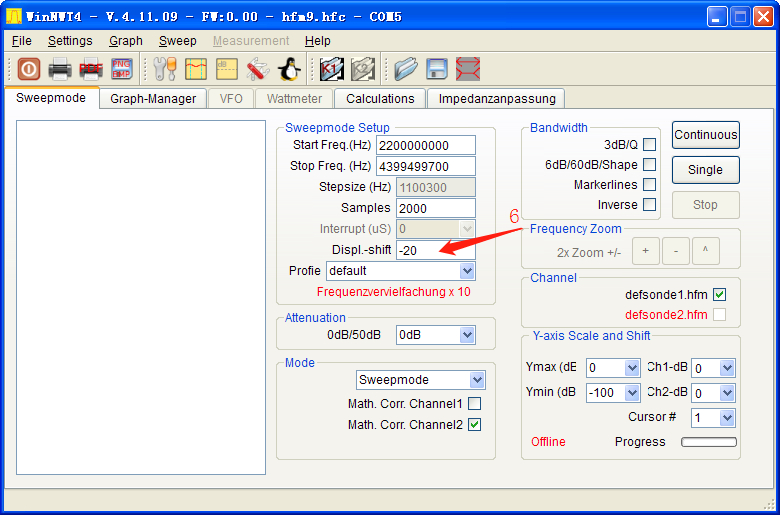

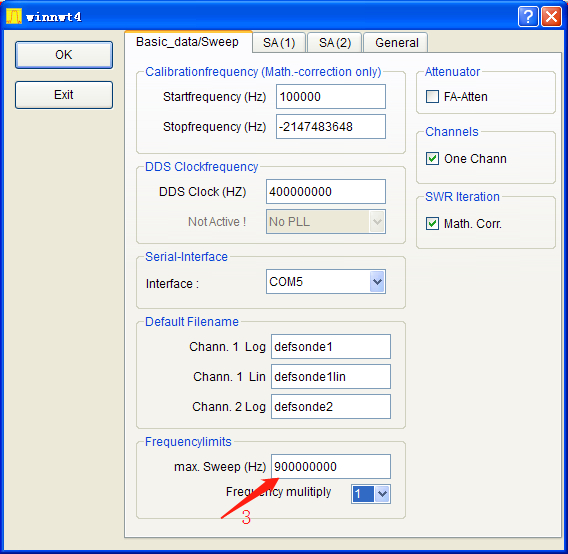

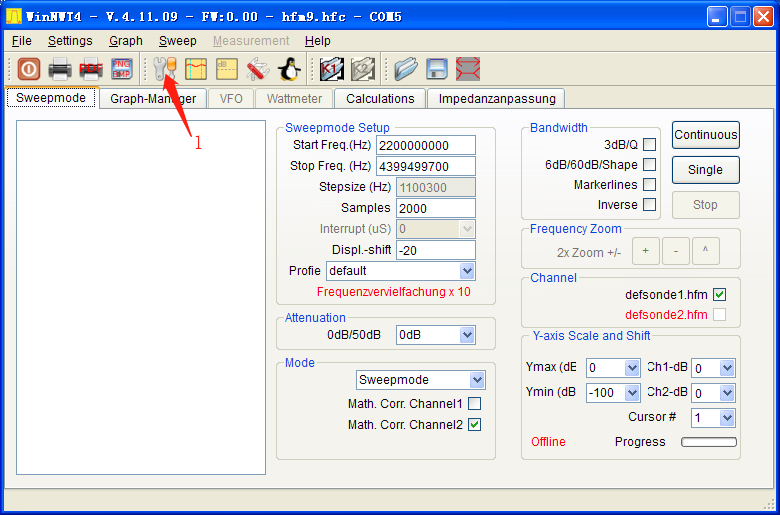

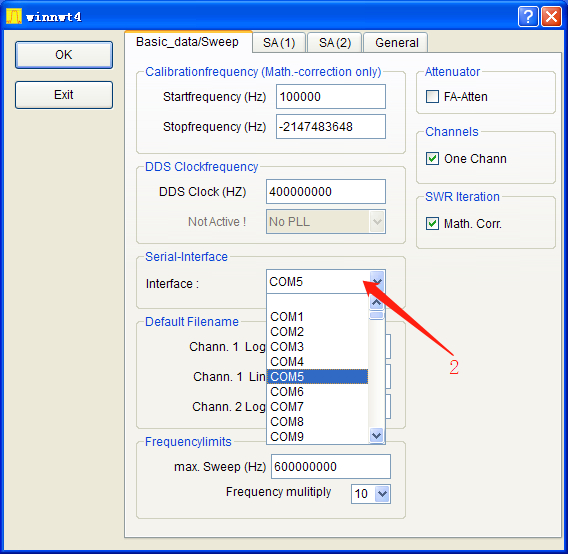

Software Settings:
