350W 24V Electric Bike Conversion Kit Scooter Motor Controller Kit for 22-28" Ordinary Bikes

350W 24V Electric Bike Conversion Kit Scooter Motor Controller Kit for 22-28" Ordinary Bikes

Description:
Environmentally friendly material, durable and easy to operate.
This kit is suitable for installation on regular bicycles of 22-28 inches.
This kit is not suitable for modification in special models and variable speed models.

Specifications:
- Name: Electric Bike Conversion Kit
- Fit For: 22 inch-28 inch ordinary bicycle
- Rated Voltage: 24V
- Rated Power: 350W
- 350W's Max. Speed: 35-40km/h
- Input: AC 90-240V 50/60Hz
- Output: DC 24V 1.6A-2.0A
- Flywheel Teeth: 16
- Rated Speed: 3300 rpm
- Reduction Ratio: 9.78
- Motor Load Capacity: 130KG (If tricycle body is too heavy, it is not recommended)
- N.W.: 5.2kg

Wiring Instruction of Motor Controller:
1. Black & Red-Battery (Battery is not included)
2. Blue & White(or yellow)-motor
3. Blue & Red-Key Switch
4. Blue & Red & Black-Accelerator
5. Yellow & Black-Brake
6. Red & Black-Headlight
7. Red & Black-Charging Port
8. Red & Black-Brake Light
There are labels on connector 6,7,8

Fitment:
- This kit is suitable for bike with one gear only. If your bike is 18/21/24 speed, you need buy a special axle to install the kit on left-hand side.

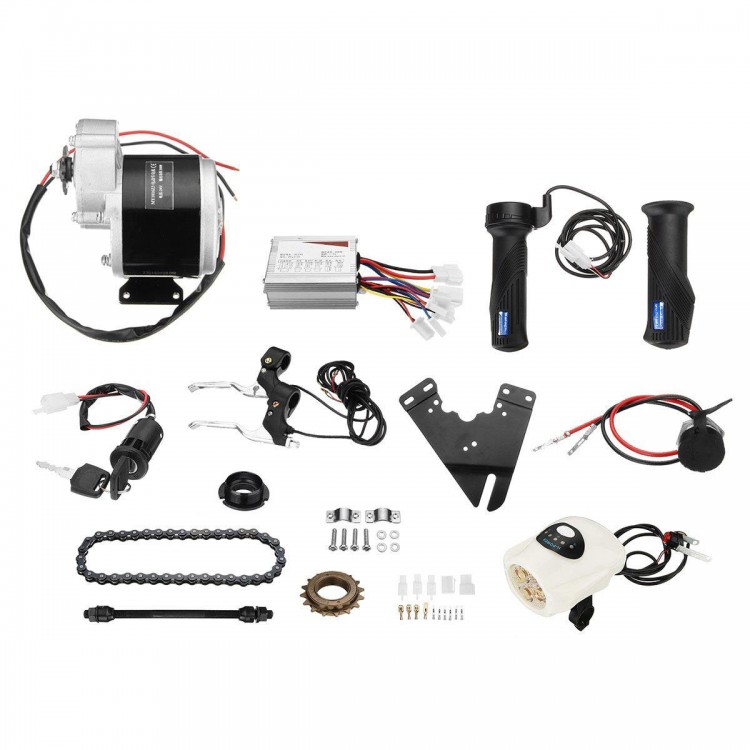

Package Included:
- 1 x Motor 350W
- 1 x Charger 24V 1.8A
- 1 x Motor Controller
- 1 x 3-In-1 Light 24V (Display electricity & electronic horn)
- 2 x Speed Control Switches
- 2 x Handles
- 1 x Key Switch
- 1 x Chain
- 1 x Flywheel 16-Teeth
- 1 x Flywheel Connector Outer Diameter 34mm (Optional Inner Diameter: 21, 26, 31)
- 1 x Set of Plastic & Copper Plug-in Components
- Other Accessories

Note:
- Some practical ability, basic circuit and assembly knowledge are needed for installation.
- Please tell us the inner diameter of the flywheel connector you want when purchasing.
