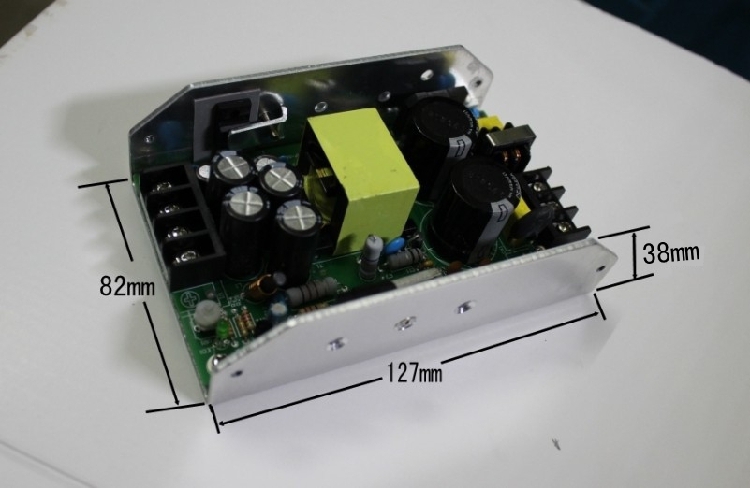

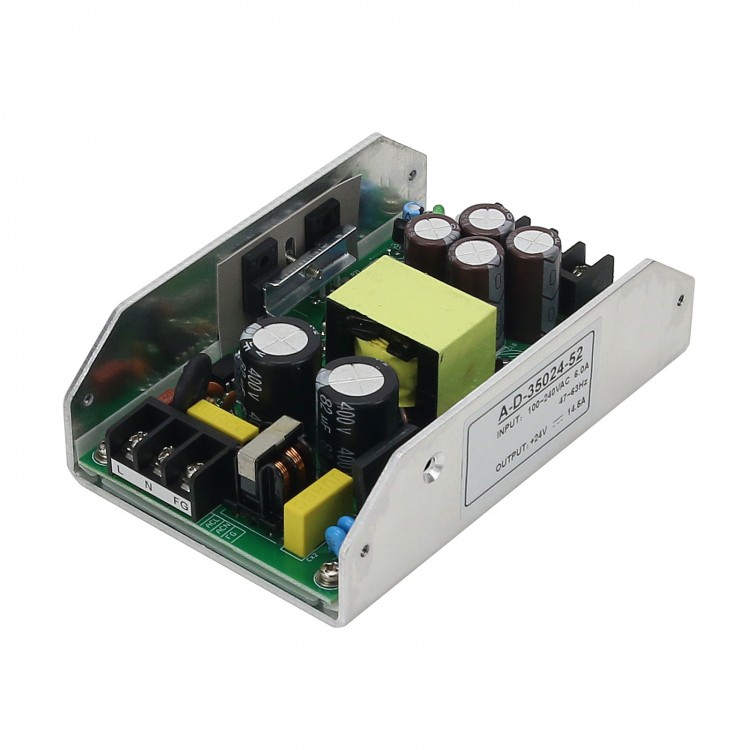

350W Amplifier Power Supply Switching Power Supply Noise-Free Output 24V 14.5A For Digital Power Amp
Attention:
The power supply is designed with a single positive voltage instead of positive and negative voltage.
Features:

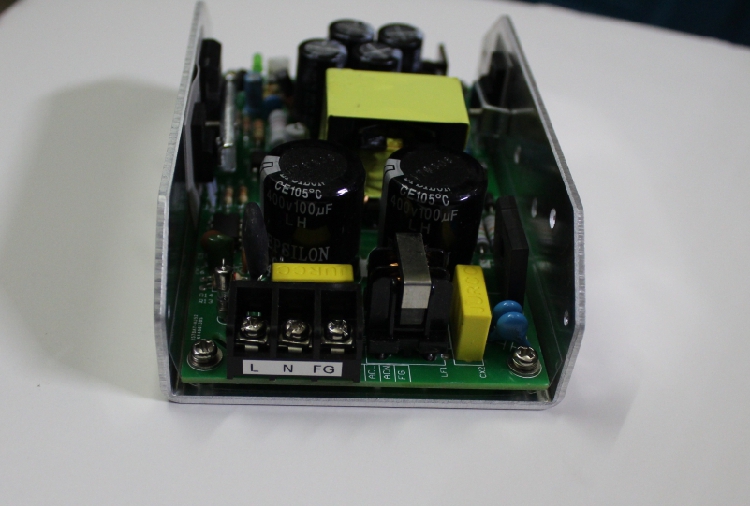

- Input Terminals: L and N are respectively connected to live and null wires of 220V plug. FG can be connected to a shell or earth wire.

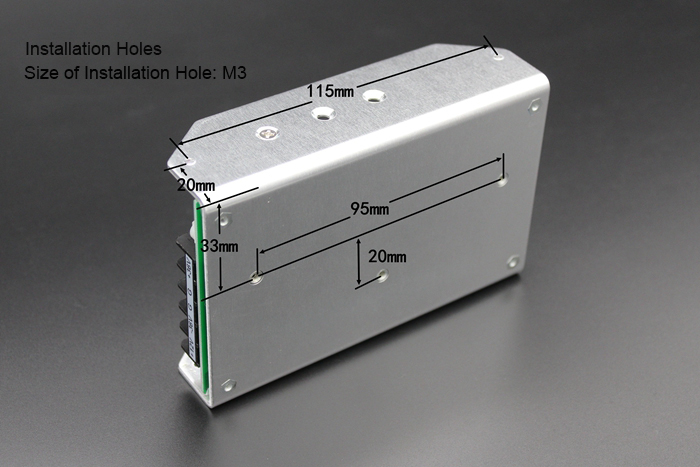

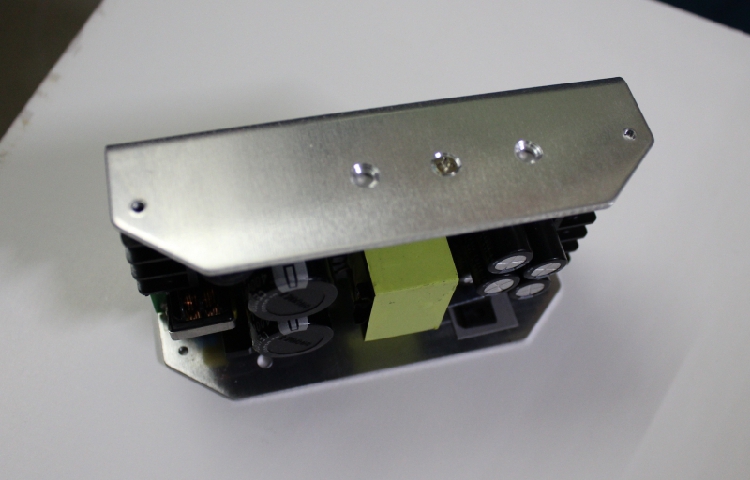

- Pure aluminum heat sink and shell. There are three M3 fixing holes in the middle of the bottom, which can be fixed on a chassis or on a larger heat sink.
- There are also two M3 fixing holes on two sides, and a heat sink can also be installed or fixed on the sides.
- This power supply is specially designed for power amplifier circuit. Pure aluminum shell is for heat dissipation and shielding. Ripple interference is very small.
Package Included:
- 1 x Switching Power Supply
Note:
- Input and output power cords are not included, please purchase separately.
- The upper part of the power supply is exposed. In order to prevent electric shock, please install it in an amplifier case for use.
