3536S 24-Channel HDMI-compatible Encoder Network Modulator Support for HDMI-compatible Input IP and 16RF Output DVBC/DVBT
Description:

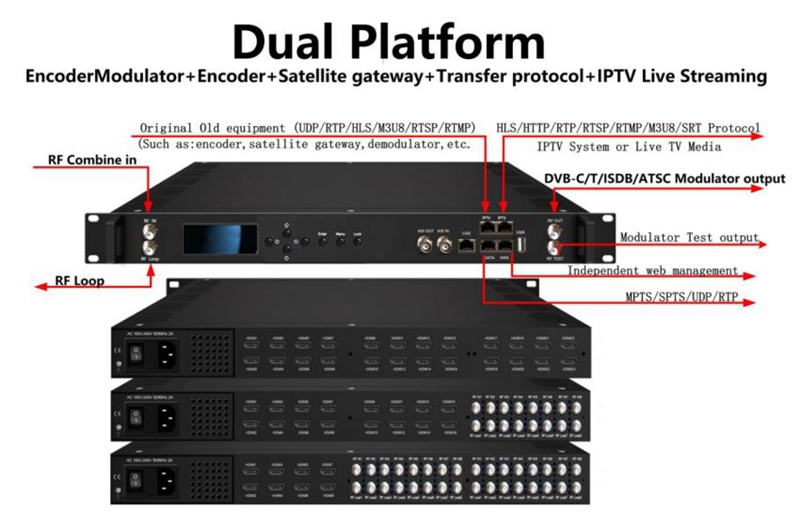

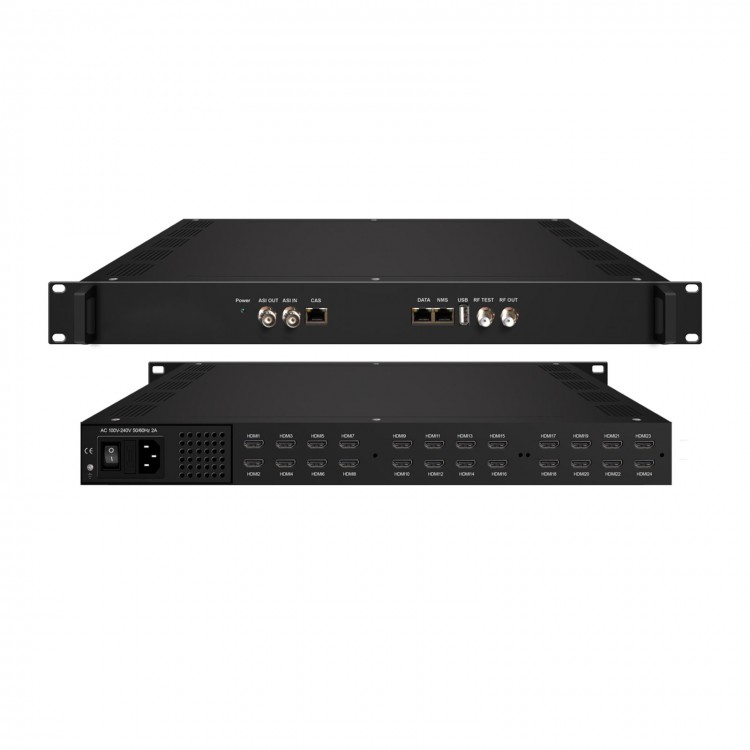

- NDS3536S-V2 is a professional high integration device which includes encoding (and de-modulation), multiplexing, and modulation functions, and satellite gateway, and iptv live streaming, and transform protocol in one case. It supports 8/16/24 HDMI-compatible (or HDMI-compatible plus DVB-S2/S2X tuner) inputs, 1 ASI input, 1 USB player input and 128 IP inputs via the GE port, 2 GE iptv date transform port, and output by multiple DVB-C (or DVB-T/ATSC/ISDB-T optional) carrier channels. It also supports MPTS output as mirror of carriers through the GE port and 1 ASI out as mirror of one of the carriers. And support for HLS/M3U8/RTPS/RTMP/SRT etc protocol output. This full function device makes it ideal for small CATV head end system, IPTV Live TV system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment.
Features:

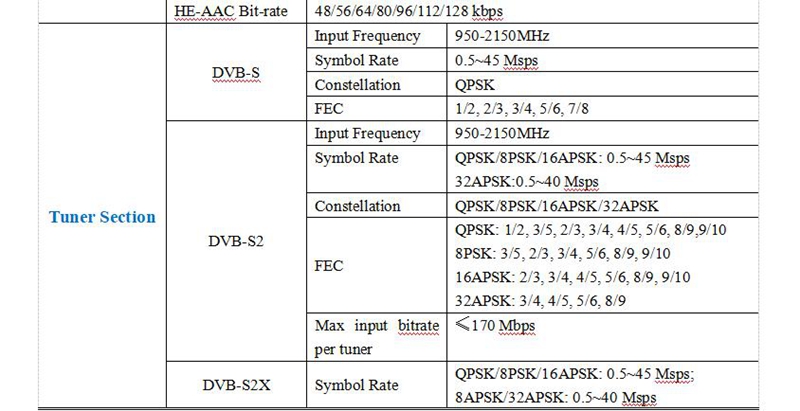

- 24 HDMI-compatible (or HDMI-compatible plus DVB-S2/S2X tuner) inputs, MPEG-4 AVC/H.264 video encoding, satellite gateway function.
- 1 ASI input for re-mux, 2 GE transform port.
- 1 USB Player (Insert the USB Flash drive with “xxx.ts” videos in NDS3536S and play back the content in an easy way; file system FAT 32).
- 128 IP input over UDP and RTP via GE port.
- Each carrier out channel process maximum 32 IP from the GE port (UDP & RTP protocol).
- MPEG1 Layer II, LC-AAC and HE-AAC audio encoding, AC3 Pass Through and audio gain adjustment.

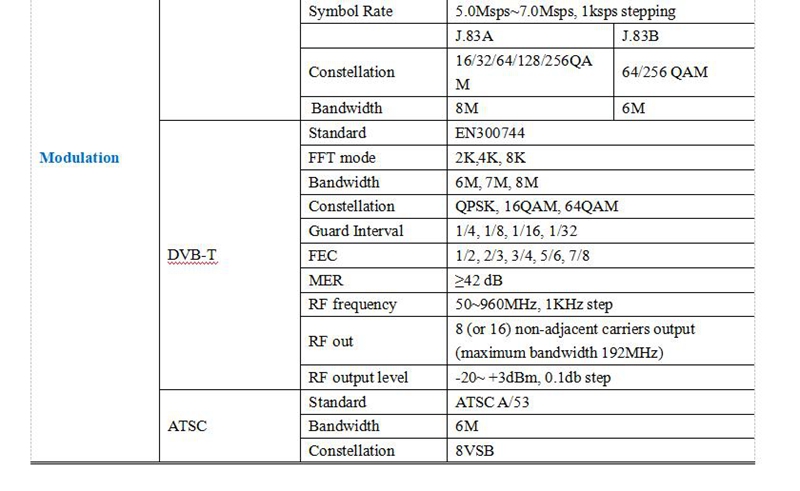

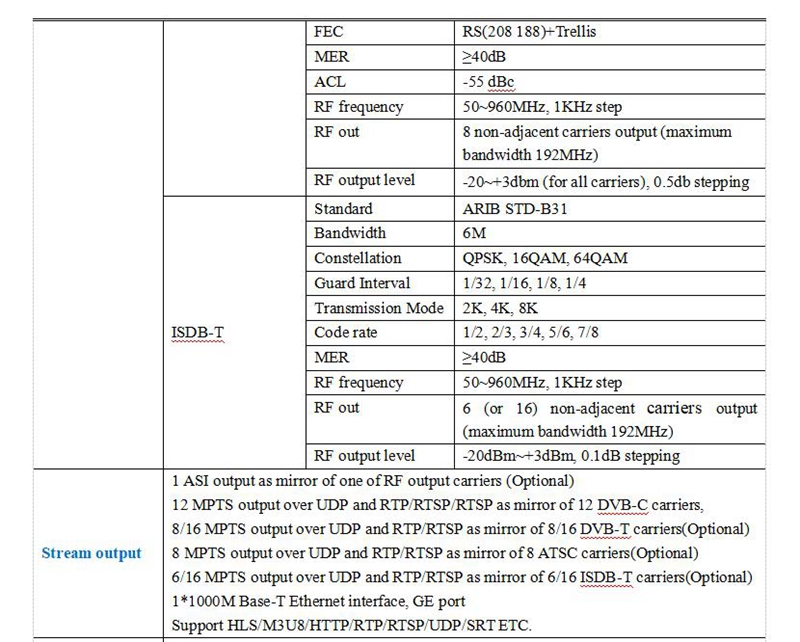

- Support for DVB-C/DVB-T/ATSC/ISDB modulator output .
- Support for 1 ASI out as mirror of one of RF output carriers---optional.

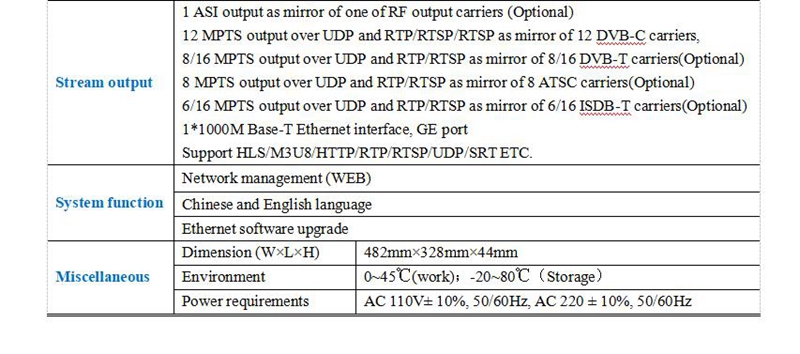

- Support for MPTS IP output over UDP, RTP/RTSP.

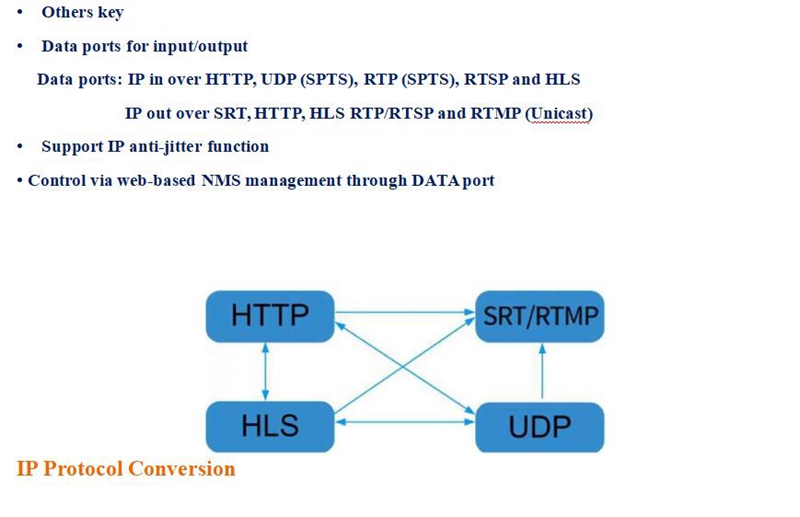

- Support for HLS/M3U8/RTSP/RTMP/SRT/HTTP IP output .
- Support for LOGO, Caption and QR code insertion.

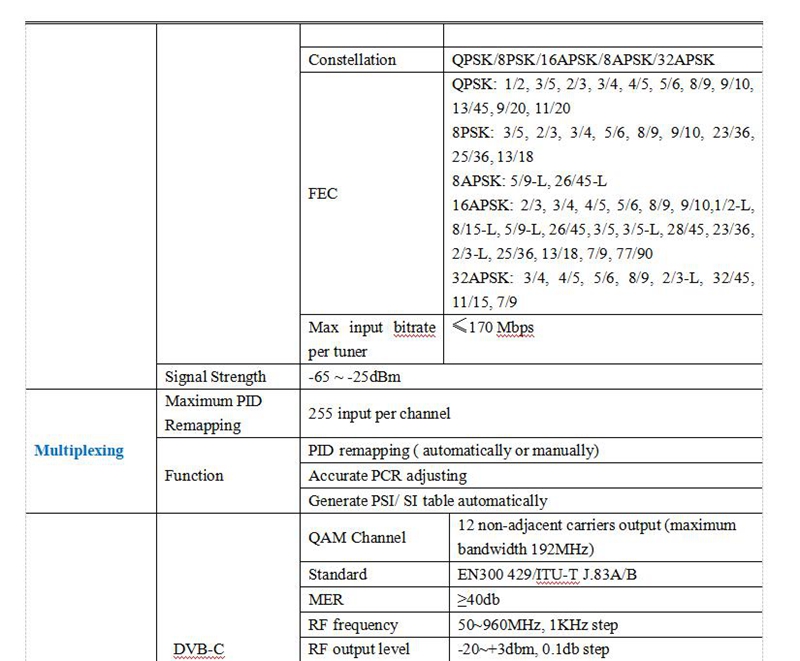

- Support for PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting.
- Control via web management, and easy updates via web.
Package Included:
- 1 x Encoder
