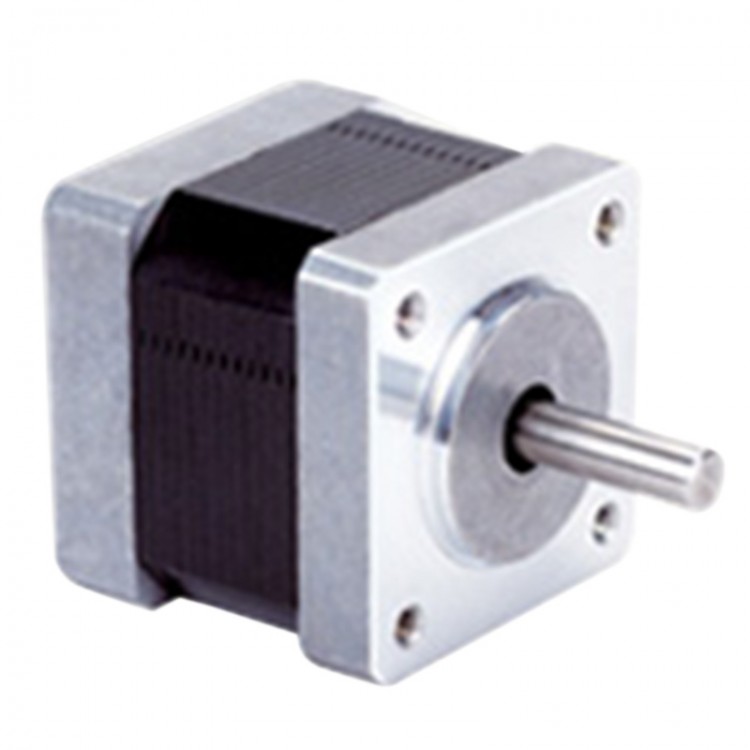

35HS2808A4 Mini Stepper Motor 0.8A 12N.cm 1.8 Degree CNC Stepping Motor
Specification:
- Step Angle: 1.8 degree
- Current: 0.8A
- Resistance:.5Ohm
- Inductance: 5mH
- Holding Torque: 12N.cm
- Detent torque:0.8N.cm
- Rotor inertia: 11g/cmxcm
- Body Length: 28mm
- Number of Leads: 4
- Weight: 120g
Technology condition:
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
Package included:
- 1 x Stepping Motor
