Product Description:
- Intelligent temperature control,dual adjustable design.
- Indutrial 35W continuously discharge load USB tester
- Real-time monitoring:voltage,current,capacity,electricity,power,timing,auto data storage power off
- Support QC2.0,QC3.0 data screen display
- Fan intelligent start stop temperature control about 45 degrees
- The load uses 40x40x20mm large fan copper single ball bearing,low noise,fast speed,strong wind,support continous 35W discharge.For long term dicharge or factory frequency aging testing.
- 6063 40x40x12mm aluminum radiator,fast heat conduction
- 4PCS interface can test USB charger current.
- Reserved DIY terminal can test digital devices(except USB)
Specification:
- Mode:J7-D2
- Voltage:3-21V
- Current:0-3A
- Size:100x48x33mm
- Weight:108g
- Input interface & output interface:positive and negative plug USB input port+clipping interface+fast charge port/current parallel free-wheeling interface
- Constant discharge current:0-3A(coarse adjusting knob 0-3A range,fine adjusting knob+/-0.2A);current working error:<=2%+3mA
- Continous rated discharge power:35W(If in 21V voltage,continuously discharge current<1.6A to avoid heavy load discharge tube)
- Intellignet temperature control start temperature threshold:55 degree(The fan auto switch on when temperature is above 55 degrees,it auto switch off when temperature is below 45 degrees)
- Fan speed:4010 large fan,rotation:2900/min;control chip:constant current chip
Package List:

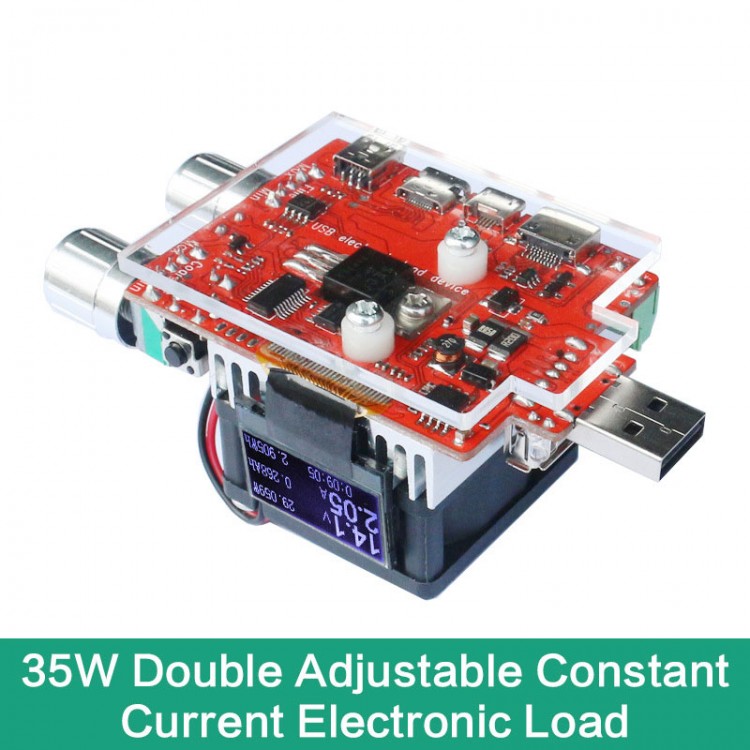

- 1 x 35W Double Adjustable USB Electronic Constant Current
