Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $104.07 | $101.94 | $98.76 | $94.51 | Contact US |

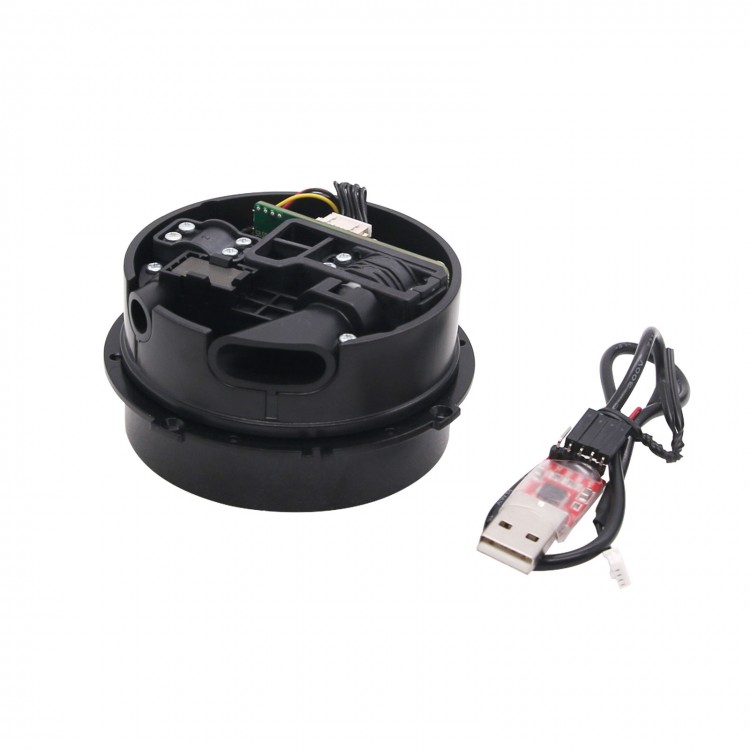

360° Lidar Sensor Scanner Laser Ranging Radar Module 8M 4K/s For Location Navigation LiDAR A0602
Features:
- 360° Lidar scanner.
- 8M detection radius.
- Sampling rate 4K/s.
- Reliable performance & long service life.
- Industrial-grade brushless motor enables low-noise operation and prolongs its life span.
- Driven by modulated pulse, low-power infrared laser is in line with Class I IEC Standard.
- Widely used in robotic SLAM location, obstacle avoidance, fast scanning in industrial field, environment scanning, mapping and path planning.
- It can be applied to shopping mall robots, domestic robots and hospital robots.
- It can be connected to your PC by USB module 3i LIDAR A0602. Plug to play, requiring no coding. With serial and USB interfaces, open source SDK and tools, it fits ROS.
Specifications:
- Detecting Range: 0.13m-8m (White Wall)
- Sampling Rate: 4K/s
- Scanning Frequency: 6.2Hz
- Laser Wavelength: 780nm
- Laser Power: 3mW Max.
- Accuracy: <2%@5m
- Distance Coefficient of Variation: DCV< 0.2%
- Communication Interface: RS232 (TTL)
- Voltage: 5V
- Power Consumption: 1.5W
- Starting Current: 600mA
- Working Current: 300mA
- Baud Rate: 230400
- Weight: 175g±2g
- Levelness: 0°-1°
- Operating Temperature: 0℃ to 45℃
- Operating Humidity: <90%
- Working Illumination: <1000 lux
Communication & Interface:
- Working Mode: 8-digit data bits & 1-digit stop bit, without parity bit
- Baud Rate: 230400
- Output Low Level: <0.4
- Output High Level: 2.9-3.5
Development & Supported Devices:
- Development Kit: Support 3i LIDAR A0602 relevant tools
- Various Files: Data sheet, user manual, application manual and protocol range
- SDK & Demo: Fit for Linux & Windows
Package Included:
- 1 x LiDAR A0602 Module
