3650 4370KV 4P Sensorless Brushless Motor with 45A Brushless ESC for 1:10 RC Off-Road Car

Availability: In stock, usually dispatched in 1 business day

  • Price:$43.12
  • Price in reward points: 431 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $42.26 $41.40 $40.10 $38.38 Contact US
Quantity:

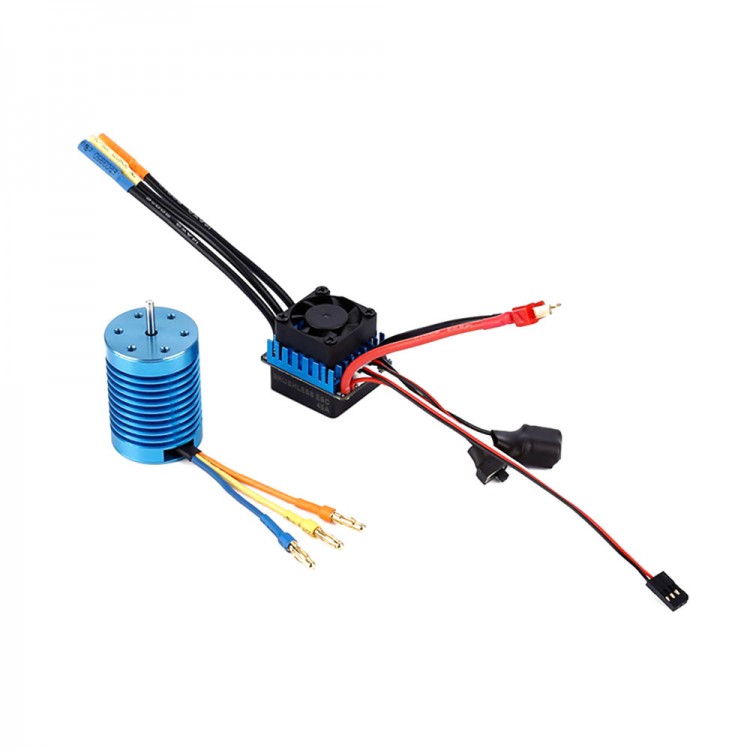

3650 4370KV 4P Sensorless Brushless Motor with 45A Brushless ESC for 1:10 RC Off-Road Car

Description:

The set includes a 3650 4370KV 4P Brushless Motor and a 45A brushless Electric Speed Controller(ESC), which is perfect for the 1/10 RC Off-Road Car. This 3650 4370KV 4P Brushless Motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. And it's with high quality aluminum alloy parts that are produced on the latest CNC milling machines. Additionally, the 45A brushless ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity.

Motor Features:
- 4 poles Hi-torque motor design.
- CNC machined 6061 T6 billet alumium heatsink can.
- High purity copper windings maximizes efficiency.
- High RPM ABEC5 oversized bearings.
- Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.35mm) laminations.
- Removable/replaceable.
- Precision engineered for maximum energy conversion.
- ROAR legal.

Specification:
- RPM: 4370KV
- Max Current: 66A
- Max Watts: 820W
- Can Size: 3650
- Sensored: No
- Can Diameter: 36mm
- Can Length: 50mm
- Shaft Diameter: 3.175mm
- Shaft Length: 15mm
- Bullet Connector: 4mm
- Weight: 146g/5.2oz
- Max voltage: 7.4V(2S)-11.1V(3S)

Note: there's some little error from human measuring.

Electric Speed Controller Features:
- Compatible with sensorless brushless motors.
- High anti-interference capability.
- Using advanced software interface to set up or update the software.
- Super smooth and accurate throttle linearity.
- Fast response to throttle input.
- Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.

Specifications:
- Cont. Current: 45A
- Burst Current: 260A/10sec
- Battery: 2-3 Cell Lipo / 4-9 Cell NiMh
- SBEC: Yes
- SBEC Output: 5.8V/3A
- Power Supply Plugs: T Male
- Motor Plugs: Female 4mm Bullet Connector
- Size: 45*35*35mm(with out fan)
- Weight: 76g /2.7oz

Package list:
- 1 * 3650 4370KV 4P Sensorless Brushless Motor
- 1 * 45A Brushless ESC
