369 Pocket Instrument for Multifunctional Oscilloscope & Spectrum & Function Generator & PWM Signal & DC Bias in One
Description:

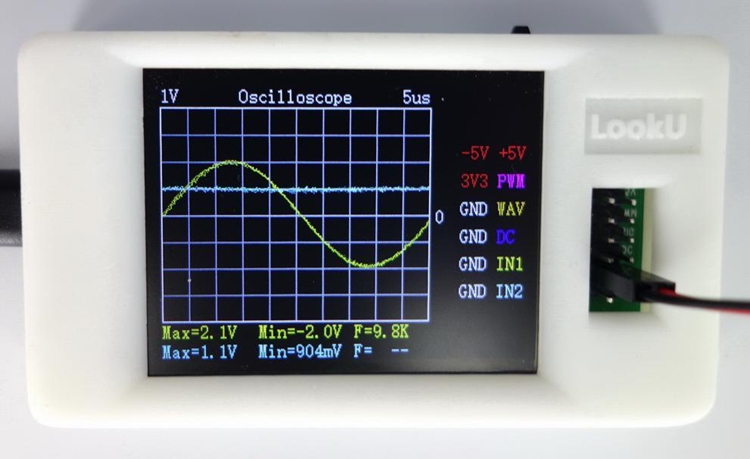

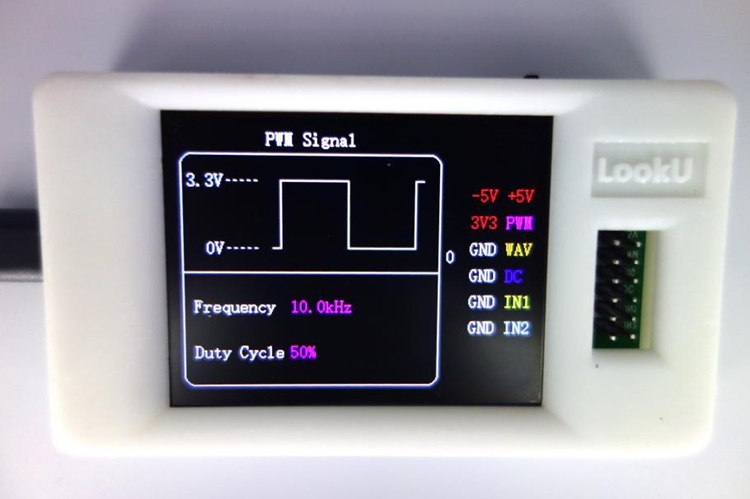

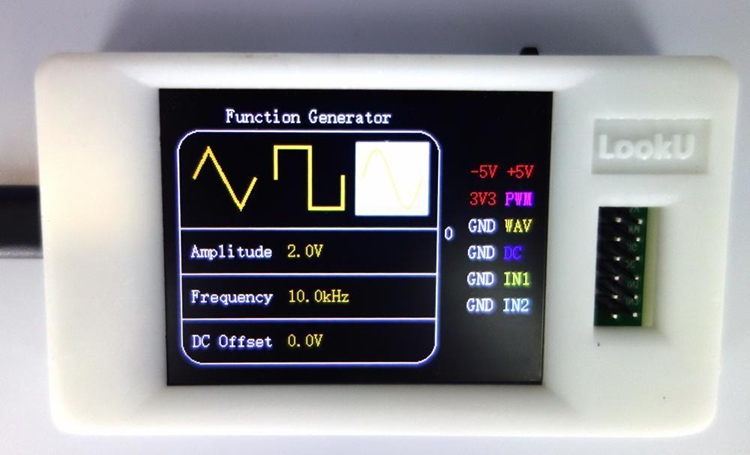

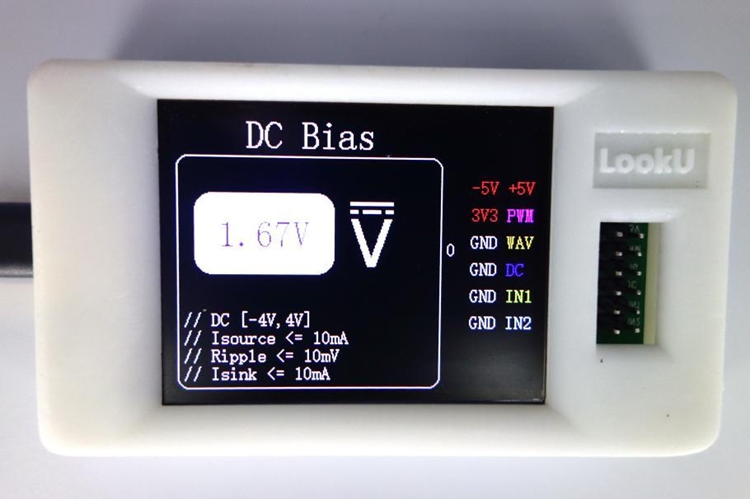

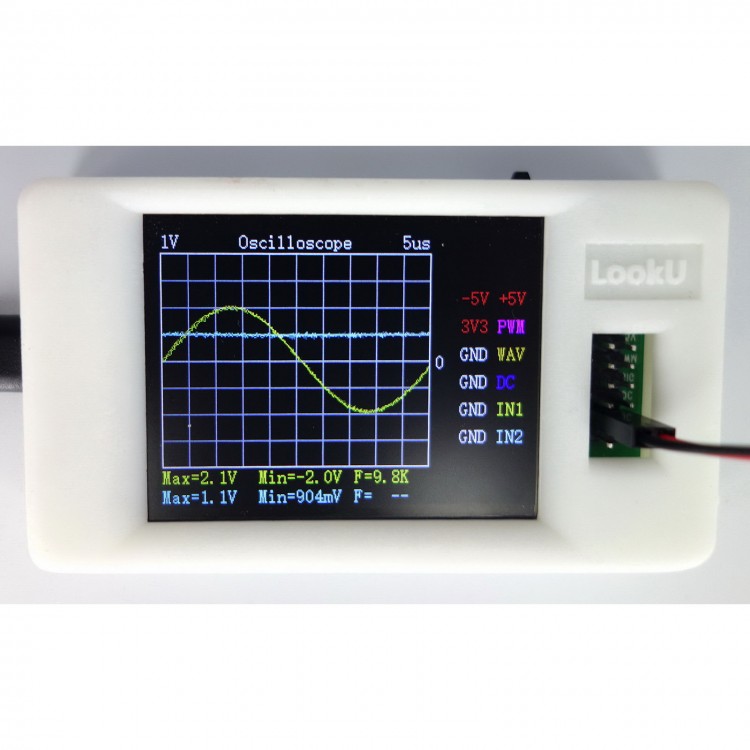

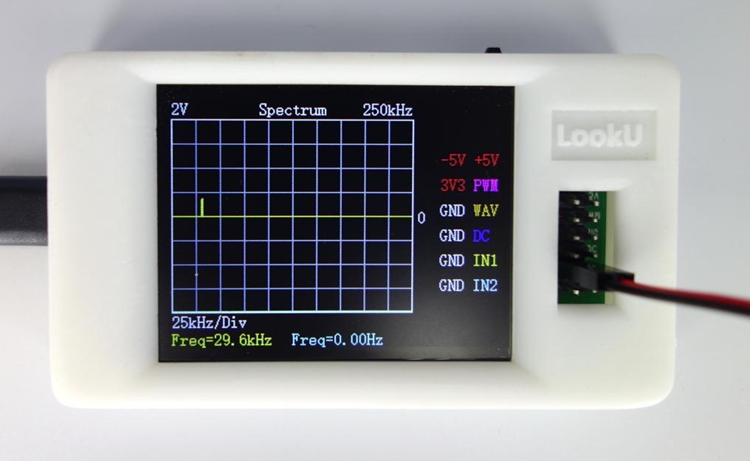

- 369 Pocket Instrument is a small multi-function USB instrument that integrates five functions of oscilloscope, spectrum, function generator, PWM signal and DC Bias. It integrates one analog signal output channel, two analog oscilloscope channels, and one high-speed digital output channel, which can be used to adjust PWM pulse duty cycle and one high-precision DC bias signal. The 369 Pocket Instrument uses a 320 x 240 pixel color screen to save volume and energy consumption. It can highly restore the collected measurement signals. Users can easily complete the analysis and measurement of analog, digital and other experimental circuits in their dormitories, homes and classrooms, and carry out digital and analog electronic experiments. It is a powerful, portable and cost-effective pocket laboratory.
Features:
- Mini size and light weight
- It covers the conventional instruments in the electronic laboratory with accurate measurement data.
- There is no need to connect to an external computer to measure data.

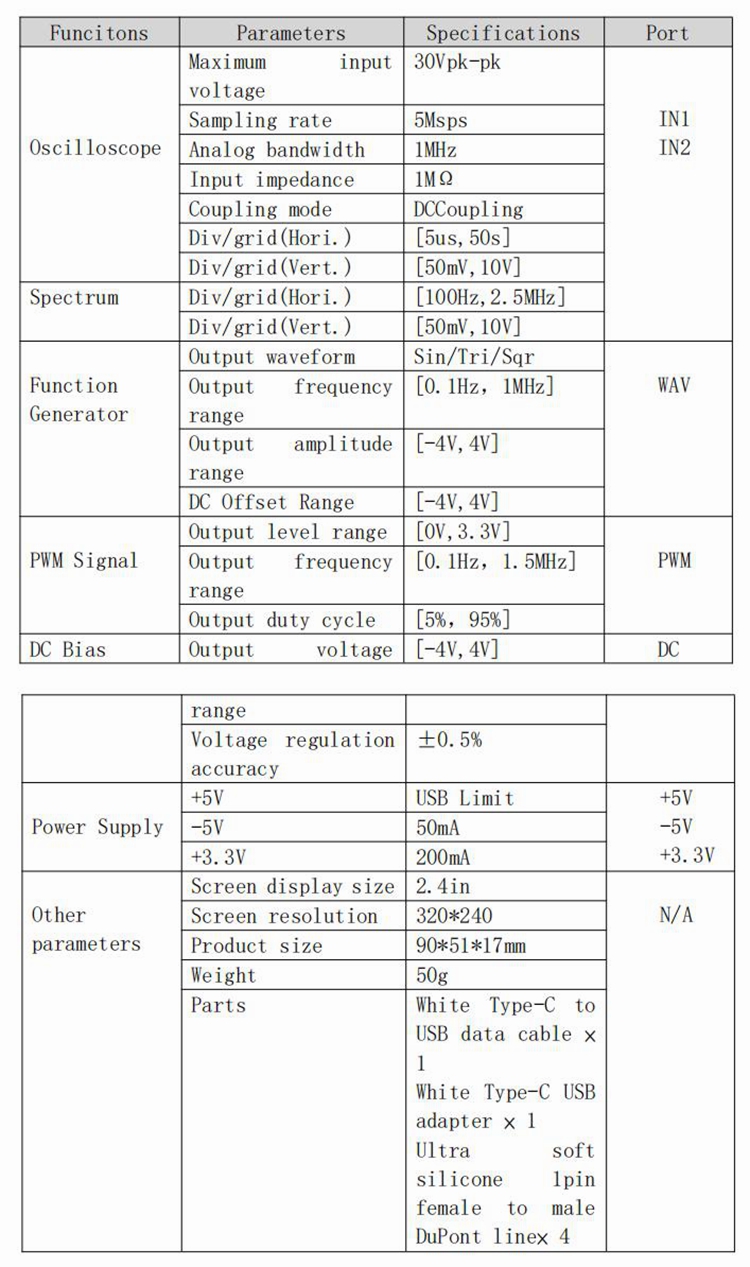

Parameter:
- Size: 90 x 51 x 17mm
- Screen display size: 2.4 inch
- Screen resolution: 320 x 240
- Weight: 50g
Package Included:
- 1 x Host
- 1 x Set of Cables
