Specification: Motor Brush Controller for Electric bicycle & scooter
- Rated voltage: dc 36 v
- Current limit: 28A
- Rated power: 800 w
- Matching motor: DC brushed motor
- Under Voltage Protection: 31.5V

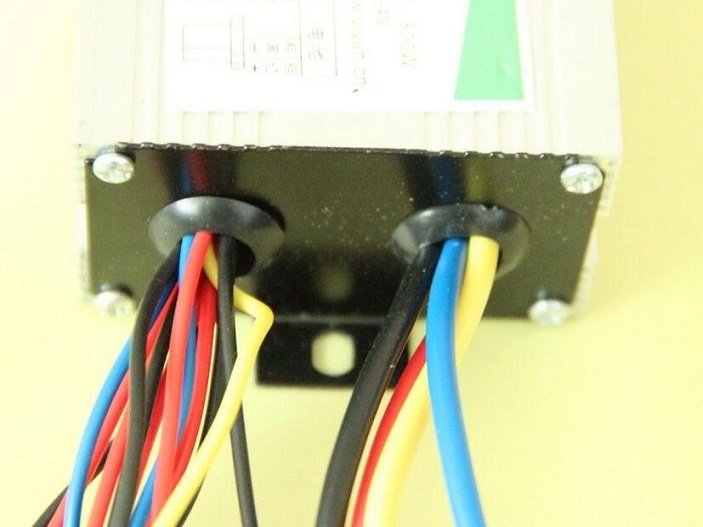

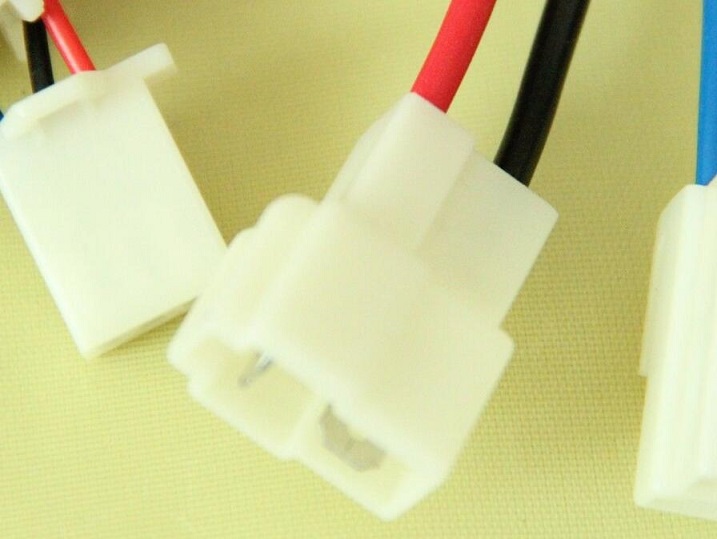

Wires Interface Definition:
- Battery:Thick Black (Power Negative)/Thick Red(Power Positive)
- Motor:Thick Yellow (Motor Negative)/Thick Blue(Motor Positive)
- Ignition Switch:Thin Red(VCC)/Thin Blue
- Indicator: Thin red (Indicator power output)/thin black(indicator negative)
- Brake:thin yellow (Brake signal)/thin black(Negative Power)
- Speed governor:Thin blue(Speed handlebar Signal input)/Thin black (Negtive Power)/thin red(5V Positive Power)
- Charge Port: Thin red (charge input power Positive)/thin black (Power negative)

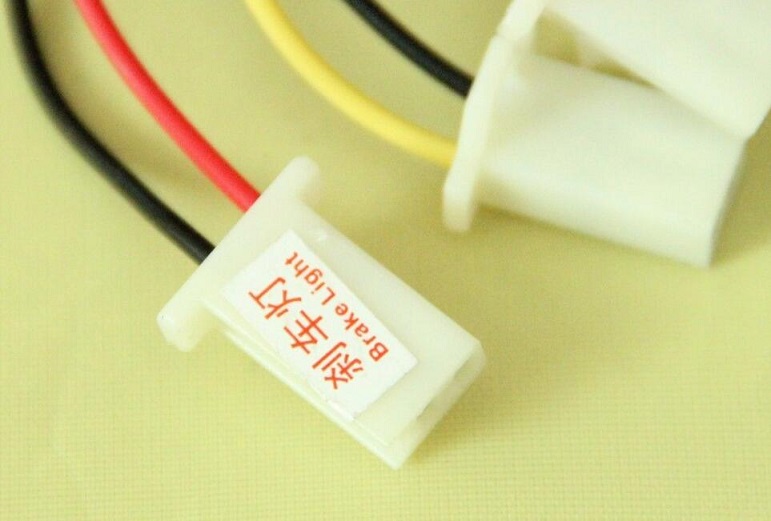

- Brake Light: Thin red (power Positive)/thin black (Power negative)
Package List:
- 1 x 36V 800W motor brush controller
