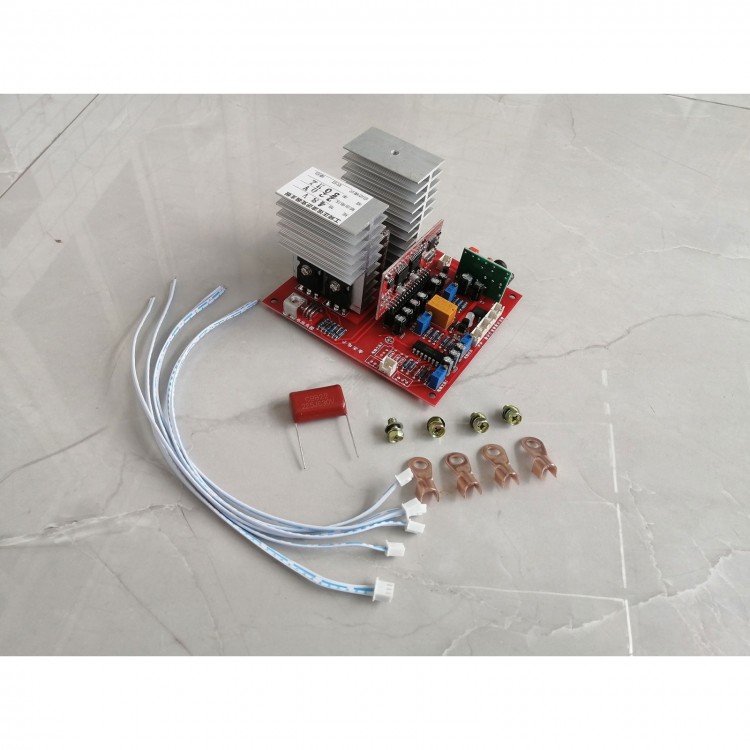

36V1200VA Low Power Frequency Sine Wave Inverter Motherboard PCB Circuit Board Sine Wave Inverter Power Board
Power Frequency Sine Wave Inverter Motherboard Transformer Configuration:
- 12V battery power supply: about 6.5V (6-7V)-220V transformer
- 24V battery power supply: about 13V (12-13V)-220V transformer
- 36V battery power supply: about 19.5V (18-21V)-220V transformer
- 48V battery power supply: about 26V (24-28V)-220V transformer
- 60V battery power supply: about 32.5V (30-35V)-220V transformer
- 72V battery power supply: about 39V (36-42V)-220V transformer
- 84V battery power supply: about 45.5V (42-49V)-220V transformer
- 96V battery power supply: about 52V (48-56V)-220V transformer
- Note: This configuration is a standard configuration in China. If other output voltages (such as 110V) are required, the high-voltage winding of the transformer should be configured according to other voltages.
Package Included:
- 1 x Motherboard
