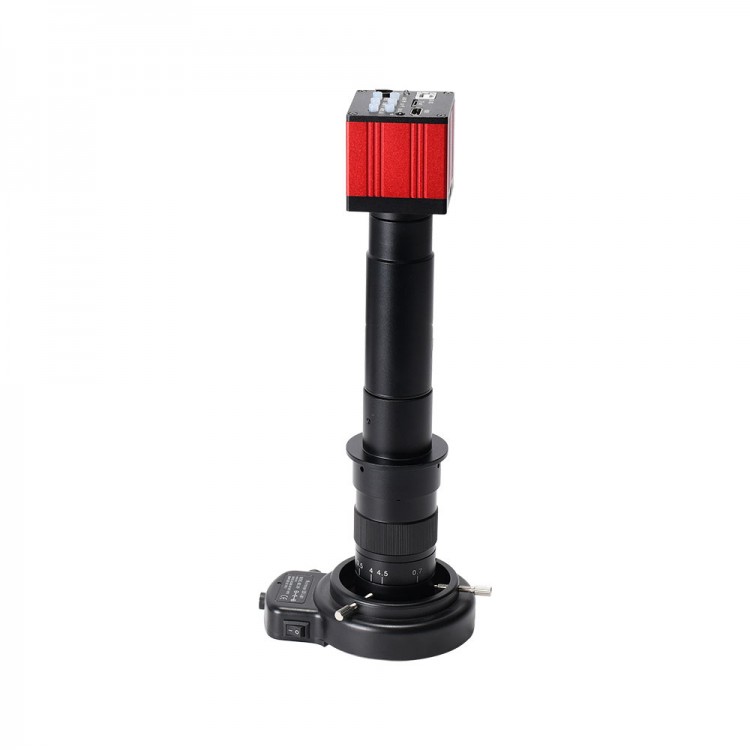

37MP Microscope Camera USB Camera With 300X C Mount Lens 144-LED Ring Light For PCB Welding

37MP Microscope Camera USB Camera With 300X C Mount Lens 144-LED Ring Light For PCB Welding

Features:
1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.
2. Especially suitable for observing the surface microstructure of large objects
3. Using highquality materials, strong and durable, has a long service life
4. HD camera with 37 megapixel for CMOS sensor 1/2.3 inch, with HDMI USB port
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind

Specifications:
- Item Type: Microscope Camera
- Module: 2037
- Sensor: 37MP for CMOS
- Optical Format: 1/2.3 inch
- Pixel Size: 1.335μm x 1.335μm
- Interface: HDMI (Type A). USB (Type B). Small memory card
- HDMI Image Resolution: 37MP
- Video Resolution: 2K at 30FPS, 1080p at 60FPS
- HDMI Resolution: 1920 x 1080p 60FPS
- HDMI Scale: Support 4:3, 16:9, 16:10 screen
- USB2.0 (Drive Free): 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 370 at 30FPS
- Small Memory Card: Up to 128GB (not included)
- AWB: AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual. AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port

300X C Mount Lens:
- Working Distance: Approx. 95mm / 3.7in
- Zoom C mount lens
- 1X Type C adapter
- Scaling Ratio: 6.5:1
- Objective lens magnification 0.7-4.5X (approximately 10-300X on the screen)
- Size (L x DIA.): Approx. 240mm x 50mm / 9.5 x 2in (300X maximum working distance approx. 10cm / 4in)
- Provides strong and concentrated shadow-free lighting

144-LED Light:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadowless lighting
- 100,000 hours of life
- Power Input: 100-240V, 50-60HZ, automatic switching
- The Inner Diameter of The ring Light: Approx. 27mm / 1.1in
- Overall Outer Diameter: Approx. 45mm / 1.8in
- Working Distance: Approx. 27 ~ 120mm / 1.1 ~ 4.7in

Problems & Solutions:
LCD no video or flickering
1. Check the power supply. Check if the red LED lights up. Press Power Key to move it up.
2. Check the lens cover. Increase lighting.

LCD has black bars and image distortion
1. Change the resolution of LCD
2. Change the camera resolution

Dirty spots
1.Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent

Package Included:
- 1 x Set of Microscope Camera

Note:
- Battery is not included. 1 x 2302 button battery is needed for the remote control.
