3Axis CNC Router Kit Nema 34 Stepper Motor 34HS1456 + Drivers DM860A Power Supplies Breakout Board

3Axis CNC Router Kit Nema 34 Stepper Motor 34HS1456 + Drivers DM860A Power Supplies Breakout Board

Package Included:
- 3 x Stepper Motors 34HS1456, 5.6A, 1232 oz.in, 4 leads, bipolar
- 3 x Stepper Motor Drivers, 7.8A, 256 Micsteps, replacing M860
- 3 x Power Supplies 350W-48V DC/7.2A
- 1 x Breakout Board

Detailed Information:

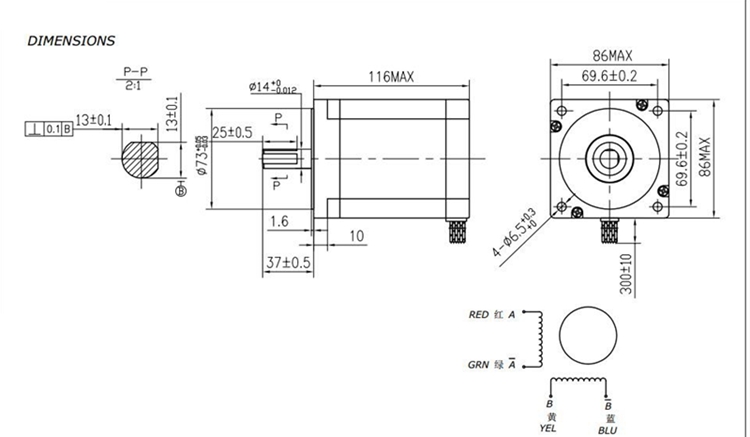

1. Nema 34 Stepper Motor:
Technical Specifications:
- Part No.: 34HS1456
- Frame Size: NEMA34
- Step Angle: 1.8 degree
- Voltage: 3.08V
- Current: 5.6A/phase
- Resistance: 0.55 Ohm/phase
- Inductance: 5.5 mH/phase
- Holding torque: 8.4N.m, 1200oz-in
- Rotor inertia: 2700g-cm2
- Number of wire leads: 4
- Weight: 3.8 kg
- Length: 116MM


2. Stepper Motor Driver DM860A
Introduction:
DM860A is a type of two-phase hybrid stepping motor driver. The drive voltage of which is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 8.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM860A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.

Features:
- High performance, low price
- Average current control, 2-phase sinusoidal output current drive
- Supply voltage from 24VDC to 80VDC
- Opto-isolated signal I/O
- Overvoltage, under voltage, overcorrect, phase short circuit protection
- 14 channels subdivision and automatic idle-current reduction
- 8 channels output phase current setting
- Offline command input terminal
- Motor torque is related with speed, but not related with step/revolution
- High start speed
- High hording torque under high speed

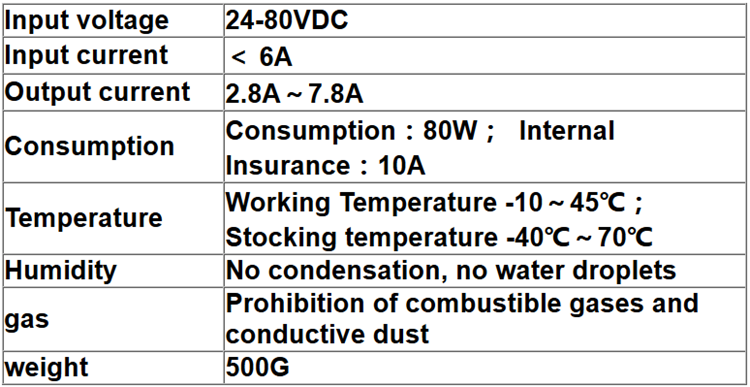

Electrical Specifications:


Pins assignments and description:

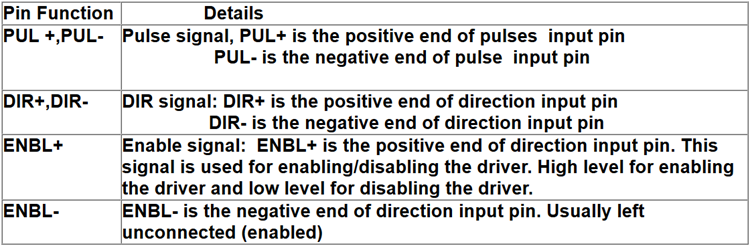

1) Connector Pins Configurations:

2) Pins wiring diagram:
PC’s control signals can be active in high and low electrical level. When the high electrical level is active, all control negative signals will be connected together to GND. When low electrical level is active, all control positive signals will be connected together to public port. Now give two examples( Open collector&PNP), please check them:

Fig 1. Input port circuit (Yang connection)    PC open connector output
Fig. 2 Input port circuit ( Yin connection)       PC PNP output

Note: When VCC=5V, R=0
     When VCC=12V, R=1K, ＞1/8W
     When VCC=24V, R=2K,＞1/8W
R must connect in the control signal part.

3. Function choice (Using DIP pins to achieve this function)

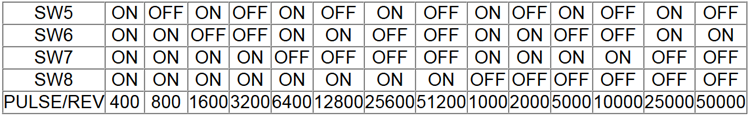

1) Micro step resolution is set by SW 5,6,7,8 of the DIP switch as shown in the following table:

2) Standstill current setting
SW4 is used for this purpose. OFF meaning that the standstill current is set to be half of the selected dynamic
current and ON meaning that standstill is set to be the same as the selected dynamic current.

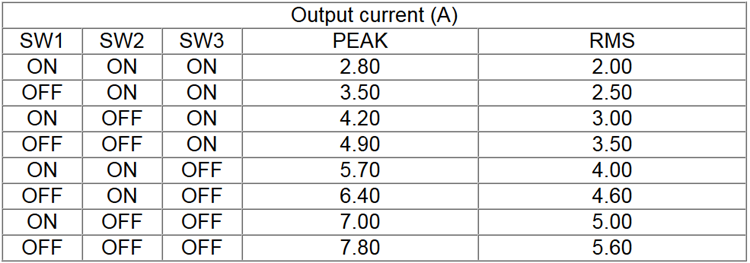

3) Output current setting:
The first three bits (SW 1, 2, 3)of the DIP switch are used to set the dynamic current. Select a setting closest to your motor’s required current

4) Semi-flow function:
Semi-flow function is that there is not step pulse after200 ms, the driver output current automatically reduced to 40% of rated output current, which is used to prevent motor heat.

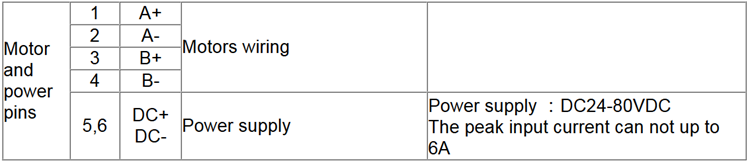

4. Pins of motor & power:


3. Power Supply:
- The power of this power supply is 350Watts, and the output voltage/current is 48V.

4. Breakout Board:
- Built in DB25 male connector.
- DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
- DB25 Input Pin: P10, P11, P12, P13, P15.
- DB25 GND Pin: P18-P25.
- Power supply: +5V DC.
- Built in C-class Optical-coupler.
- High quality with Surface-mount Tech.
