3Axis CNC Router Mini Laser Engraver Wood PCB Milling Engraving 775 Motor Kit Unfinished No Laser

3Axis CNC Router Mini Laser Engraver Wood PCB Milling Engraving 775 Motor Kit Unfinished No Laser

Description:

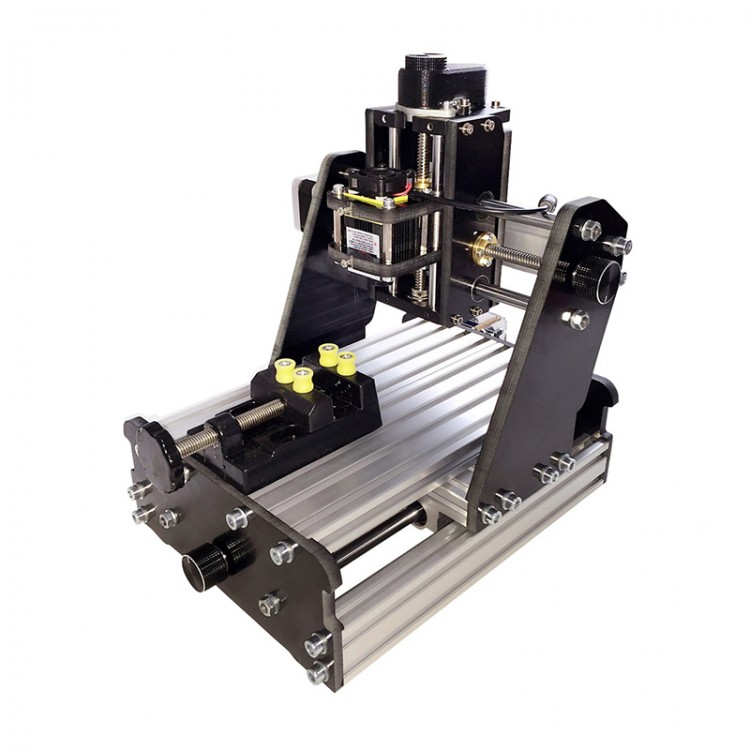

Do you always dream of having a CNC router not that large as the industrial type but just one can placed on the normal desktop to do the some little creative carvings. While you can own the one you want at here. It is built with high quality bakelite and aluminum, equipped with T8 lead screw, customized 775 spindle motor with high rotary speed up to 8000RPM.It can meet your commonly engraving or milling demands such as wood engraving, PCB making etc.

Specifications:
- Type: 3 axis CNC milling machine
- Working Area: 150 x 100 x 50mm/5.91X3.94X1.97inch (L*W*H)
- Machine Size When Assembled: 300 x 230 x 300mm (L*W*H)
- Power Supply: DC12V 5A
- Axis: X, Y, and Z
- Spindle Motor Type: 775 motor
- No-Load Speed: 8000RPM
- Accuracy: 0.1mm

Features:
- Large 3 axis desktop CNC milling machine
- Equipped with high quality bakelite frame, T8 lead screw and 775 spindle motor, high accuracy and power enough to do wood carving work
- Equipped with three 42 type stepper motor with A4988 driver, providing the enough power and high precise for daily use
- The maximum engraving area is 150 x 100 x 50mm/ 5.91X3.94X1.97inch(L*W*H); you can use it to do the small engraving or milling works such as PCB design or wood carvings
- Compatible with 3.175mm shank CNC drill bits
- Each stepper motor equipped with the handwheel easier to move the three axis position manually
- USB port connecting design with Grbl Controller (for CNC milling) and CNCC(for laser engraving) software for easy operation, compatible with all Windows system(for windows XP/7/8/10)

Package Included:
- 1 x Set of Unfinished CNC Laser Engraver Kit
- 1 x Power Adapter
- 1 x Data Cable
- 2 x Wood Plates
- 1 x Hexagon Wrench

Note:
- Self-assembly is needed!
- It is not for commercial uses, mass production, or engraving metals.
