3D 3 Axis PTZ Joystick PTZ Controller Keyboard RS485 PELCO-D/P W/LCD Display For Analog Security CCTV Speed Dome PTZ Camera

Availability: In stock, usually dispatched in 1 business day

  • Price:$58.98
  • Price in reward points: 590 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $57.80 $56.62 $54.85 $52.49 Contact US
Quantity:

3D 3 Axis PTZ Joystick PTZ Controller Keyboard RS485 PELCO-D/P W/LCD Display For Analog Security CCTV Speed Dome PTZ Camera


Surveillance 3D PTZ Joystick Controller

  •     Photoelectric in RS485 controlling mode, strong anti-jamming and long-distance transmission (1200 meters max ).
  •     Control up to 128 units, each unit can be set 1-255 addresses.
  •     Variable speed operation can be applied to the built-in Pan/tilt of camera.
  •     Can control the lens zooming,focus and iris.
  •     Easy to set and run the preset positions and tour group.
  •     Easy to set the left and right limiting positions and run the scan between them.
  •     Home(default) position can be set up,activated and closed by the controller.
  •     Built-in HIKVISION, DAHUA, HANBANG DVR control protocols.
  •     Built-in Pelco-D, Pelco-P, Samsung, PANASONIC PTZ camera communication protocols.



Technical Data of controller
Power supply DC12V 1A Relative Humidity <=90%RH
Power adapter provided AC110V or 220V(±10%) switch to DC12V 1A Temperature Operation -10 to 60°C
Baud rate of communication 2400/4800/9600 BIT/S range for camera address 1-255
Communication connection mode RS-485 bus mode for controlling units Dimension 235(L) × 125(W) × 90(H)mm
Max controllable Cameras 128 units PTZ cameras or Decoders etc terminal devices Built-in multi- protocol

Pelco-D, Pelco-P, Samsung, PANASONIC

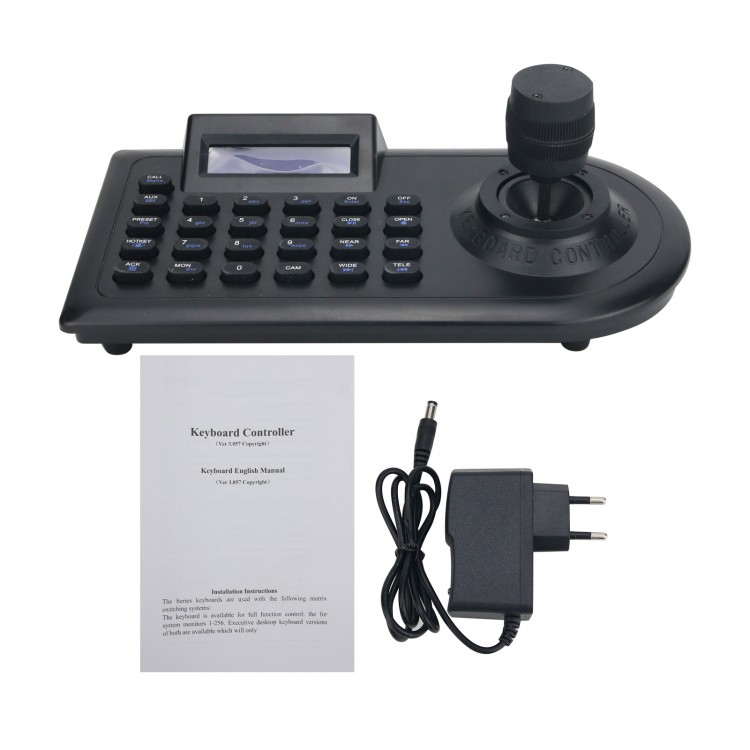

Package Inlcude:

  • 1 x 3D keyboard controller
  • 1 x power supply
  • 1 x user manual
