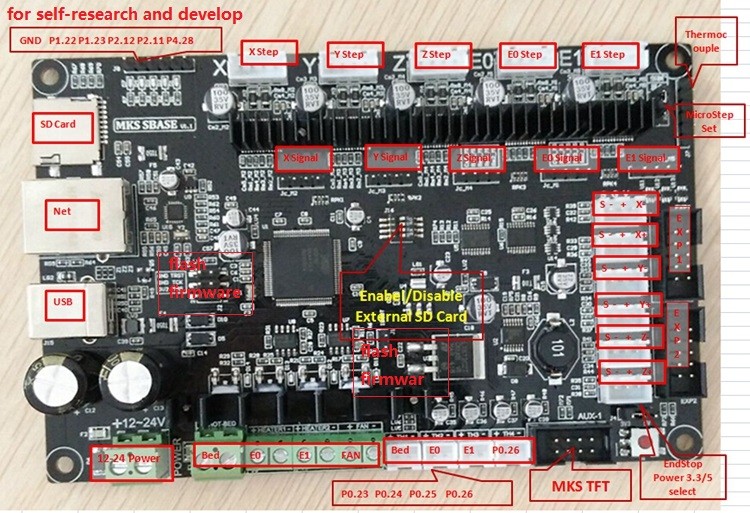

Overview
- MKS SBASE is a latest  motherboard for 3D Printer ,designed by Makserbase (MKS).
- It is based  on ARM platform and uses  32bit 100M Cortex-MS MCU-LPC1768.

Respect to MKS SBASE V1.0 :
MKS SBASE V1.2
- Fix temperature problem.
- Add thermocouple Pins( can't be used with 12864lcd together).

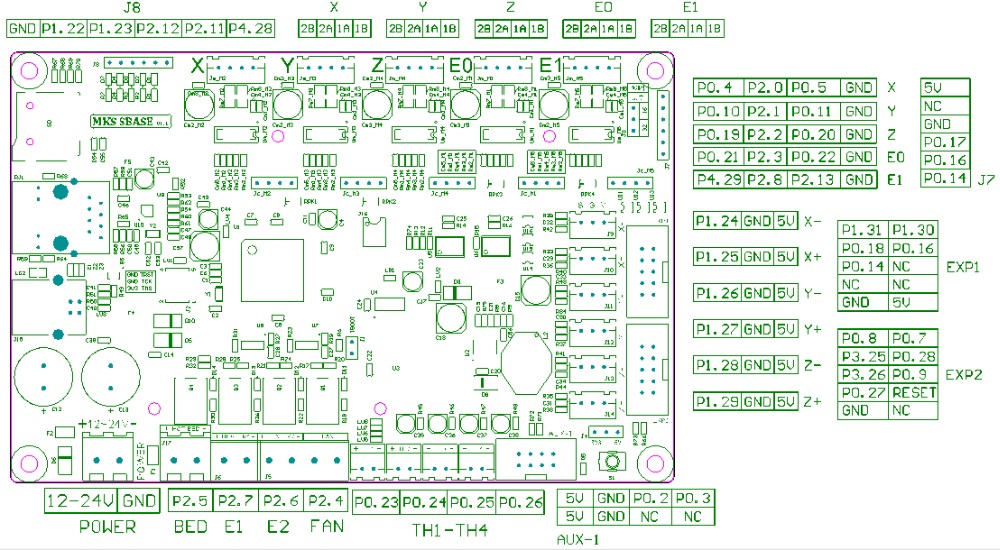

- Create some pins P1.22 P1.23 P2.12 P2.11 P4.28 for further developing.
- Extend  3.3V / 5V for endstops power.
- Preassemble  two big heatsinks.

Good News
- We improved Ethernet bug on MKS SBASE.
- We have changed the Crystal.
- We used QRA26B25.0000MFT2C2F instead of CSTCE25M0V53-R0 ,replaced CSTCE12M0V53-R0 with QRA26B12.0000MFT2C2F .

Features
- Using 32bit 100M Cortex-M3 MCU-LPC 1768, and improve its performance highly.
- Support highly modular open source firmware , easy for secondary development.
- Support network function, then  proceed remote control via IE Explorer.
- Using DRV8825 stepper driver which supports 32-microstep and with excellent cooling.
- Currents of the stepper motor can be set directly, which can avoid the damage .
- Using high quality FR-4 4 layers PCB and special design for cooling.
- Using professional power chip, support 12V-24V DC input.
- Good to work with LCD12864 and MKS TFT touch screen.(Can't work with OLED12864 and LCD2004 display.)
- N.W.: 0.2Kg

Shipping list:
- 1pcs * MKS SBASE  V1.3
- 1pcs * USB
