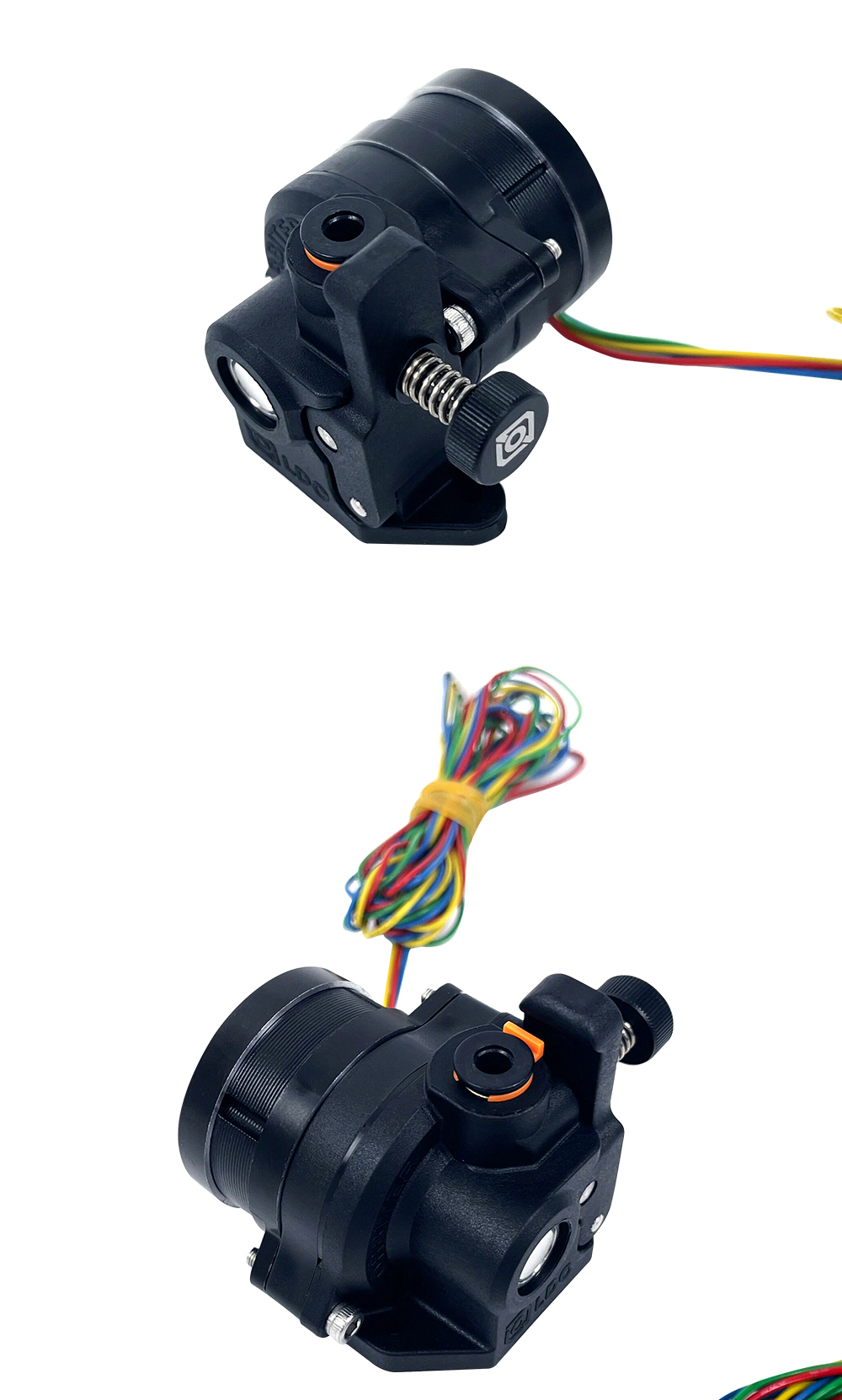

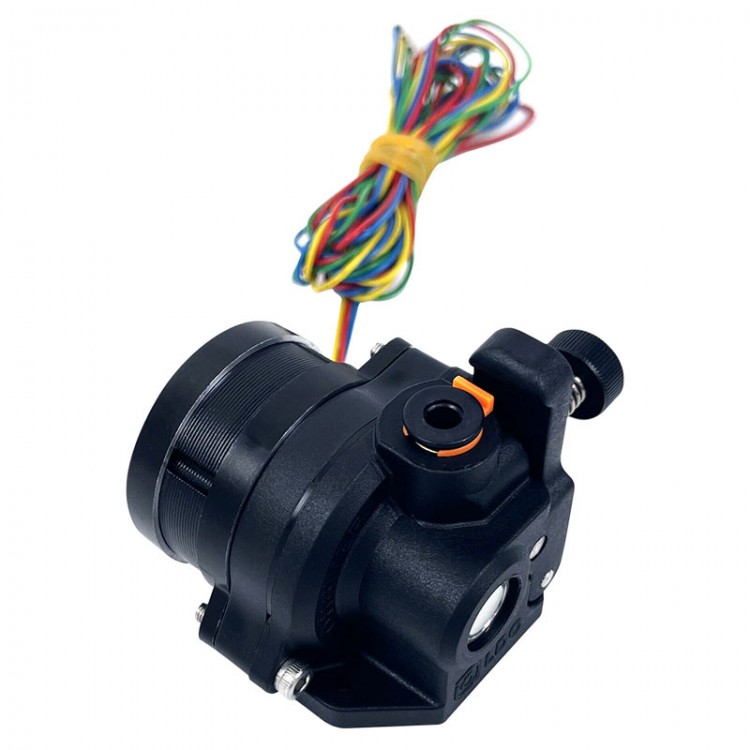

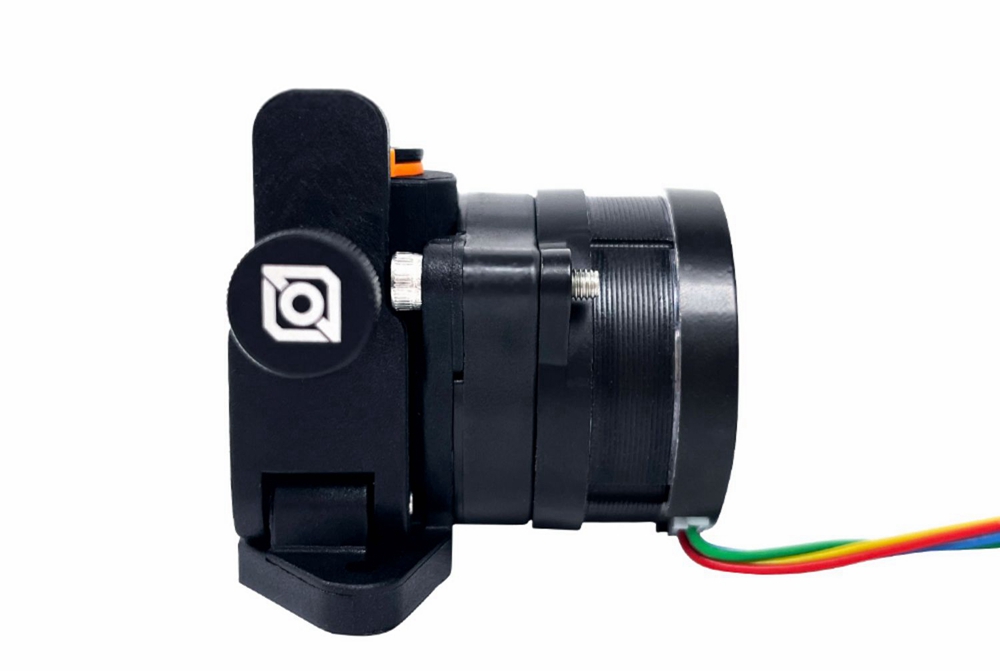

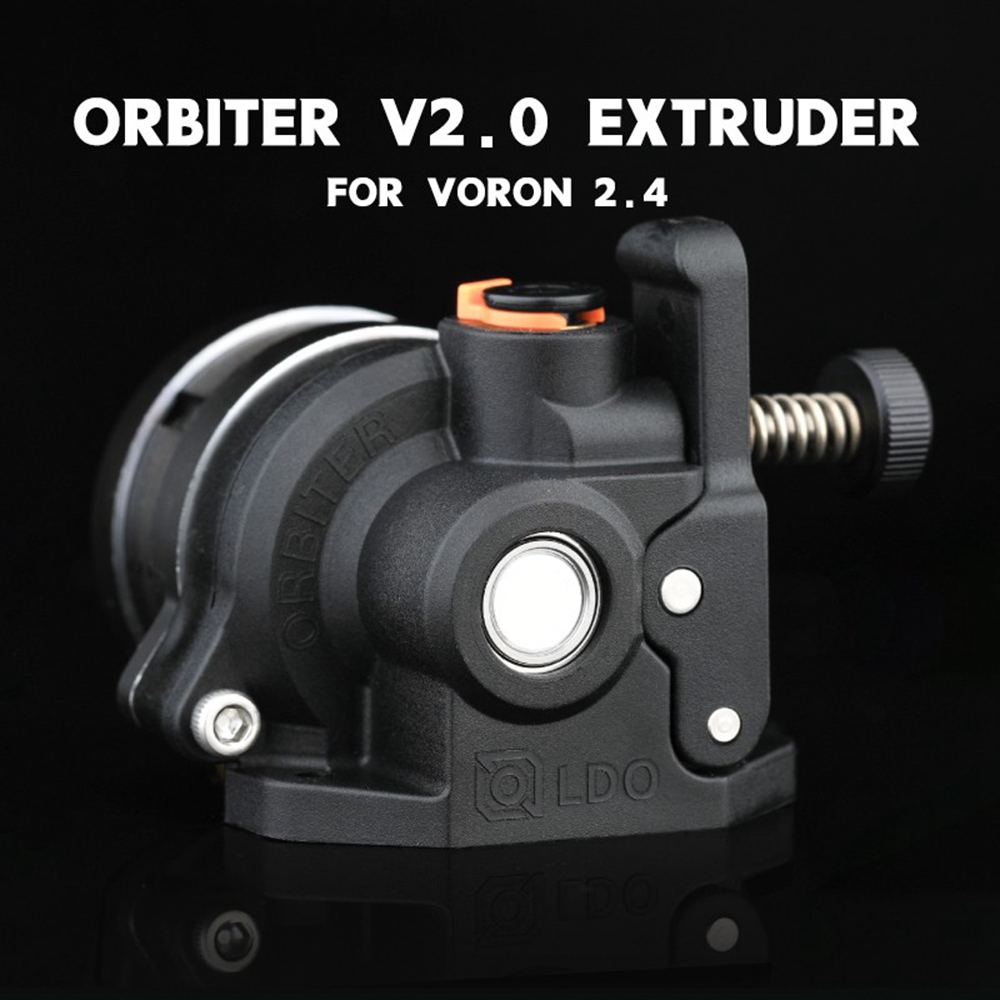

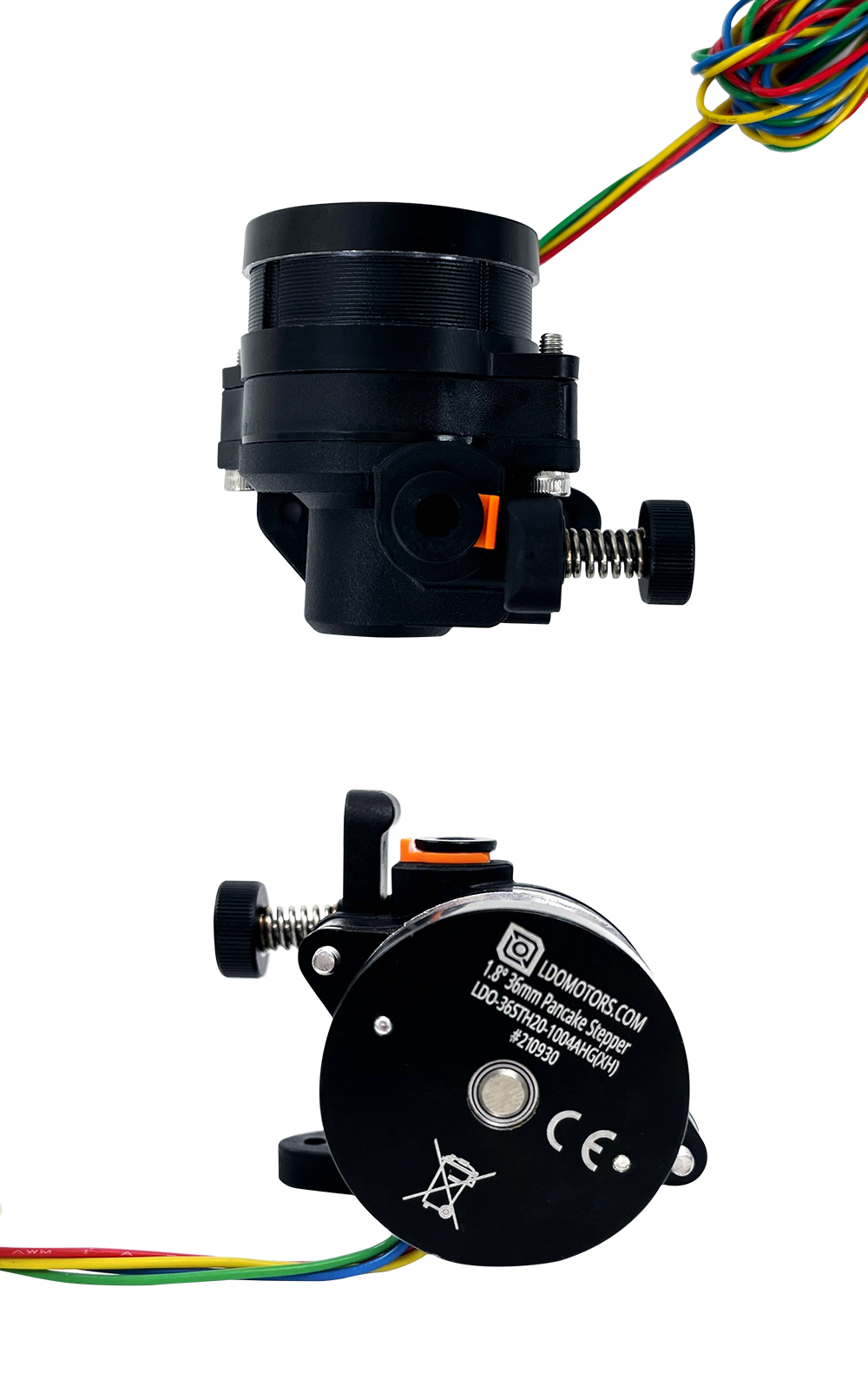

3D Printer Extruder Apply to Voron2.4 3D Printer Accessory with High Temperature Resistant Shell for LDO Orbiter 2.0
Features:
- For Bondetech shorter hardened drive gear, 11mm and 15mm
- Weight reduced to about 135g
- Smaller and more compact size (11.6% shorter)

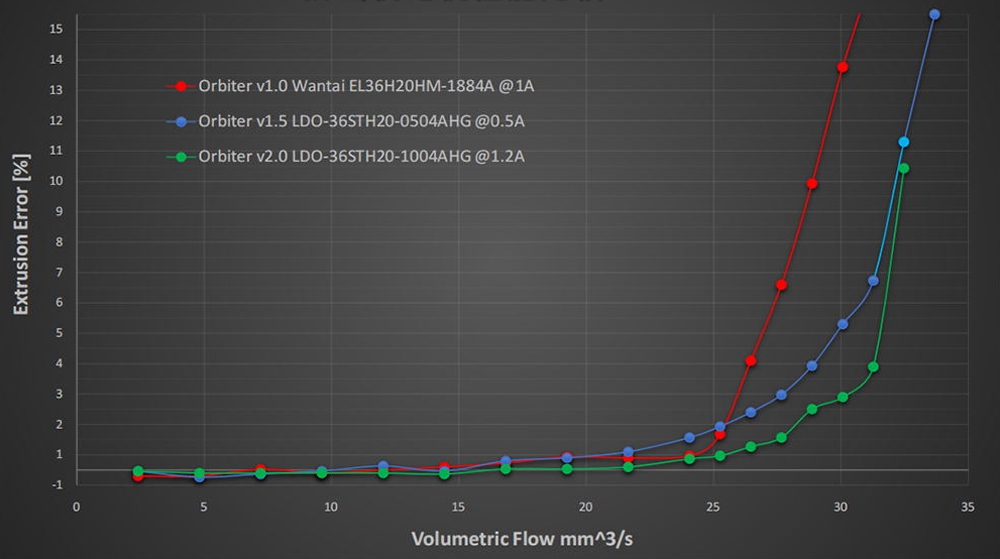

- The new appearance design can improve the extrusion force by about 40% under actual printing conditions, and greatly improve the acceleration performance
- Dual drive gear - consumable path closer to the center of the extruder for a more balanced design for Delta printers
- Stainless steel consumable outlet guide with 0.2-0.3mm clearance for driving gear for the best TPU printing experience and extreme wear resistance when using abrasive consumables.
- High temperature resistant shell (hardness: GPA12)
- Design of tensioning structure with bite screws
- The fixing screw is in line with the path of the consumable outlet - improving the rigidity of the housing and making it easier to install
- Aligned consumable path
- New smaller and more fashionable air pipe connector
- The motor position is rotated by an additional 10 degrees for easy maintenance and assembly
- Very low back clearance is about 0.06mm
- Consumable sensor adds auto load and unload button function
- There are more minor changes to improve mechanical accuracy and design appearance
Package Included:
- 1 x 3D Printer Extruder
