3D Printer Main Control Panel Generation 6 Electronics Control Board Motherboard Gen6 Sunhokey

Availability: In stock, usually dispatched in 1 business day

  • Price:$51.92
  • Price in reward points: 519 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $50.88 $49.84 $48.29 $46.21 Contact US
Quantity:

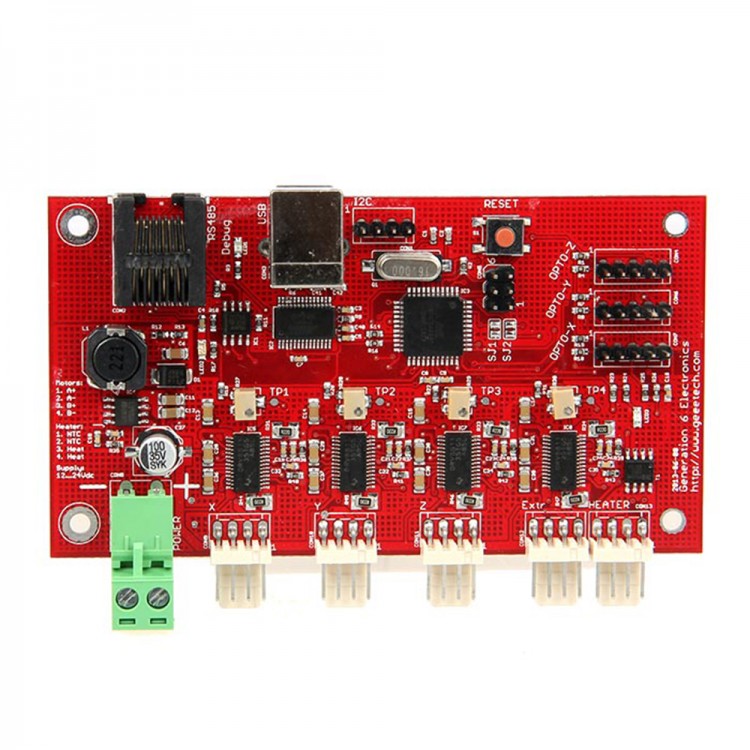

3D Printer Main Control Panel Generation 6 Electronics Control Board Motherboard Gen6 Sunhokey

Description:

Generation 6, or Gen6, can be described as a dedicated, Plug-&-Play, single board solution for FFF/FDM 3D Printers. It is designed to be professionally manufactured, with many small surface mount components, as opposed to Generation 7 which is designed to be printed on a Mendel(among other design goals).
Another major difference with other Gen6 electronics is that they use Texas Instruments DRV8811 chips to drive the stepper motors. This means they require firmware modifications from the normal Polulu-based electronics which use Allegro A4983 chips

- These electronics are a single board solution, so you don't need all those cables and one thick sheet and 4 reprap parts less.
- The bottom thick sheet (big one) does not add much rigidity, the front one is used for stiffness of the frame, not the bottom one.
- It has a standard USB connection (USB A>B cable needed)
- It uses micro-stepping (1/8) for quieter operation.
- It is cheaper than for example Makerbot\'s version of the RepRap Generation 3 electronics.
- It uses small standard Molex connectors for motors, heater, and optos.
- The pcb of the optos are integrated, so you only need the optos on cables with 5way Molex connectors

Hardware Features
- On-board USB-RS232 convertor
- Integrated hardware for driving one extruder (stepper, heater and thermistor)
- RS485 bus connector with the possibility to link through the extruder step and dir signals
- Integrated hardware for driving H21LOB or TCST2103 slotted optosensors
- High input voltage range: 12-24Vdc
- Use standard connectors with easy and clean installation
- Debug LEDs for power, communication and heater output
- Reset button

Specifications
- Dimensions 110x60mm
- Mounting grid: 100x50mm (4x M3)
- Input voltage 12-24Vdc
- On-board controller: ATmega 644p (Atmel Corp.)
- RS485 connector: RJ45
- Heat output: MOSFET output, 4A
- Thermistors input: 100K thermistor

Package included:
- 1 x Generation 6 Electronics Control Board
