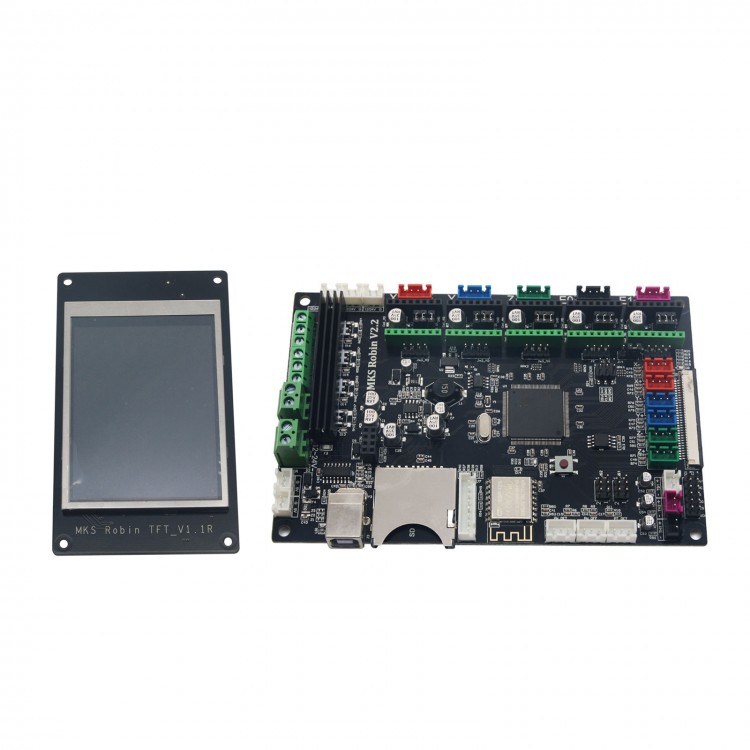

3D Printer Motherboard 32bit ARM with MKS Robin STM32 TFT Touch Screen Module for DIY

3D Printer Motherboard 32bit ARM with MKS Robin STM32 TFT Touch Screen Module for DIY

Product Description:
- MKS Robin is a customer base Independent researched product to meet the market demand.
Configure firmware method is more simple, and equipped with 3.2 inch TFT touch screen.The operation interface is simple.
- Firmware can be update easily through SD card and the user interface can be customized.It is suitable to take it as main control board for mass production 3D printing machine manufacturers.

Features and Advantages:
- The 32 bit high speed ARM chip is used as the main control chip;adopt self-Independent firmware
- Can be selected with 3.2 inch TFT touch screen, simple interface, high sensitivity;
- Upgrade firmware configuration through SD card , simple and convenient operation;
- Support the boot logo, custom user interface;
- Flexible motor driving seat can support 4988,8825 and a variety of line drive, and other support external drive to meet your various driving requirements;
- The circuit board adopts 4 layers high quality board, and do optimization processing special cooling;
- Use high quality MOSFET tube,better radiation effect;
- Use special power chip support 12V-24V power input;
- Can accept 24V input ,can decrease the hot bed current to 1/4 in the same system power.It can effectively solve the heating problem for heat pipe bed MOS;
- Considering stability, heat dissipation, ease usage, pass continuous printing reliability test;
- Support power outage continued printing (need additional modules), fracturing material detection

Main board parameters:
- Mode:MKS Robin
- Microprocessor:STM32
- Size:150mmx100mm
- Mounting hole dimension:142mmx92mm
- Input voltage:12v-24v;5A-15A
- Motor driver:4988,8825,2100 inline drive and external drive
- Temperature sensor interface:NTC100K
- Color touch screen:TFT2.8 inch;3.2 inch
- Supported printed files formates:G-code
- Supported machine structure:XYZ;delta;kossel;Ultimaker
- Recommend use software:Cura;Simplify3d;Pronterface;Repetier-Host
- Firmware update:SD card update

Special attention:
- Please confirm before and after the power of positive and negative or not, if the user is connected to the power source and burned, this type of problem we do not warranty.
- Please do not plug in the power of the motor or drive, easy to drive the burn

Note:No driver is required. You can use the common 4988, 8825, TMC2100 and other drivers

The latest firmware download: Click here

Package List:
- 1 x MKS Robin main board
- 1 x MKS Robin TFT touch screen
- 1 x 50CM USB
- 1 x 30CM FFC cable align
