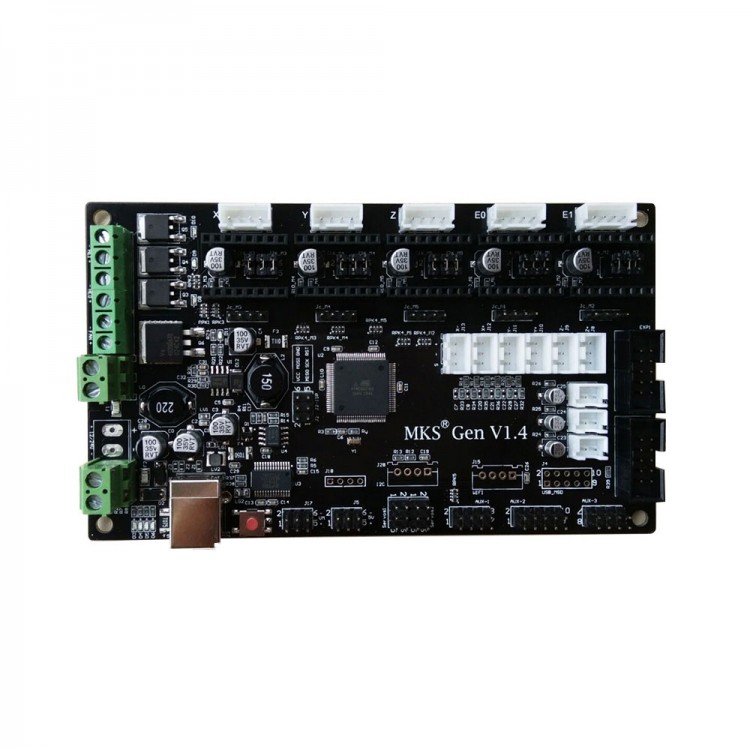

3D Printer PCB Controller Board MKS Gen V1.4 Mainboard Compatible Ramps1.4 Mega2560 R3 Support A4988 DRV8825 TMC2100

3D Printer PCB Controller Board MKS Gen V1.4 Mainboard Compatible Ramps1.4 Mega2560 R3 Support A4988 DRV8825 TMC2100

Overview
- MKS Gen is a feature rich all-in-one electronics solution for Reprap and other CNC devices.
- It features an onboard ATmega2560. Its five motor outputs are powered by Pololu pin compatible stepper drivers.
- The board features a developer friendly expansion port supporting giving access the same as Ramps1.4.
- MKS Gen is designed to be flexible in the user's power source availability, allowing any power supply from 12V-24V.
- MKS Gen retains all interface of ramps1.4.

More information: Click here

Features
- Arduino MEGA compatible Atmega2560 and FT232 processors are compatible with all RAMPS class firmware
- Firmware can use the same configuration as ramps1.4
- Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board
- Easy connect MKS TFT on AUX-1
- All extra pins broken out the same as ramps1.4(AUX-1,AUX-2,AUX-3,Servos1)
- 3x temperature ADC connectors for thermistors
- Up to 5 motor driver with easy micro stepping setup (micro switches)
- 4x PWM capable power mosfet outputs with voltage selector for MainPower.(Bed,Extruder0,Extruder1, Fans)
- 4 layers PCB, optimize heat dissipation.
- 3* 5V output, 3* 12V-24V output interface.
- 6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax
- Recoverable fuse for short-circuit protection


Package list:
- 1 x MKS-Gen V1.4
- 1 x USB cable
