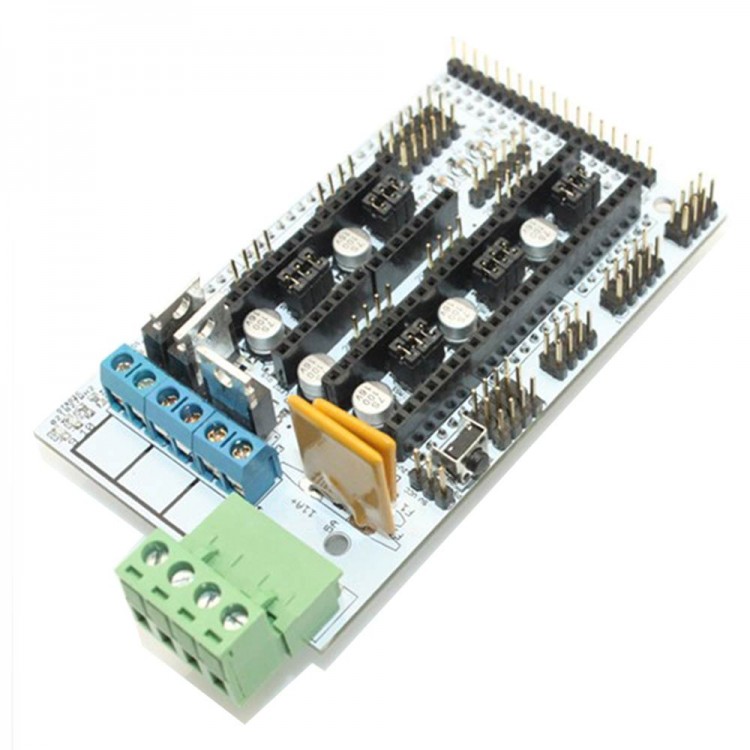

3D Printer RAMPS Mega Shield1.4 Control Board Printer Control Reprap for Arduino DIY
Features:
- It has the stipulation of right angle coordinate robot and the extrusion machine.
- Extended to control and other accessories.
- Heater / fan output and 3 MOSFET of thermistor circuits.
- Fusion 5A extra security and component protection
- Heating bed to control additional 11A fuse
- For 5 Pololu stepping drive plate
- Pololu plate pin socket, so they can be easily replaced or removed for future design.
- I2C and SPI pins are for future expansion.
- All the MOSFET as for PWM pin
- Servo type connector for connecting to terminal block, the motor and the LED. These connectors are gold-plated , and the rated current is 3A, very compact.
- Add on 11.SD card - now available by Sdramps - Kliment
- LED indicator heater output
- Option 2 motors are connected to the Z Prusa Mendel
Package included:
- 1 x Control Board
- 1 x Manual
