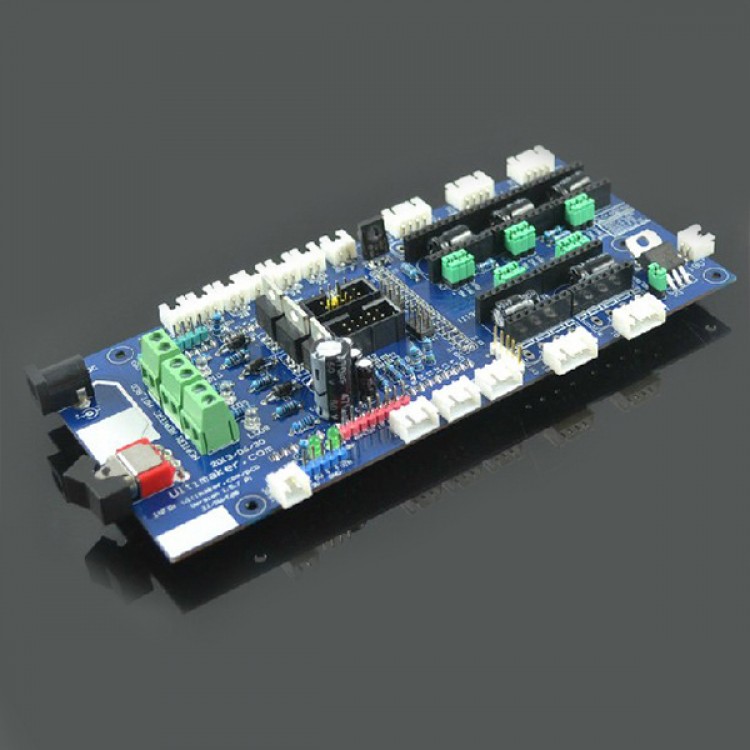

3D Printer Ultimaker PCB Main Control Board DIY Kits Compatible with RAMPS Support Dual Print

3D Printer Ultimaker PCB Main Control Board DIY Kits Compatible with RAMPS Support Dual Print

Description
- 3D Printer-Ultimaker PCB control board DIY kit compatible RAMPS dual print
- This product is an Arduino MEGA as Ultimaker UltiStepper drive is compatible with Pololu stepper driver boards of a board. This is very similar to other electronic -based realization of Pololu including RAMPS, it can support up to five stepper motors ( three as X, one of the other functions Y, Z, an extruder ) . You can add as much as you need stepper drive carriers. It is designed to run at a higher voltage than 12 volts, which allows you to put a 90 -watt MOSFET and run your stepper motor with more torque and higher top speed. It has a head , increasing the SD card module , IDC head added LCD panel ( movie ), PWM output power LED arrays and other lighting and serial I / O , Bluetooth and Ethernet add-ons .

Note :
- Connect Jumper ( nearly VR tube 7812TV), Arduino MEGA Ultimaker control panel will also have the power.

Feature:
- Simple 4-way JST connector plug for all motors .
- Stepper motor control up to 5 ( 3 X, Y and Z axes extruder ( in "E axis" ) , you can optionally add another axis by adding a Pololu stepper drives .
- By jumper configuration steps.
- 3 times 55 amps output MOSFET (with LED indicator. Actual current limited capacity PCB and connector )
- All leads are breaking the maximum scalability from 15V to 19V.
- Thermocouple input , or thermistor input. 100K thermistor recommendations.
- Power on / switch documented board.
- Thermocouple wiring easier .
- ( Normally open ) fan-cooled electronic device includes a 12V regulator.
- Now LCD backlight dimming can be controlled by software .
