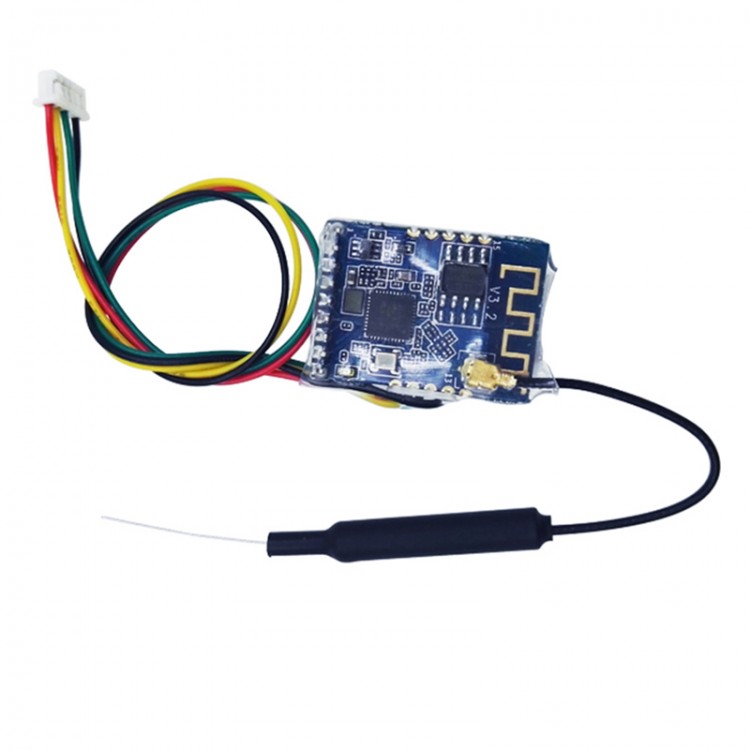

3DANTS Pixhawk APM wifi Telemetry Replace 3DR Telemetry Module
Parameters:
- Wireless standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Wireless transmission speed:
11n: max can reach 150Mbps
11g: max can reach 54Mbps
11b: max can reach 11Mbps
- Channel number: 1-14
- Frequency range: 2.4-2.4835G
- Transmitting power: 14-18 DBM
- Interface: serial port, GPIO
- Antenna type: external antenna
- Transmission distance: 300-800M
WIFI transmission parameters:
- WIFI working mode: wireless network/ wireless interface point
Wireless safety
- Wireless safety function: 64/ 128/ 152 bits WEP encription
- Transmission speed: 57600bps
- TCP connection: max connecting number 4
Other parameters:
- State indicator light:
- Environmental standard:
working temperature: -20---70degree
working humidity: 10%-90% RH
storage temperature: -40---80degree
storage humidity: 5%-90%RH
- Frequency band to choose from: 20MHz, 40MHz, automatic
