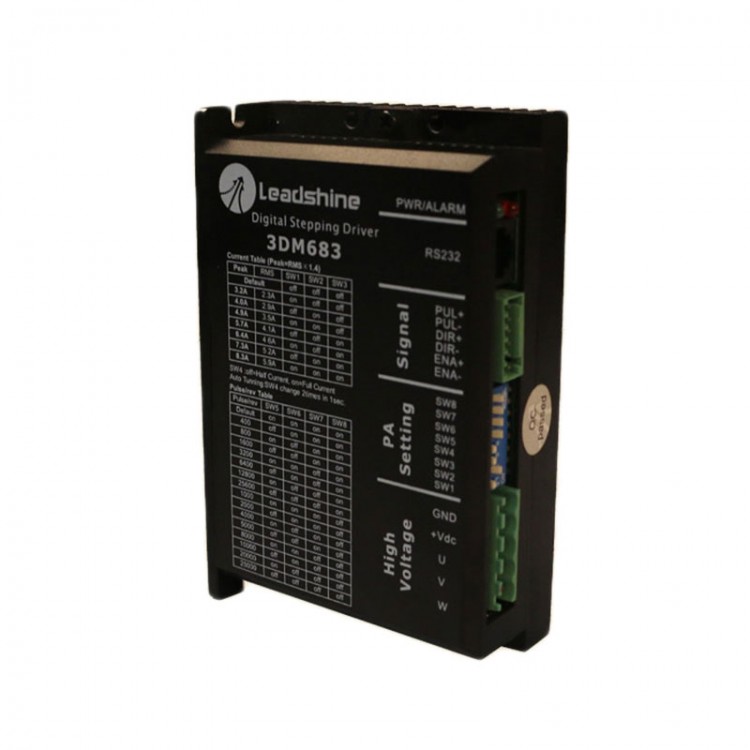

3DM683 Leadshine 3 Phase Stepper Motor Driver Controller for CNC Router Laser Engraving Machine
Description:
3DM683 is introduced ressaix the digital three-phase stepper motor drive has the following characteristics: 1, the use of the latest 32-bit DSP processor, built-in 9 big revolutionary technology. 2, high-precision, low vibration, low ripple current control technology, with the elimination of the low-speed vibration algorithm greatly reduces noise and vibration. 3, using the built-in micro-segmentation technology, to achieve high segmentation results even at low subdivision conditions, high school low-speed running very smoothly. 4 drive internal integration parameter self-tuning function that automatically adapts to different motor parameters to maximize motor performance.
Features
- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration technology, offers optimum responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
- Microstep resolutions programmable, from 200 steps/rev to 102,400 steps/rev
- Supply voltage up to +60 VDC
- Output current programmable, from 0.5A to 8.3A
- Pulse input frequency up to 200 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 3/6-leads 3-phase motors
- Support PUL/DIR and CW/CCW modes
- Over-voltage, over-current, phase-error protection
Technical Parameters
- Brand Name:LEADSHINE
- Motor Type:Stepper Motor
- Model Number:3DM683 stepper motor driver
- Voltage:DC18-60
- Current:3.2-8.3A
- Stepper motor:57/86
- Dimensions:118*75.5*33mm
The Main Application areas
Suitable for a variety of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotters, CNC machine tools, automatic assembly equipment and so on. Users expect a small noise, high speed equipment excellent special effects
Package Contents:
- 1 x Stepper Motor Driver
