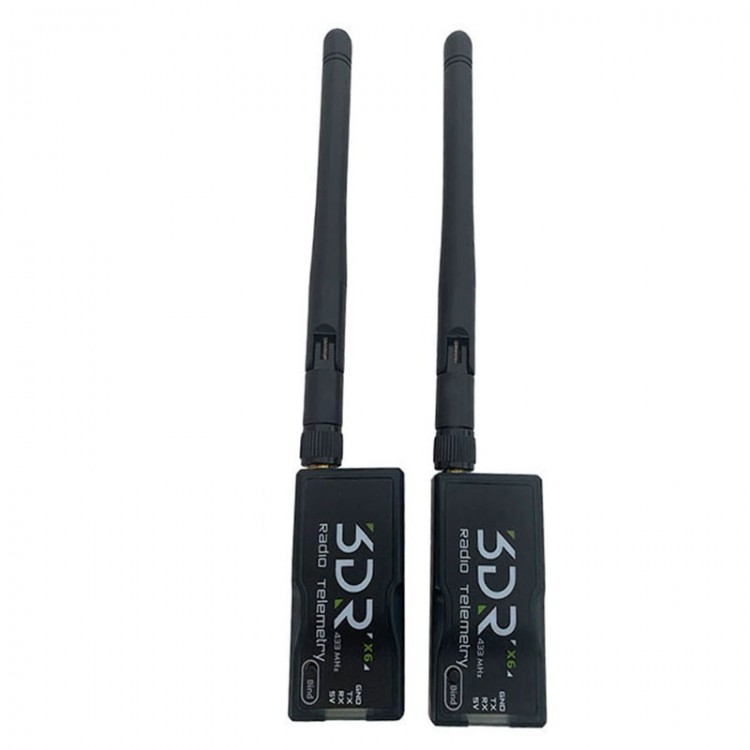

3DR X6-433MHZ (500MW) 2KM Telemetry Radio Data Transmission Module for PIX2.4.8 Flight Controller

3DR X6-433MHZ (500MW) 2KM Telemetry Radio Data Transmission Module for PIX2.4.8 Flight Controller

Features:
- New X6 433MHZ 500mW telemetry radio
- 2KM transmission distance
- With a bind button for binding frequency, to eliminate complex parameter settings. Even beginners can get started right out of the box
- The telemetry radio modules are interchangeable. They can be used as the sky end and the ground end
- GH1.25 interface: GH1.25 is the latest mainstream self-locking interface. Anti-pulling, anti-loosening, and more stable performance
- High-quality workmanship and strict quality control: The product has been tested to ensure the safety and stable performance of aircraft during flight
- Omnidirectional antenna of high gain: 5DBI (500MW) omnidirectional antennas are used to strengthen the signal and anti-interference ability

Steps to Bind:
1. Power a telemetry radio module and green light will flash.
2. Press and hold the Bind button for 3 seconds, red light will flash quickly, and the telemetry radio will enter the binding mode. The pairing mode will last for 10 seconds.
3. Power another data transmission module within 10 seconds. Green light staying on means successful pairing.

Performance Parameters:
- Product model: X6
- Communication distance: (outdoor, unobstructed) 2KM (500MW)
- Communication frequency: 433MHz
- Maximum transmit power: 500mW
- Baud rate: 57600 (default)

Physical Parameters:
- Operating temperature: -10°C to 60°C
- Operating humidity: 10% RH~90% RH (non-condensing)
- Dimensions (excluding antenna): 49 x 25 x 13mm/1.9 x 1 x 0.5" (LxWxH)
- Weight (single, including antenna): 22.5g/0.05lb

Power Supply Requirements:
- Operating voltage: 3.7V~6V DC
- Transmit current: 100mA at 30dBm
- Received current: 25mA

Package Included:
- 2 x Telemetry Radio Modules
- 2 x Antennas

Packaging Details:
- G.W.: 0.25kg
