• 3GHz Low Pass Filter LPF with SMA Female Connector 50ohms Impedance High Quality RF Accessory

3GHz Low Pass Filter LPF with SMA Female Connector 50ohms Impedance High Quality RF Accessory

Availability: In stock, usually dispatched in 1 business day

  • Price:$79.11
  • Price in reward points: 791 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $77.53 $75.95 $73.57 $70.41 Contact US
Quantity:

3GHz Low Pass Filter LPF with SMA Female Connector 50ohms Impedance High Quality RF Accessory

Bandpass Filter 2.7-3GHz:

- Model: RFBP-27G
- Measuring range: 0 - 6GHz
- Pass band: 2.6 - 2.9GHz
- Stop band: DC-2.2GHz, 3.3 - 6GHz
- Impedance: 50ohms

Bandpass Filter 3.3GHz:
- Model: RFBP-33G
- Measuring range: 0 - 6GHz
- Pass band: 3.2 - 3.4GHz
- Stop band: DC-2.7GHz, 3.9 - 6GHz
- Impedance: 50ohms

Bandpass Filter 4GHz:
- Model: RFBP4GHz
- Measuring range: 0 - 6GHz
- Pass band: 3.8 - 4.2GHz
- Stop band: 0-3GHz & 5-6GHz
- Impedance: 50ohms
- Power: > 50W

Bandpass Filter 4.5GHz:
- Model: RFBP4.5GHz
- Measuring range: 0 - 6GHz
- Pass band: 4.45 - 4.55GHz
- Stop band: 0-3.9GHz & 5.2-6GHz
- Impedance: 50ohms
- Power: > 50W

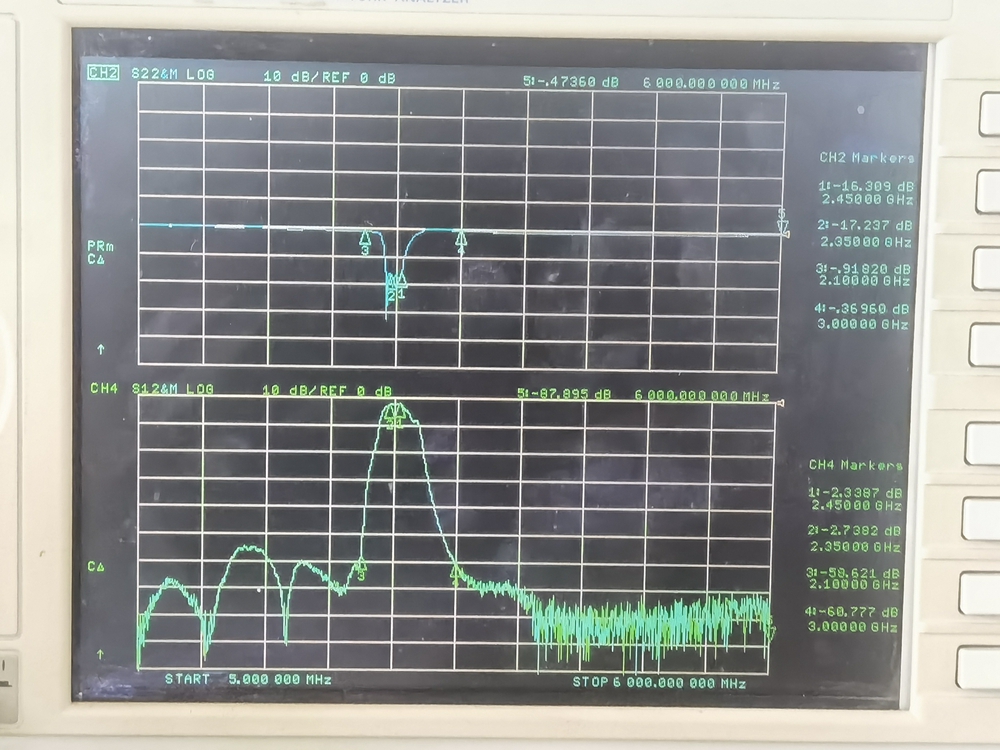

Bandpass Filter 2.4GHz:
- Model: RFBP-24G
- Measuring range: 0 - 6GHz
- Pass band: 2.35 - 2.55GHz
- Stop band: DC-1.9GHz, 2.8 - 6GHz
- Impedance: 50ohms

Bandpass Filter 3.5GHz:
- Model: RFBP-35G
- Measuring range: 0 - 6GHz
- Pass band: 3.4 - 3.6GHz
- Stop band: DC-2.8GHz, 4.0 - 6GHz
- Impedance: 50ohms

Low Pass Filter 2.4GHz:
- Model: RFLP-24G
- Measuring range: 0 - 6GHz
- Pass band: DC-2.4GHz
- Stop band: 3.0 - 6GHz
- Impedance: 50ohms

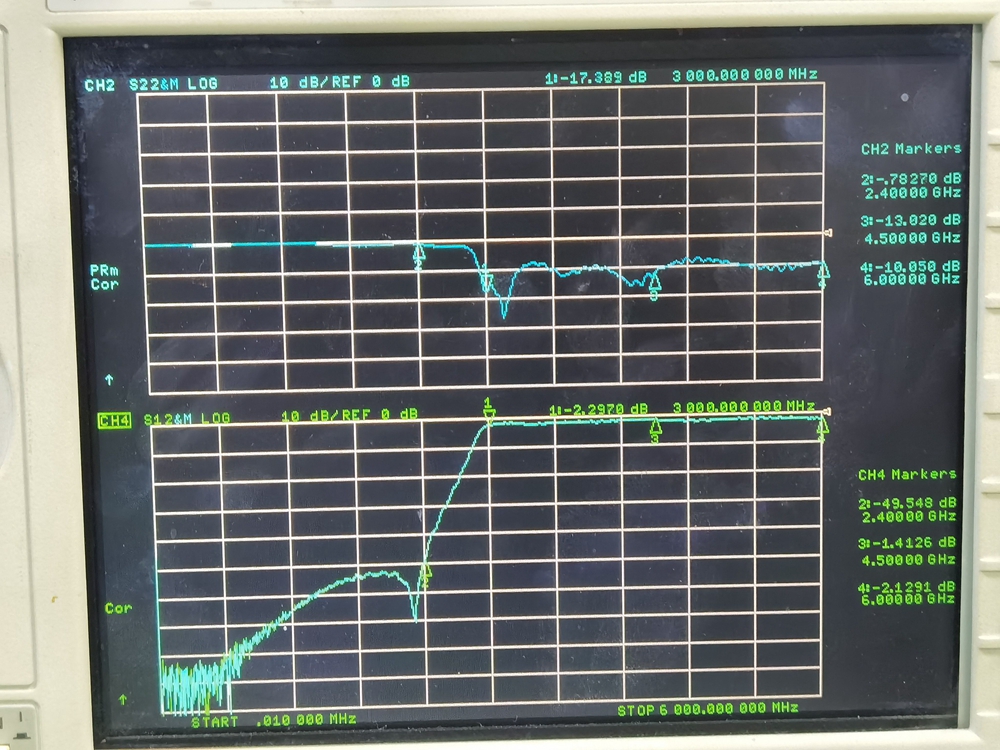

High Pass Filter 3GHz:
- Model: RFHP-30G
- Measuring range: 0 - 6GHz
- Pass band: 3 - 6GHz
- Stop band: DC-2.5GHz
- Impedance: 50ohms

Low Pass Filter 3.7GHz:
- Model: RFLP-3700
- Measuring range: 0 - 6GHz
- Pass band: DC-3.7GHz
- Stop band: 5 - 6GHz
- Impedance: 50ohms
- Power: > 50W
- Insertloss: < 3.0dB

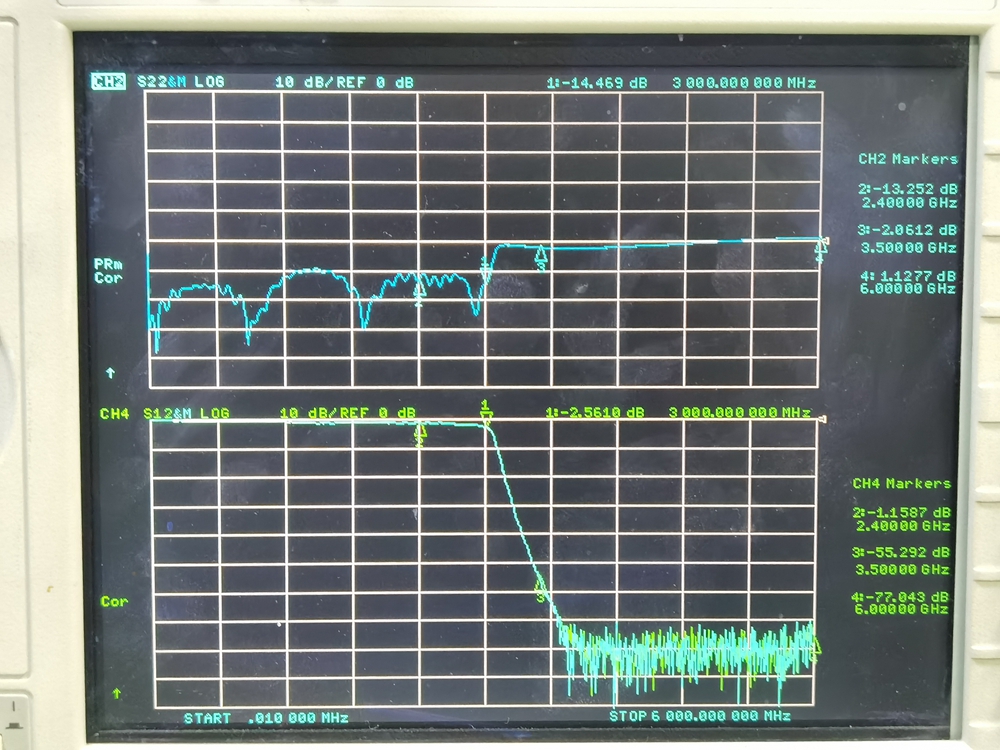

Low Pass Filter 3GHz:
- Model: RFLP3GHz
- Measuring range: 0 - 6GHz
- Pass band: 0 - 3GHz
- Stop band: 3.5 - 6GHz
- Impedance: 50ohms

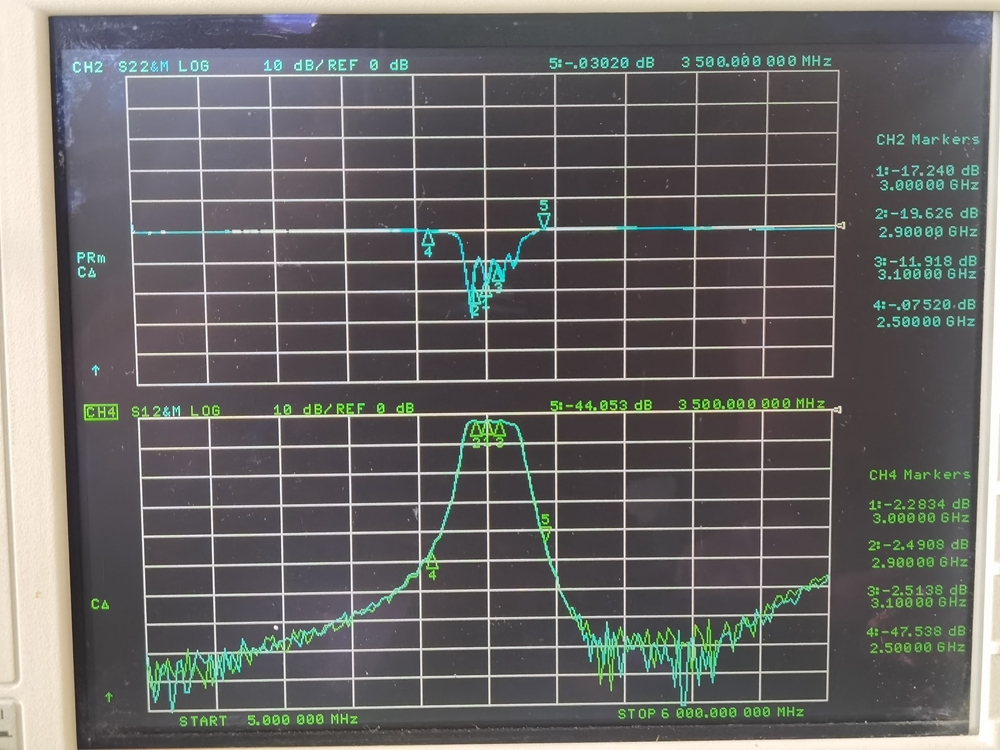

Bandpass Filter 2.85-3GHz:
- Model: RFBP-2.85/3
- Measuring range: 0 - 6GHz
- Pass band: 2.85 - 3GHz
- Stop band: DC-2.35/3.3-6GHz
- Impedance: 50ohms
- Power: > 50W

Bandpass Filter 3.65-3.75GHz:
- Model: RFBP-3.65/3.75
- Measuring range: 0 - 6GHz
- Pass band: 3.65 - 3.75GHz
- Stop band: DC-3.3/4.0-6GHz
- Insertloss: < 3.0dB
- Impedance: 50ohms
- Power: > 50W

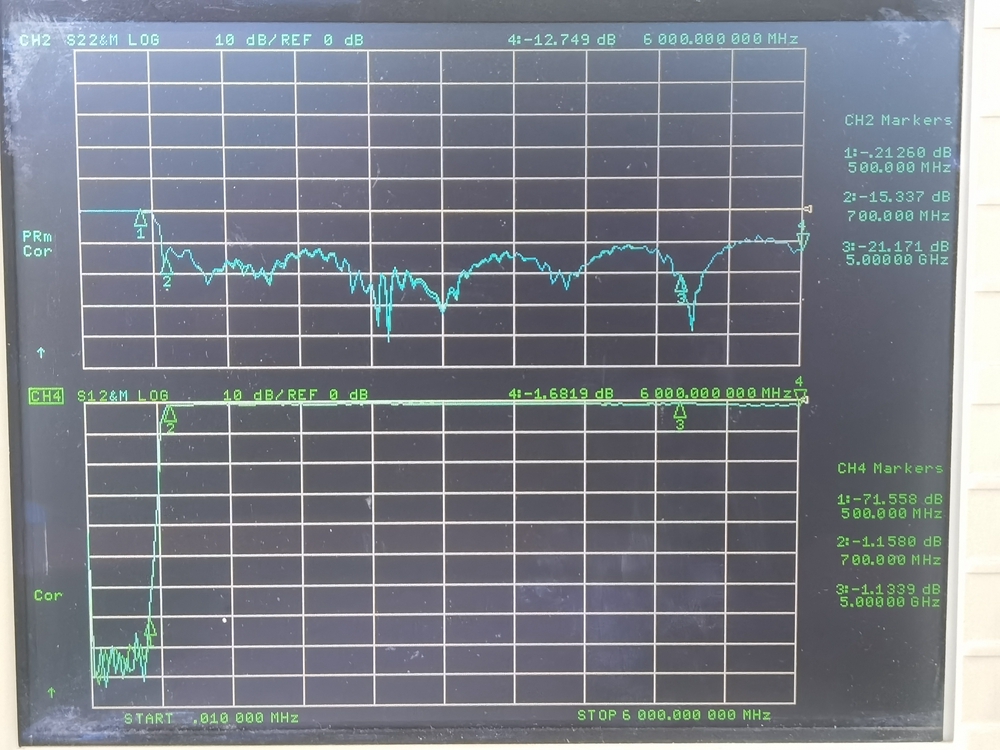

High Pass Filter 700MHz:
- Measuring range: 0 - 6GHz
- Details are not immediately available.

Bandpass Filter 4.9GHz:
- Measuring range: 0 - 6GHz
- Details are not immediately available.

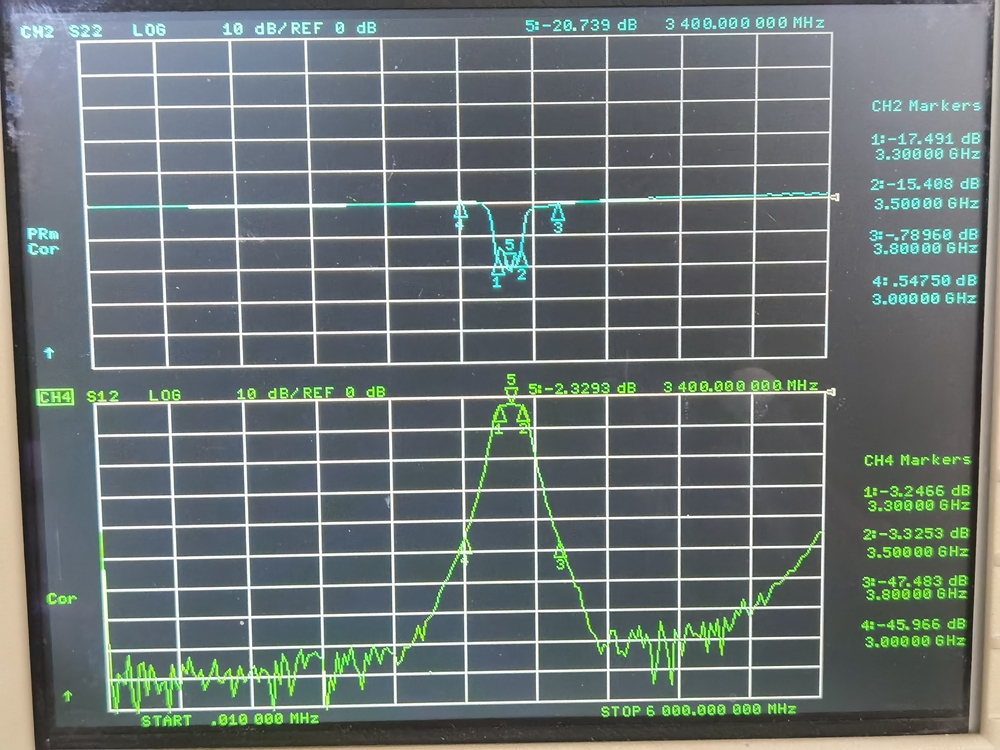

Bandpass Filter 3.4GHz:
- Model: RFBP3.4GHz
- Measuring range: 0 - 6GHz
- Pass band: 3.35 - 3.45GHz
- Stop band: 0-3GHz & 3.8-6GHz
- Impedance: 50ohms
- Power: > 50W

Bandpass Filter 5.8GHz:
- Model: RFBP5.8GHz
- Measuring range: 0 - 10GHz
- Pass band: 0-5.6 & 6-8GHz
- Stop Band: 5.8GHz
- Impedance: 50ohms
- Power: > 50W

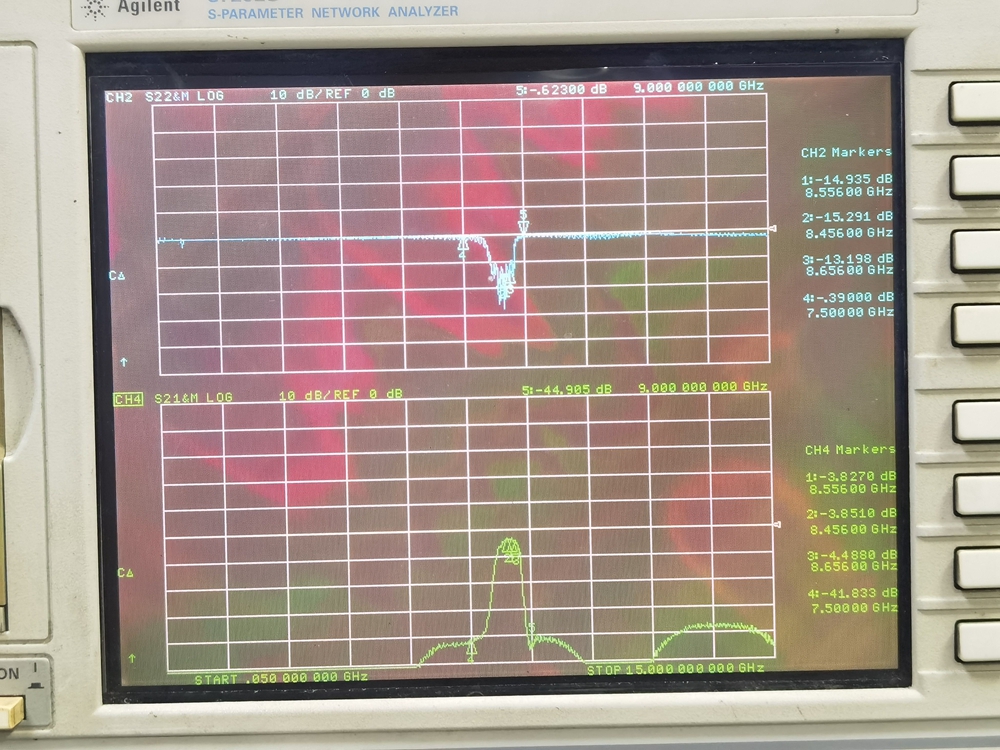

Bandpass Filter 8.5GHz:
- Measuring range: 0 - 12GHz
- Details are not immediately available.

Bandpass Filter 10GHz:
- Measuring range: 0 - 15GHz
- Details are not immediately available.

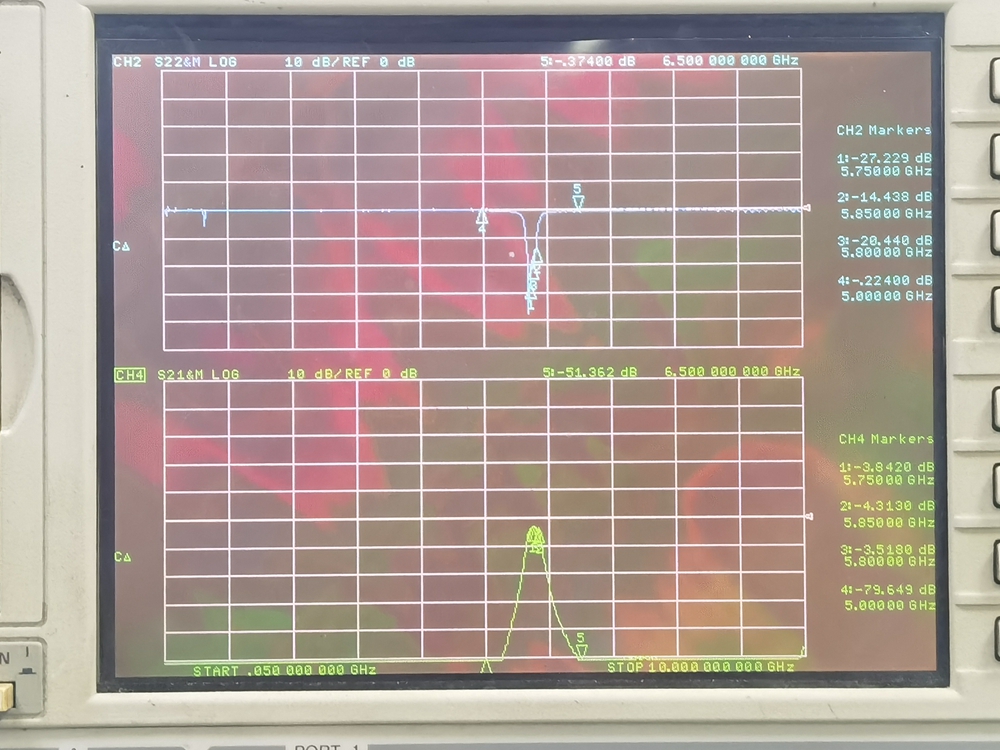

Bandpass Filter 5-6GHz:
- Measuring range: 0 - 10GHz
- Details are not immediately available.

Bandpass Filter 9-10GHz:
- Measuring range: 0 - 15GHz
- Details are not immediately available.

Package Included:
- 1 x Filter Module
