3MP Digital Satellite Finder Meter 4.3" Monitor Support AHD TVI CVI Coaxial HD Camera KPT-255G+

3MP Digital Satellite Finder Meter 4.3" Monitor Support AHD TVI CVI Coaxial HD Camera KPT-255G+

Description:
1.Support DVB-S standard. Fully display DVB-S, DVB-S2, MPEG-2, MPEG-4(H.2.64/AVC) digital satellite signals; High quality video, audio display with HDMI output.

2.Support AHD input, AHD/CVI/TVI video display,coaxial high-definition simulation, according to the video products own vehicle with DC12V power supply only output to the camera, engineering treasure is the preferred product. (optional: only KPT-255G+ MODEL).

3.Support AV input: analog video and audio input display as DVD and other multimedia player.

Satellite Finder Functions:
4.3-inch handheld multifunctional monitor&satellite finder is a product for the installation of satellite TV test tools. Set the satellite TV(DVB-S/S2 MPEG-4) and signal & image shows test, radio, television, monitoring function. Using TFT LCD display image, LED back lighting with low power consumption. Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.

Low power consumption LED / high-resolution digital display TFT LCD. AV output and input function. with DC12V output(use of camera).Unique star search guidance function and satellite finder management, Built-in protecting circuits for high-frequency tuner, external short circuit alarm. 13V/18V/22K/signal lock indicator located in machine panel,it can be displayed at the same time. USB port can use in software’s upgrade and media play (such film, image, music and record etc).Due to the use of handheld structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, it is a professional equipment for satellite TV receiving system engineering, control engineering and technicians

Built-in satellite signal warning; Find star signal quality LED displayed,INFO article shows of signal shape, with DC12V output.

Easy Satellite Manager (EDIT, delete and SCAN), Edit TP, Frequency, LNB switch, Symbol Rate etc.

Features:
- 4.3" Inch High definition TFT LCD Screen which Can Play Channels(DVB-S/S2 MPEG-4).
- Live FTA Digital Picture and Sound
- Supported AVS/AVS+ HEVC (H2.65/4K) satellite TV TP signal and lock the signal alarm
- Sound and Light Alarm When Lock Signal. Find star signal quality, Shows strength and quality readings, INFO article shows of signal shape.
- Built-in speaker
- With DC12V power output to CCTV
- On satellite finder state, HD/AV port outputs video and audio synchronously
- Protective glass on LCD panel, Trestle on behind the machine
- with AV input function.

Satellite Finder:
- Frequency range:950MHz-2150MHz
- LNB power & switch:13V18V/22K / signal lock indicator
- Input impedance: 75Ω (F). LNB short-circuit protection
- Support Unicable system / LNB feature
- DiSEqC: 1.0, 1.1 & Motor antenna: 1.2, USALS
- Build-in signal locked alarm
- Build-in satellite finder management Easy Satellite Manager (Edit, Delete and Scan), Edit TP, Frequency, LNB switch, Symbol

2. AHD Input: Test CCTV Camera
1.AHD: Support AHD/TVI/CVI camera 720P 960P 1080P 4K HD video input,display picture
2. Analog CVB-S Video

3. AV Input:(on AV state; TV state is AV output)
- Support Video & Audio &DC12V power test
- AV Input (Video&Audio Input Monitor)

HD Output:
- On satellite finder state
- Optional 480i, 480P 576i,576P,720P,1080i,1080P

USB: (On satellite finder state )
- Support software upgrade and PVR
- Supports external HDD via USB, power wanted if necessary

Specifications:
LCD Display:
- 4.3" TFT LCD; Display size:97*55 mm (16:9 display)
- Dots pixels:480*272(391680Pixes)

Satellite signal:
- video decoding: DVB-S/S2,MPEG-2/4 display
- signal test: DVB-S/S2,MPEG-2/4,signal alarm & signal test.

Menu language:
- English, French, Russian; Arabic; Portuguese; Turkish; Deutsch, Italiano; Spanish; Polish; Persian; Indonesia

LNB/Tuner Input:
- connector: F type male puly : 75Ω(F)
- Frequency range: 950MHz-2150MHz(DVB-S/S2)
- Signal level: -80 to -20dBm
- Symbol rate: 13/18V. Max. 400mA(DVB-S/S2)
- LNB switch control: 22KHz(turn on/off/auto)
- DiSEqC: 1.0, 1.1, 1.2, USALS
- Satellite Management: Edit, Add, Delete
- Minimum electric level: About 35dBuV (noise)
- Maximum electric level: About 90dBuV

Demodulator:
- Front end: QPSK(SCPC and MCPC compatible)
- Symbol rate: 2Mbps-45Mbps
- Guard interval modes: 1/32,1/16,1/8 Active symbol duration
- Carriers/Constellation: All modes supported including non hierarchical
- Demodulation: QPSK/8PSK/16PSK

Audio:
- Audio decoding: For MPEG-1 and MPEG-2 layer I&II, Dolby Digital Audio, E-AC3, WMA and HE-AAC Digital Audio

Video Decoder:
- Video format: PAL/NTSC/SECAM
- Video decoding: MPEG-2
- Aspect ratio: 4:3, 16:9

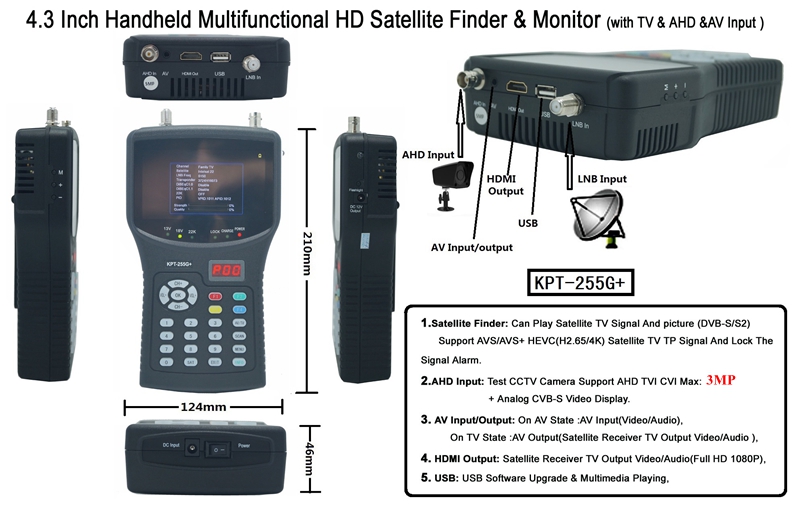

Input /Output Connector:
- HDMI Output: 480i /480P/576i / 576P / 720P /1080i /1080P HD signal output.H.264, MPEG2 and MPEG1
- AV(Video&Audio):
* AV state: 3.5 port audio&video input
* TV state: 3.5 port audio&video output
- Support TVI AHD CVI camera 720P HD video input,display picture
- USB Input: USB upgrade,USB media player(PVR, Video, Music, Image)

Power Supply:
Charger:
- In AC100-220V Charge 13.5V/1.5A;
- OutDC12V / 1A

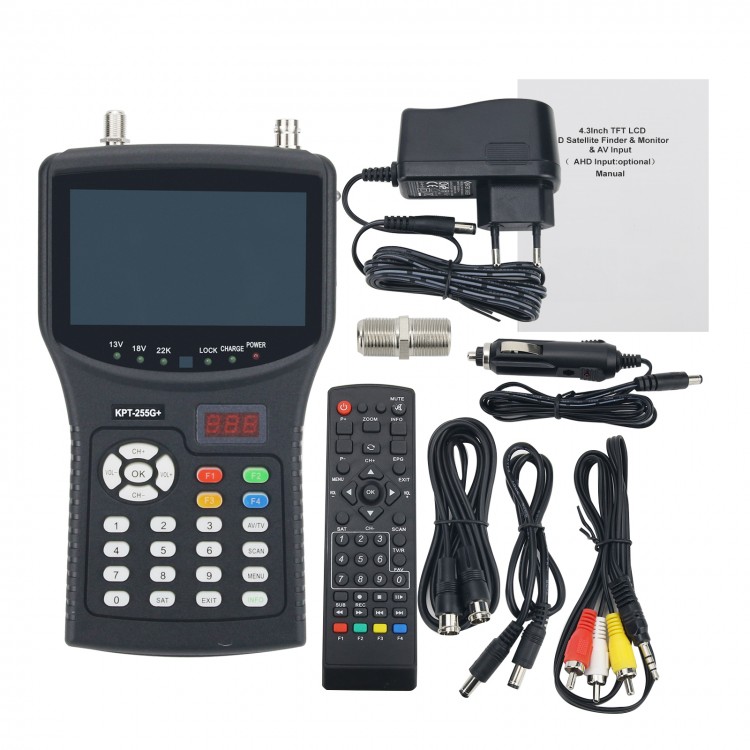

Package Included:
- 1 x Satellite Finder
- 1 x Power Adapter
- 1 x Car Power Cord
- 1 x LNB Line
- 1 x DC Line
- 1 x AV Line
- 1 x Bag
- 1 x Manual

Note: Remote control is optional. If needed, please contact us to pay extra money. Thank you!
