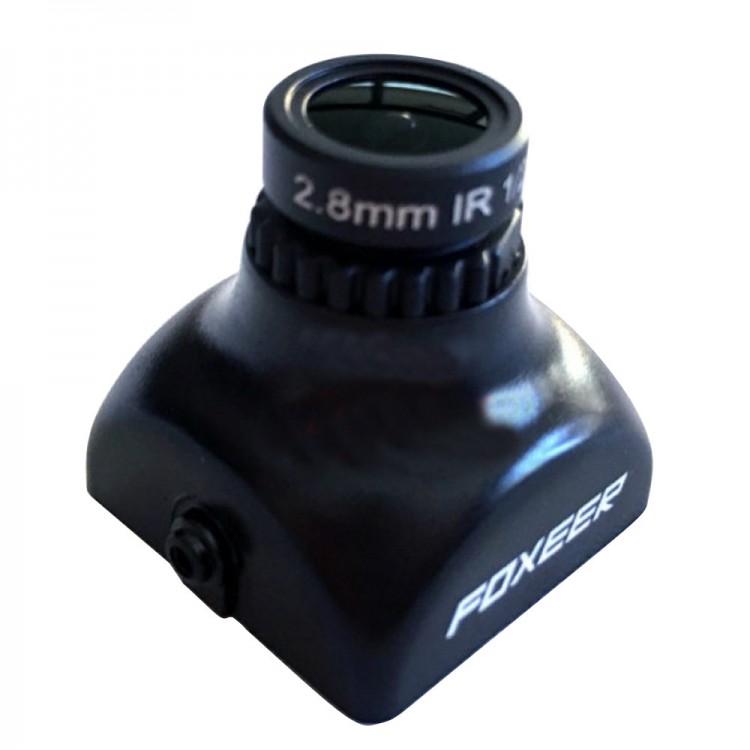

3MP FPV Camera PAL with 2.8mm Lens FOXEER XAT1200M 16:9 1200TVL DC5-22V HS1189

3MP FPV Camera PAL with 2.8mm Lens FOXEER XAT1200M 16:9 1200TVL DC5-22V HS1189

Description:
Foxeer released 1.3 Mega pixel 16:9 FPV camera, which is suitable for 16:9 Goggles and monitors, it features wonderful OSD menu, WDR, 10ms latency as well as 5~22V wide voltage, it has very vivid color, excellent FPV camera for race.

Features :
- 1/2.9 inch sensor
- 1.3 Mega Pixel
- 1200TVL
- CVBS 16:9
- WDR
- Latest high speed processor
- Support 3D-DNR
- SENSE-UP
- Low illumination 0.01LUX
- Multiple protection design, over voltage / static electricity / lightning protection
- Adopt Japanese power IC design, can be from 4.5V to 24V
- Powerful OSD menu

Specification:
- Model Foxeer : XAT1200M
- Image Sensor : 1/2.9 CMOS
- Output Resolution : 1200TVL
- Camera system : PAL
- Total Pixels : 1280(H)960(V)
- Color 0.05Lux(F1.2,50IRE,AGC ON)
- BW: 0.001Lux(F1.2,50IRE,AGC ON)
- Shutter Speed (CCD IRIS) : PAL 1/50 1/100,000s
- 2D-DNR : 0-100
- 3D-DNR : 0-100
- SENSE-UP : Support
- Image Adjustment : Support
- BLC/HLC : Support
- WDR : In built
- S/N : > 50dB
- White Balance : Auto
- Day / Night Shift : Auto/ External control/ Color/ B&W
- Private shading : Support
- Language : Chinese/English
- Video Out : 1.0Vp-p, 75
- Input Power : 4.5V-24V
- Working Temperature : -2060
- Working Humidity : Relative humidity
- Dimension : 26mm*26mm

Package Included:
- 1 X FPV Camera
