Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $15.73 | $15.41 | $14.93 | $14.28 | Contact US |

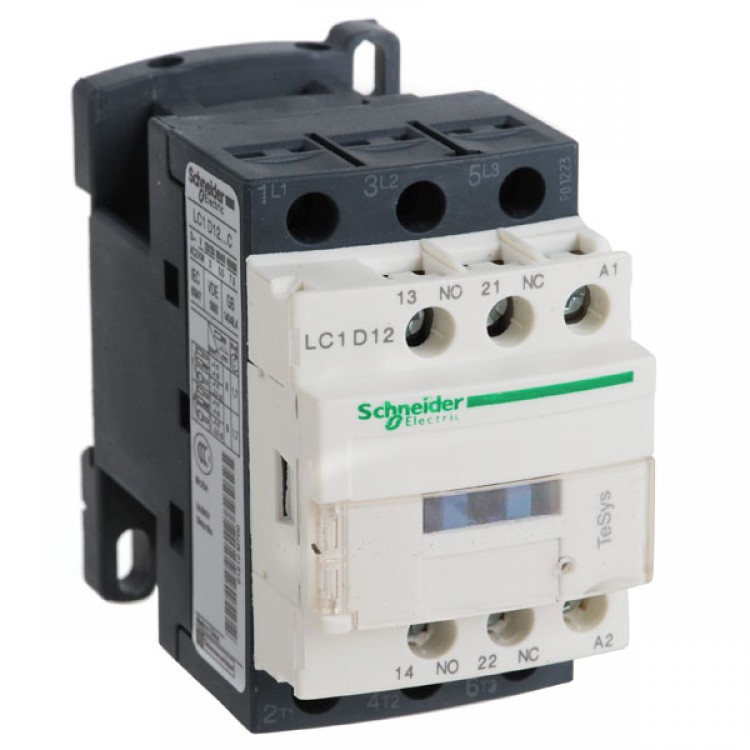

3P+NO+NC AC 380V Contactor LC1D12Q7C Contactor for Electric Motor
Descriptions:
- For long-distance making and breaking circuit and frequent start and control AC electric motors.
- Contacts can also be assembled into a modular auxiliary contact group, air delayer, mechanical interlocking institutions and other accessories
Specifications:
Product Name | AC Contactor | ||||||
Model Number | LC1D12Q7C | ||||||
Material | Plastic, Metal, Electrical Parts | ||||||
Controll Voltage | AC 380V, 50/60Hz | ||||||
Ith | 25A | ||||||
Ui | 690V | ||||||
Uimp | 6KV | ||||||
AC-3 | Voltage | 220/230V | 380/400V | 660/690V | |||
Power | 3KW | 5.5KW | 7.5KW | ||||
Number of Pole | 3 Poles | ||||||
Contact | NO+NC | ||||||
Overall Size(Approx.) | 7.2 x 4.4 x 8.7cm/2.8'' x 1.7'' x 3.4'' (L*W*H) | ||||||
Color | Gray, White | ||||||
Net Weight | 360g | ||||||
Package Content | 1 x AC Contactor |
