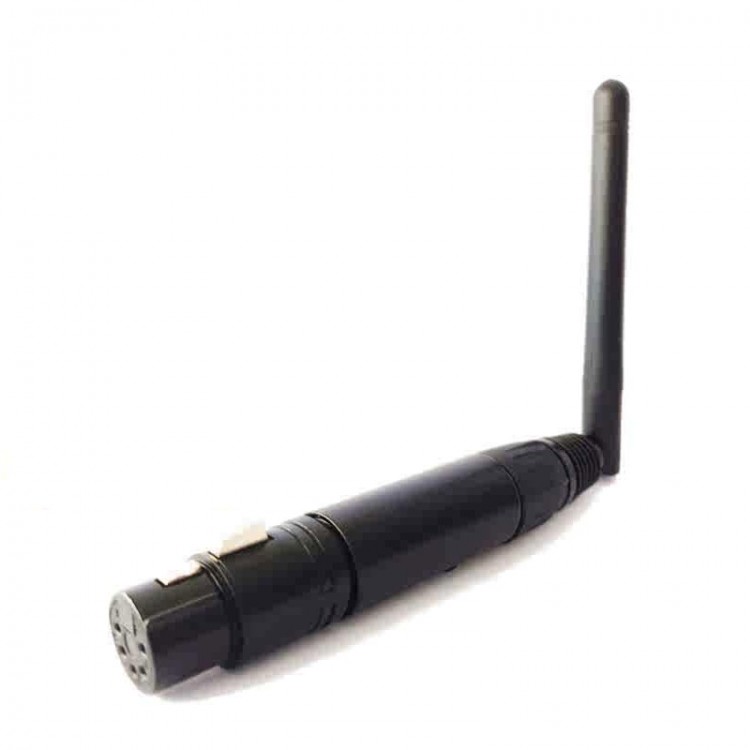

3rd Generation 3-Pin WIFI-DMX Controller (Long Version) for Film and Television Lighting with Wifi

3rd Generation 3-Pin WIFI-DMX Controller (Long Version) for Film and Television Lighting with Wifi

Advantages:
- The classic WIFI-DMX controller receives the signal from a mobile phone through WIFI. It can control all products with DMX signals.
- Unlimited networking function: Thanks to WIFI hotspot, it can be connected to the WIFI of any controller to achieve joint control.

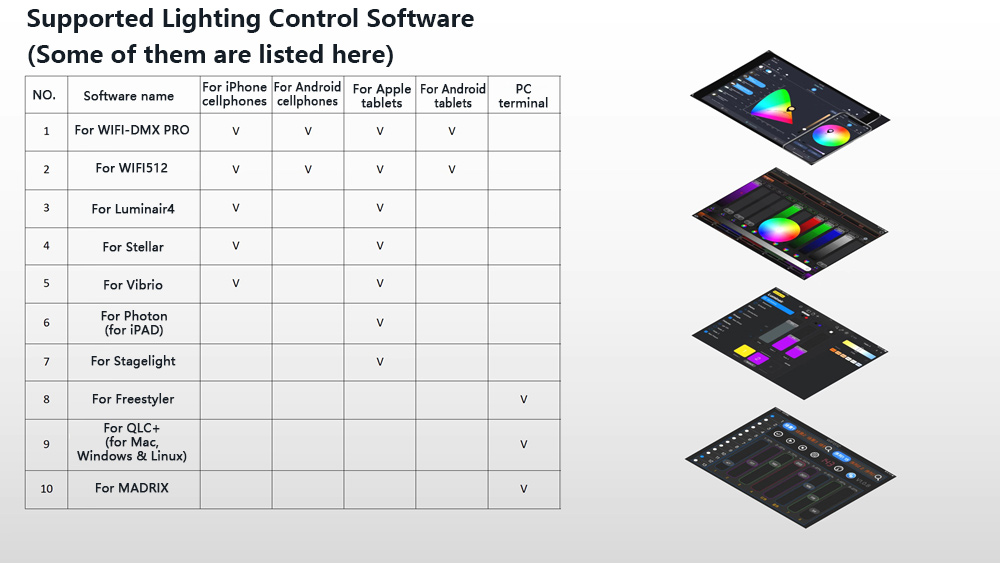

- It can control 512 DMX channels and is compatible with third-party software. It supports for DMXControl/ FreeStyler/Tiger Touch consoles/MagicQ/MA2/Madrix/QLC.
- It can be used with WIFI-DMX super version to switch between the physical console and the mobile phone console at any time.
- It can be used with a console host to switch among the physical console, a mobile phone console and a computer console at any time.
- It can be used with a signal amplifier to support light control distance up to 200m/656.2ft via a cellphone.
- Long and short versions are optional. The long version has a stronger signal, and the short one is small and convenient.
- Users can change the WIFI name and password.

Features:
- Outputs 512 channels. It supports physical console/mobile phone console/computer terminal console to control lights
- With built-in WIFI, it supports unlimited networking. Plug and play
- Can be used with other devices to meet the needs of different scenarios
- It supports a cellphone to control lights at a distance of 200m/656.2ft
- Suitable for DMX light fixtures, including stage lights, film and television lighting and beam lights
- Mobile APP supports independent switching between Chinese and English
- The mobile software supports automatic programming
- The mobile APP comes with a light library for ARRI and other manufacturers
- The mobile APP can quickly generate effects such as running horse and running water

Specifications:
- Connection: 1* WIFI connection
- Degree of protection: IP20
- LED indicator light: With
- Supported protocols: Art-Net, DMX and WIFIDMX
- Maximum output channels: 512
- Output interface: 3-pin XLR
- Output refresh rate: 33FPS
- Input voltage: 5V DC
- Configuration software: For WIFI-DMX PRO and WIFI512
- Input current: 500mA
- Power: 2.5W
- Ambient operating temperature: 0°-50°C; 32°-122°F
- Ambient operating humidity: 5-95% (non-condensing)
- Body material: Aluminum alloy

Package Included:
- 1 x Set of WIFI-DMX controller

Packaging Details:
- Weight: 0.3kg
