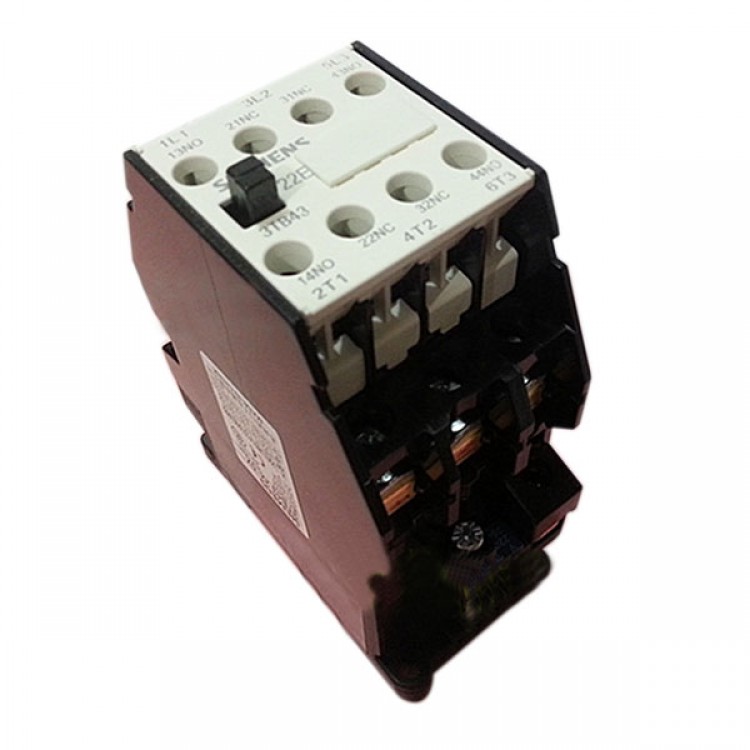

3TB43 CJX1-22 Magnetic Bakelite Contactor 380V AC Contactor
Description:
3TB43 CJX1-22 Magnetic Bakelite Contactor 380V AC Contactor
Descriptions:
- Rated insulation voltage up to 1000V,rated operation current 9~400A under AC-3 duty.
- CJX1series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to 1000V,rated operation current 9~400A under AC-3 duty. Itis mainly used for making/breaking electric circuits at a long distance& for frequent starting/stopppng & with thermal relay to compose a magnetic motor starter
Note:TB Series is made of Bakelite,and TF is made of plastic
Specifications:
Model |
|
|
CJX1-9 (3TB40) |
CJX1-12 (3TB41) |
CJX1-16 (3TB42) |
CJX1-22 (3TB43) |
CJX1-32 (3TB44) |
CJX1-45 (3TF46) |
CJX1-63 (3TF47) |
CJX1-75 (3TF48) |
CJX1-85
(3TF49) |
CJX1-110 (3TF50) |
CJX1-140
(3TF51) |
Rated insulation voltage |
|
|
660 |
660 |
660 |
660 |
660 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
Mechanical life(time×10000) |
|
|
1000 |
1000 |
1000 |
1000 |
800 |
800 |
800 |
600 |
600 |
600 |
600 |
Rated working current A (380V) |
AC-3 |
|
9 |
12 |
16 |
22 |
32 |
45 |
63 |
75 |
85 |
110 |
140 |
|
AC-4 |
|
3.3 |
4.3 |
7.7 |
8.5 |
15.6 |
24 |
28 |
34 |
42 |
45 |
48 |
Control of motor powe KW |
AC-3 |
230/220V 400/380V 500V 690/660V |
2.4
4
5.5
5.5 |
3.3
5.5
7.5
7.5 |
4
7.5
10
11 |
6.1
11
11
11 |
8.5
15
21
23 |
15
22
30
39
|
18.5
30
41
55 |
22
37
50
67 |
26
45
59
67 |
37
55
76
100 |
43
75
98
100 |
|
AC-4 |
400/380V 690/660V |
1.4
2.4 |
1.9
3.3 |
3.5
6 |
4
6.6 |
7.5
13 |
12.6/12 21.8/20.8 |
14.7/14 25.4/24.3 |
12.9/17 30.9/29.5 |
22/21 38/36 |
28.4/27 49/26.9 |
36/35 63/60 |
Electric Life(time×10000) |
AC-3 |
|
100 |
100 |
100 |
100 |
80 |
60 |
60 |
60 |
60 |
60 |
60 |
|
AC-4 |
|
20 |
20 |
20 |
20 |
20 |
15 |
15 |
10 |
10 |
10 |
10 |
Attract Coil operating voltage range (AC)t |
0.81.1Us |
||||||||||||
Attract coil power consumption |
AC |
Absorption co-closed VA |
10 |
10 |
10 |
10 |
10 |
17 |
17 |
32 |
32 |
39 |
39 |
|
|
Starting VA |
68 |
68 |
68 |
68 |
69 |
183 |
183 |
330 |
330 |
550 |
550 |
|
DC |
Absorption co-closed VA |
6.5 |
6.5 |
6.5 |
6.5 |
10 |
|
|
|
|
|
|
|
|
Starting VA |
6.5 |
6.5 |
6.5 |
6.5 |
10 |
|
|
|
|
|
|
Rated operating frequency h-1 |
|
AC-3 |
1200 |
1200 |
1200 |
1200 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
