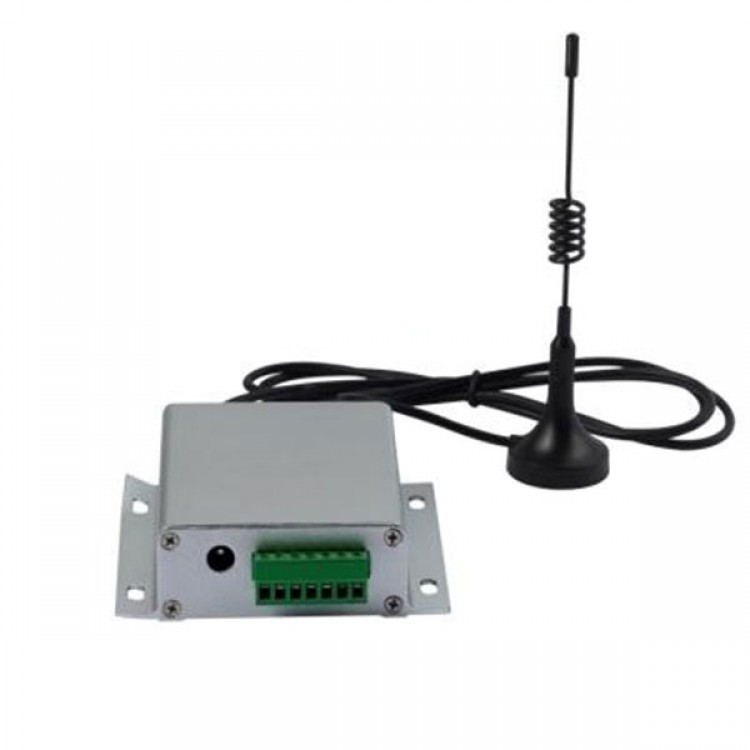

3W 433Msi4432 Long Distance Large Power Serial Port Wireless Data Receiving Transmitting Transparent Transmission Module 5KM

3W 433Msi4432 Long Distance Large Power Serial Port Wireless Data Receiving Transmitting Transparent Transmission Module 5KM

Description:
- SV6300 is a super long distance wireless data transmission module, adopting Silicon Lab Si4432 emitting frequency chip of high performance
- Super low receiving sensitivity, with 3W large output power to guarantee widen range and improved performance
- Module provides multi types of frequency band, channel and network ID to reduce the inteference during transmission
- Users can revise serial and RF relative parameters by PC software or online

Features:
- 6000m transmission distance 1.2K speed rate
- Working band: 4333/470/868/915MHz to choose from
- 40 channel to choose
- 4 bit can configurate network ID
- Dual bit can configurate panel point ID
- Multi types of data transmission can choose from
- GFSK modulation mode
- RSSI field strong output
- Antenna automatic match and bidirectional switch control
- Serial port communication parameter setting diversity
- TTL/RS232/RS485 multi types of interface
- High sensitibity: -121dBm
- Max output power: 3W
- Working voltage: -18V
- Working temp range: -40---85degree
- Weight:: 160g

Application:
- Wireless remote control telemetry
- Remote control meter reading
- Safety guard system
- Industrial data collection
- Home automation telemetry
- Individual data record
- Wireless TTL/ 232/ 485 data communication
- Residential area automation and safety guard
- Health monitor
- Wireless PC external device
- Door entrance guard system
- Robot control

Technical parameters:
- Working voltage range: 9---12---18V
- Working temp range: -40---25---85degree
- Receving current: <30mA
- Transmitting current: <600mA
- Dormancy current: <5mA
- Modulation rate: 1.2--9.6--38.4 Kbpas
- Transmitting power range: 15---35dBm
- Receving sensitivity: -121dBm

Frequency range:
- 433MHZ:  414.92---433.92---453.92mhz
- 470MHZ  70.92---470.92---509.92mhz:
- 868mhz:  849.92---914.92---934.92mhz
- 915mhz: 895.92---914.92---934.92mhz
