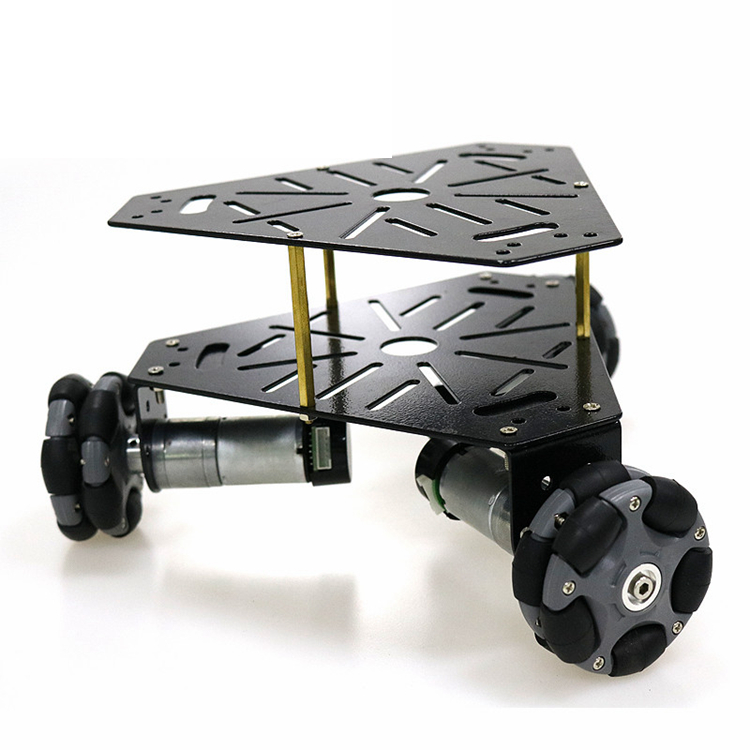

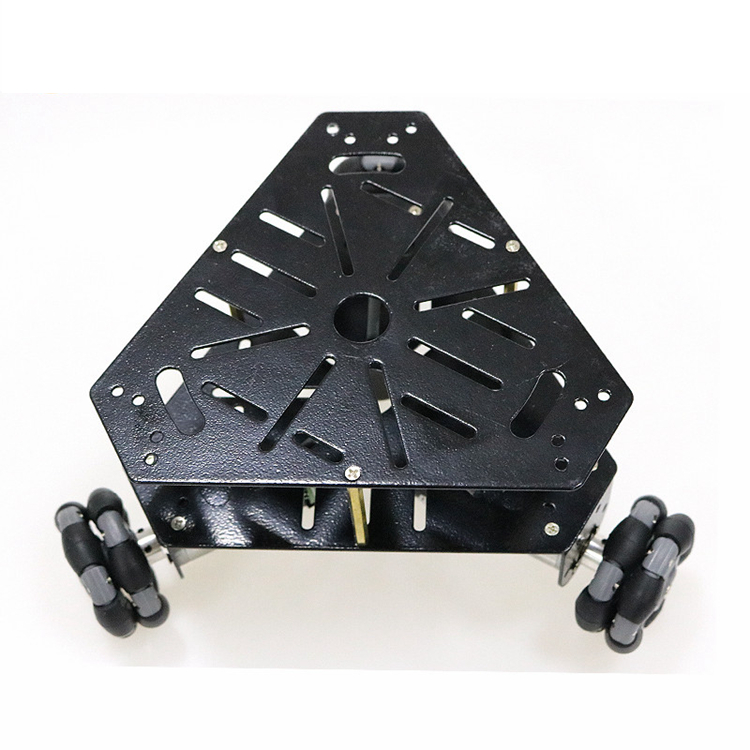

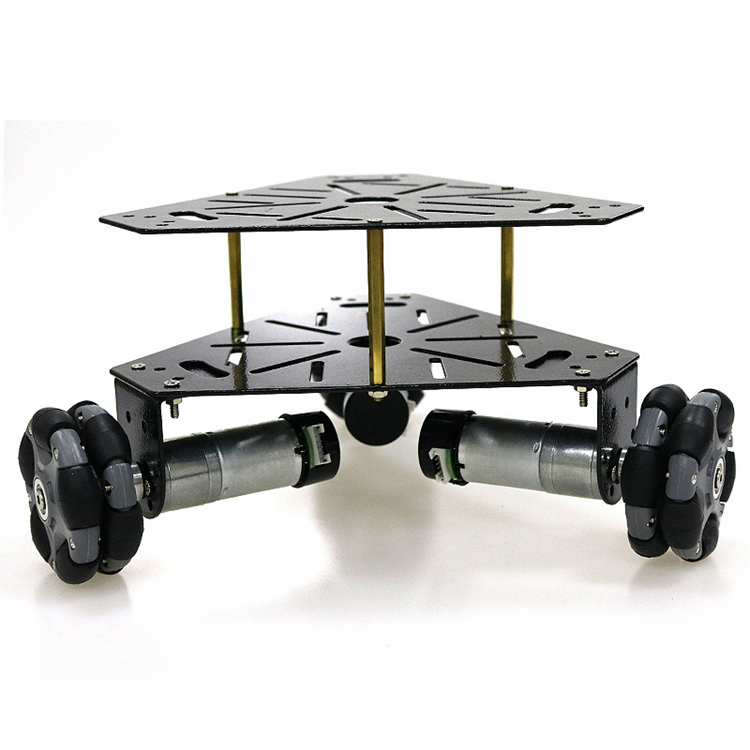

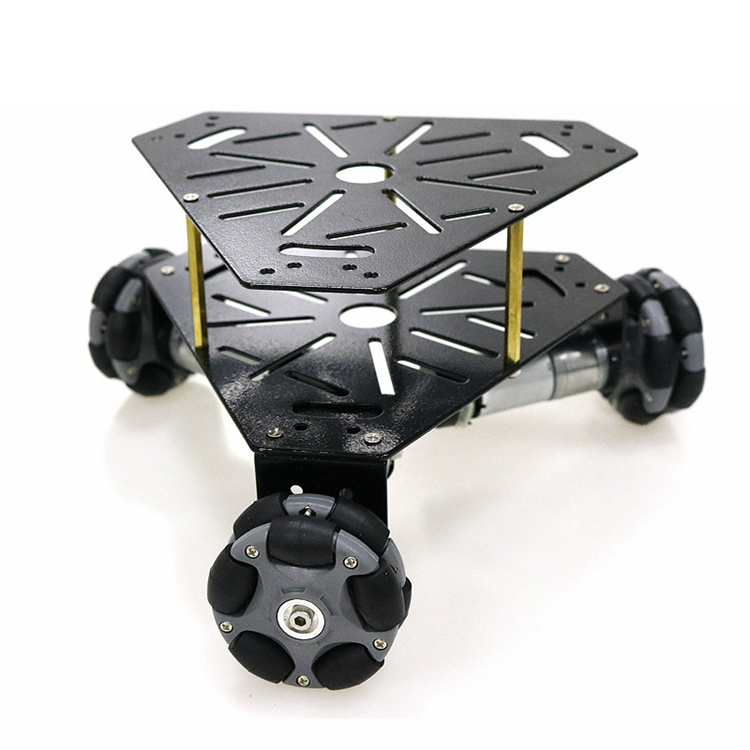

3WD 58mm Mecanum Wheel Robot Car Chassis 2-Tier + 12V 300RPM 25mm Motors w/ Encoder Unassembled
Note:
- Assembling is needed.
- This product requires certain DIY ability and common sense of robot installation and debugging.
Features:
- Three-wheel drive platform uses omnidirectional wheel technology to achieve all-round movement: vertical and horizontal movement;
- Provide enough space for sensors, controllers and other equipment; you can build car layers by yourself;
- Fewer accessories and easy installation.

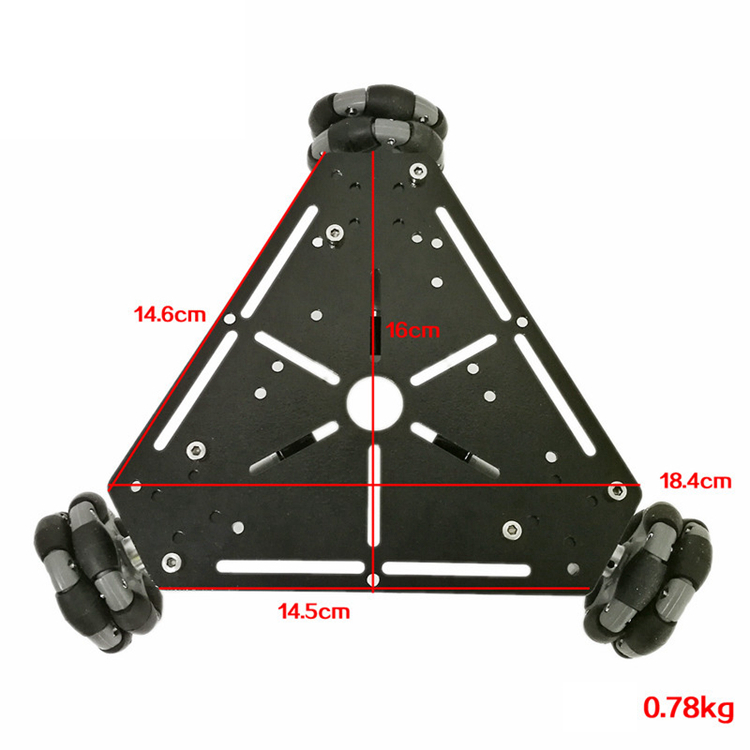

Specifications:
- Material of Omnidirectional Wheels: nylon
- Wheel Diameter: 58mm
- Bottom Plate Material: steel
- Motor: 25mm 9V motors
- Product Weight: about 0.78kg
- Product Load Capacity: about 3-9KG (determined by motor speed and voltage)

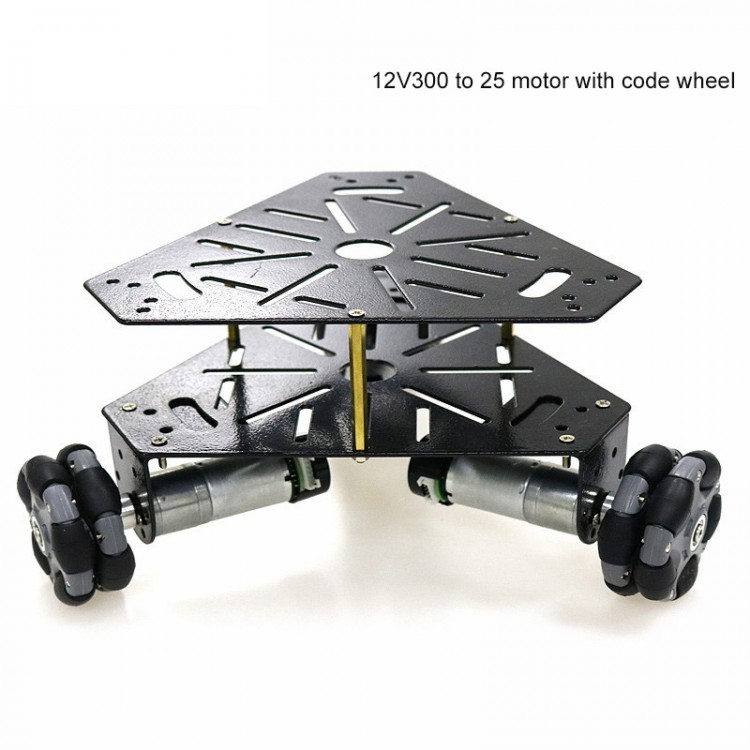

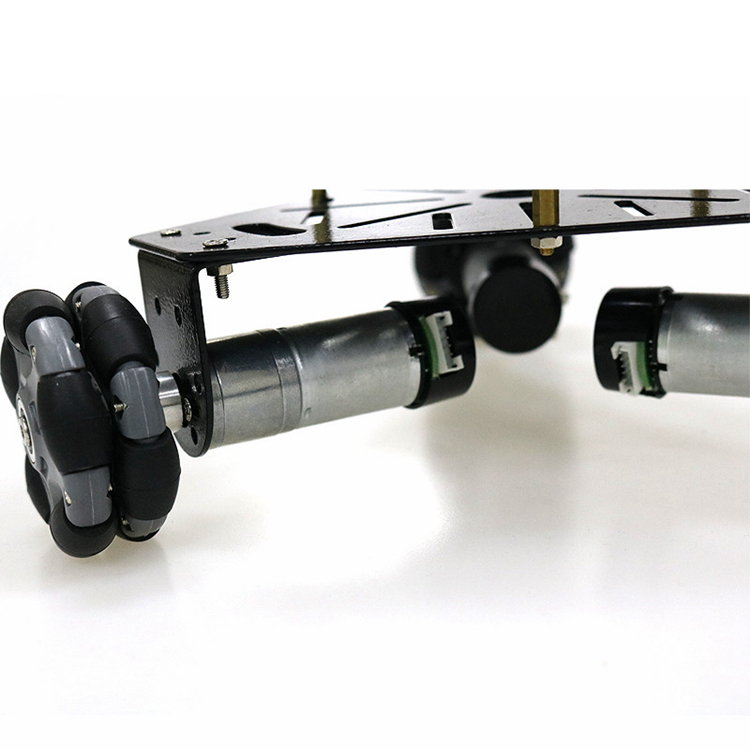

12V Motor with Hall Sensor Encoder:
- 25mm DC geared motor
- Rated Voltage: DC 12V
- Speed: 300 rpm
- Reducer Reduction Ratio: 1:34
- Max. Stalling Torque: 13kg.cm
- Stalling Current: 4.8A
- Shaft depth: 14.5mm
- Screw: M3.0
- Shaft Diameter: phi4mm, D3.5
- With code disc to test speed
Package Included:

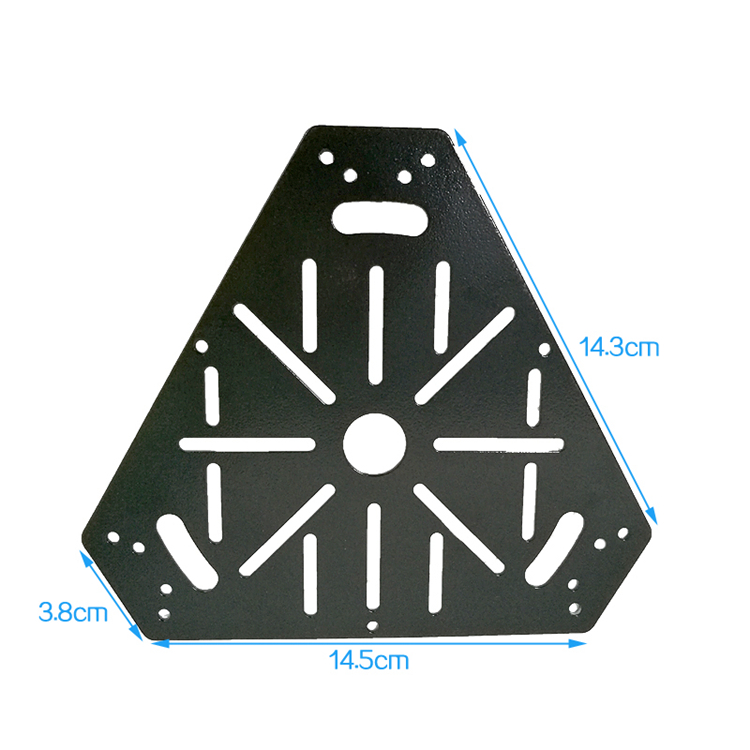

- 2 x Triangle Bottom Plates
- 3 x Motors
- 3 x Motor Brackets
- 3 x Universal Wheels
- 1 x Set of Screws
