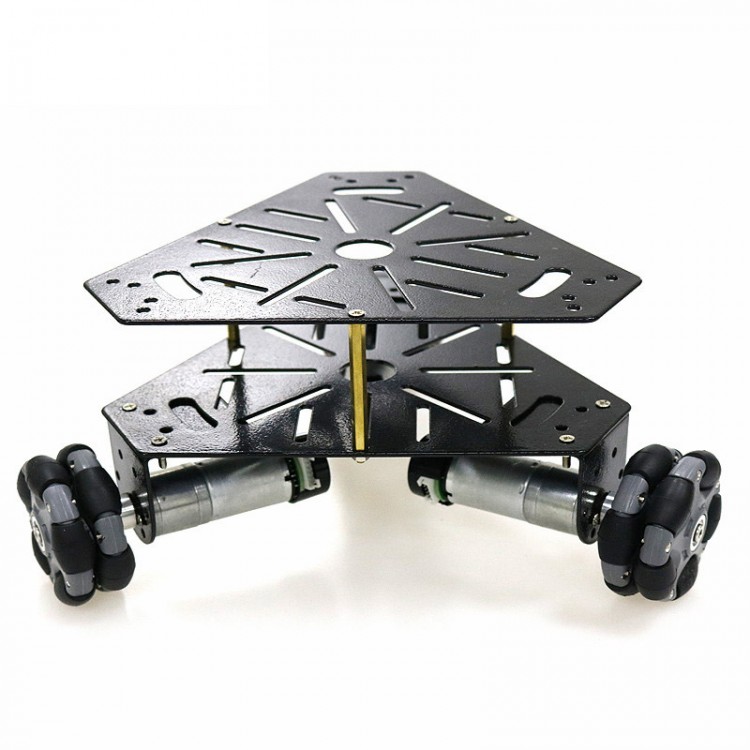

3WD 58mm Mecanum Wheel Robot Car Chassis 2-Tier + 9V 150RPM 25mm Motors w/ Encoder Unassembled

3WD 58mm Mecanum Wheel Robot Car Chassis 2-Tier + 9V 150RPM 25mm Motors w/ Encoder Unassembled

Note:
- Assembling is needed.
- This product requires certain DIY ability and common sense of robot installation and debugging.

Features:
- Three-wheel drive platform uses omnidirectional wheel technology to achieve all-round movement: vertical and horizontal movement;
- Provide enough space for sensors, controllers and other equipment; you can build car layers by yourself;
- Fewer accessories and easy installation.

Specifications:
- Material of Omnidirectional Wheels: nylon
- Wheel Diameter: 58mm
- Bottom Plate Material: steel
- Motor: 25mm 9V motors
- Product Weight: about 0.78kg
- Product Load Capacity: about 3-9KG (determined by motor speed and voltage)

9V Motor with Encoder:
- 25mm DC carbon brush motor
- With hall sensor encoder
- Output Rate: 150±10% rpm
- Load Current: 1200mA Max.
- Stalling Current: 4500mA Max.
- Stalling Torque: 9.5kgNaN
- Load Speed: 100±10% rpm
- Load Torque: 3000gNaN
- Load Noise: 56dB
- Working Voltage: 9V
- Shaft depth: 14.5mm
- Axial Clearance: 0.05-0.50mm
- Screw: M3.0
- Shaft Diameter: phi4mm, D3.5
- Code Disc Parameters: 2 pulses/revolution
- Sensor Working Voltage: 3-5V

Package Included:
- 2 x Triangle Bottom Plates
- 3 x Motors
- 3 x Motor Brackets
- 3 x Universal Wheels
- 1 x Set of Screws
