4-20mA Signal Generator Current Loop Signal Generator 2-Wire Panel Mounted Support 2/3/4 Wires

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.10
  • Price in reward points: 131 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.84 $12.58 $12.18 $11.66 Contact US
Quantity:

4-20mA Signal Generator Current Loop Signal Generator 2-Wire Panel Mounted Support 2/3/4 Wires

Features:

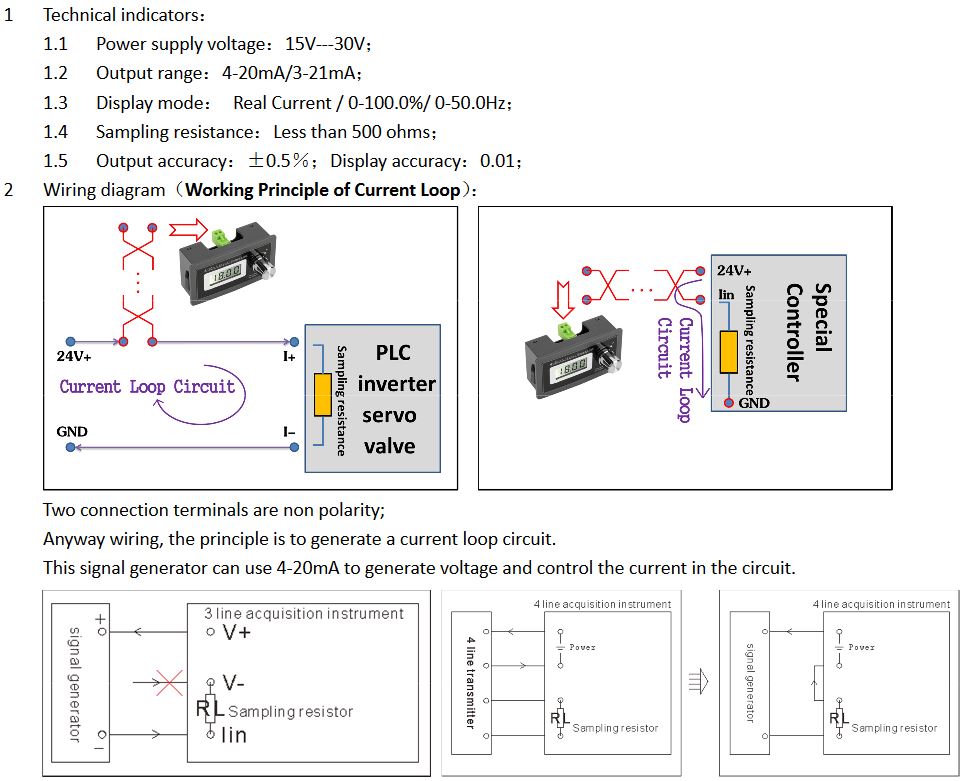

- No-source two-wire 4-20mA current loop, wiring compatible with 2, 3, 4 wire system

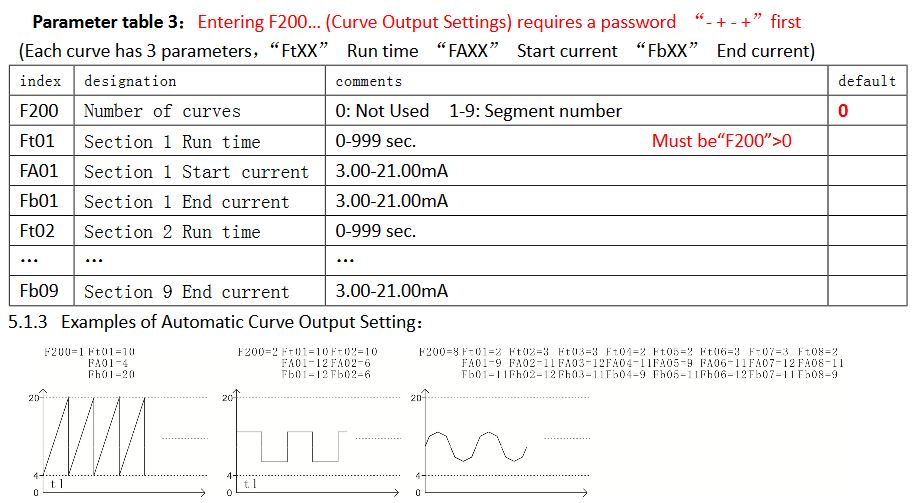

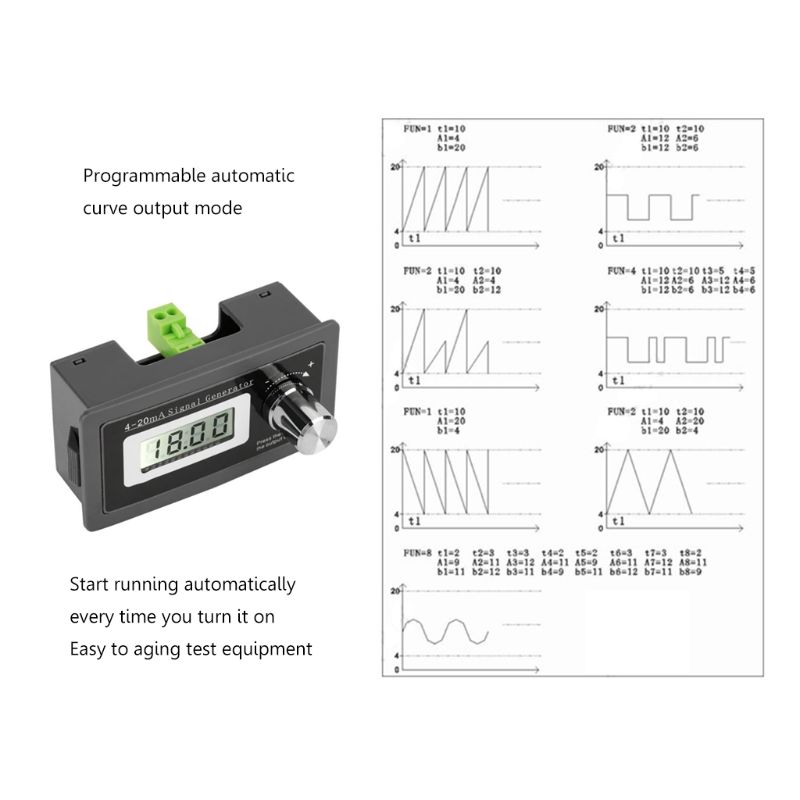

- 9 programmable output (can simulate the actual environment of dynamic testing, each section can be set up t running time /A current /b current).

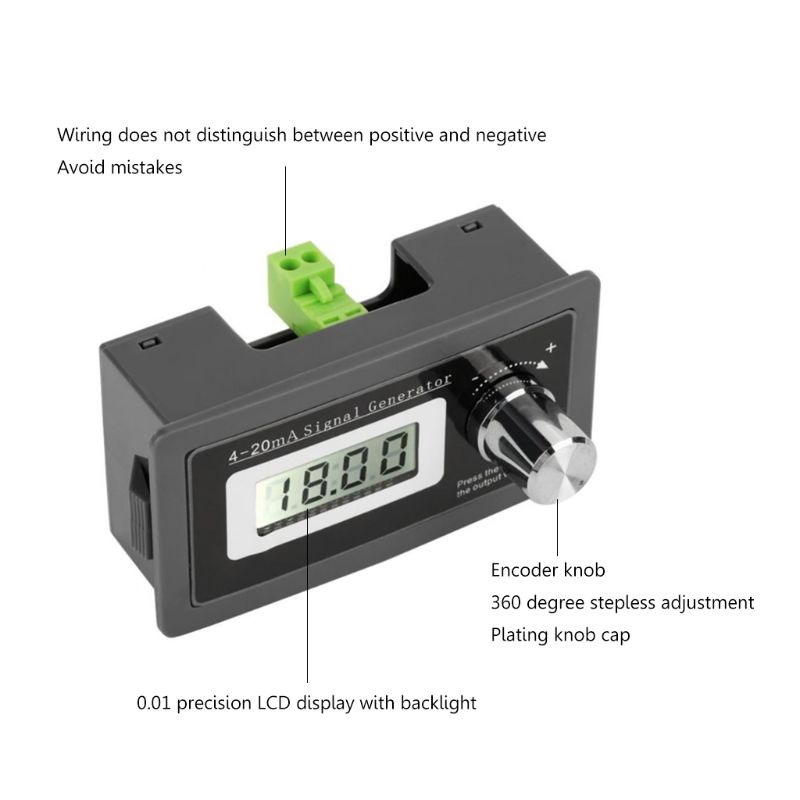

- Digital rotary encoder adjustment (the use of potentiometer, easily affected by temperature and humidity, the resistance value will change).
- Can be connected to the positive and negative (two-wire system, no matter how wiring, can work, will not burn meter).

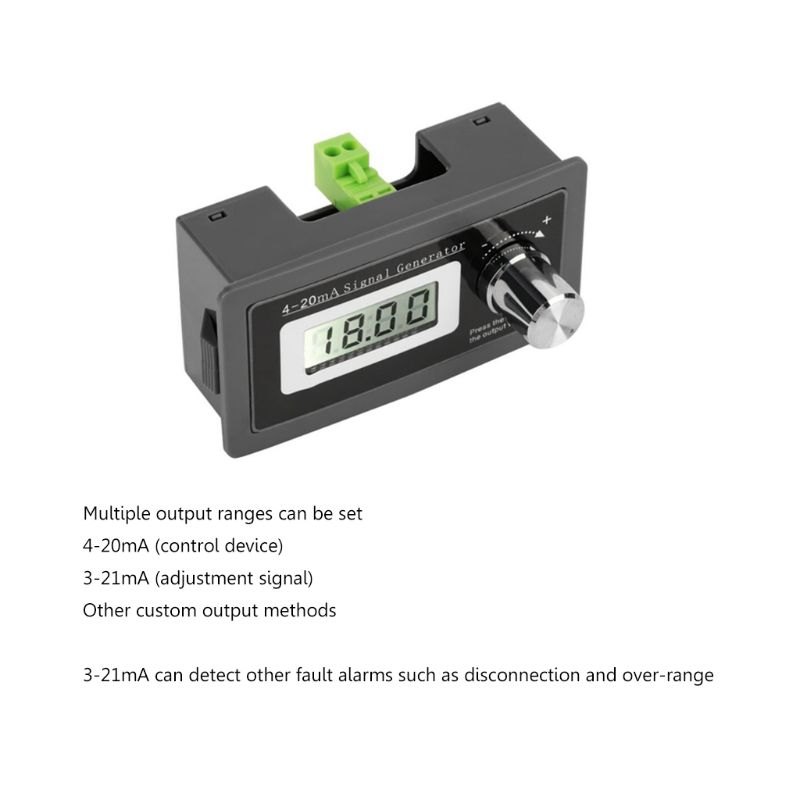

- Output range can be set: 4-20mA (control device) / 3-21mA (debug signal)
- High precision, good linearity (Output accuracy: ±0.5%; Display accuracy: 0.01)

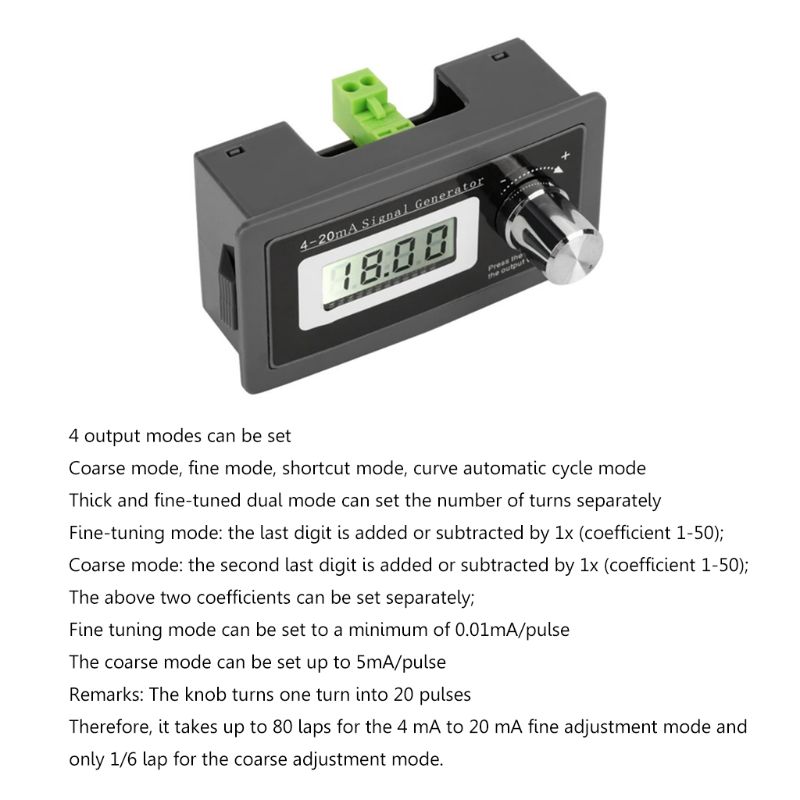

Coarse and fine adjustment modes can be set for quick and accurate adjustment

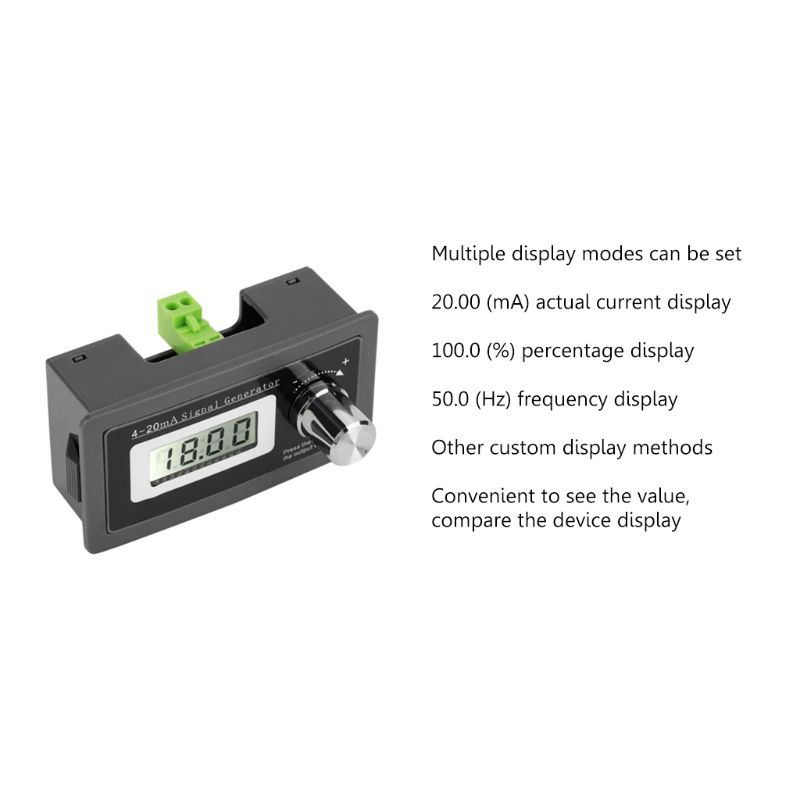

- Display mode: Actual current/100.0%/50.0Hz, LCD (with backlight).

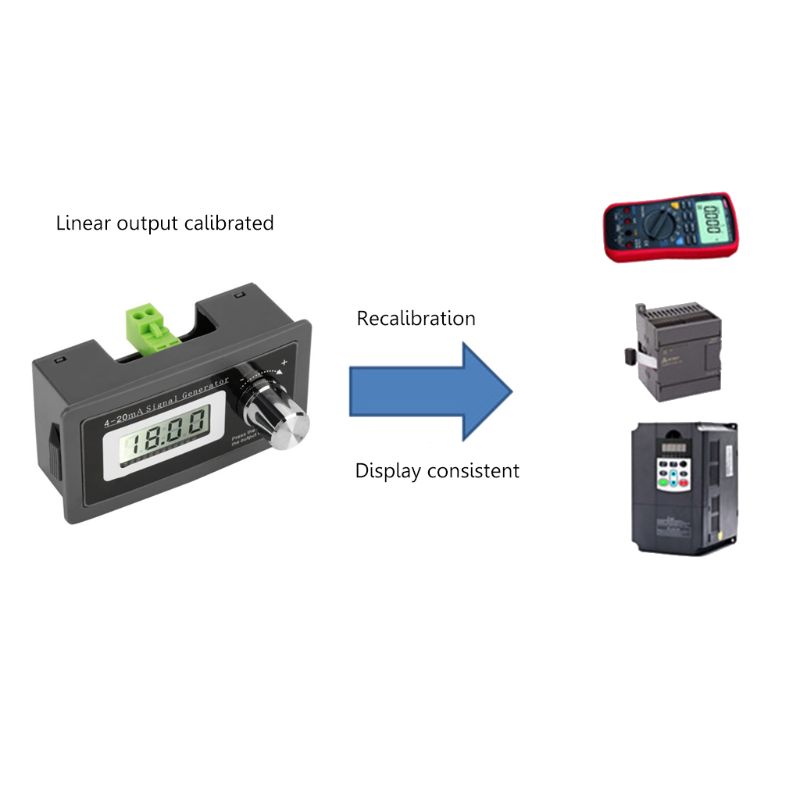

- Linear output can be calibrated

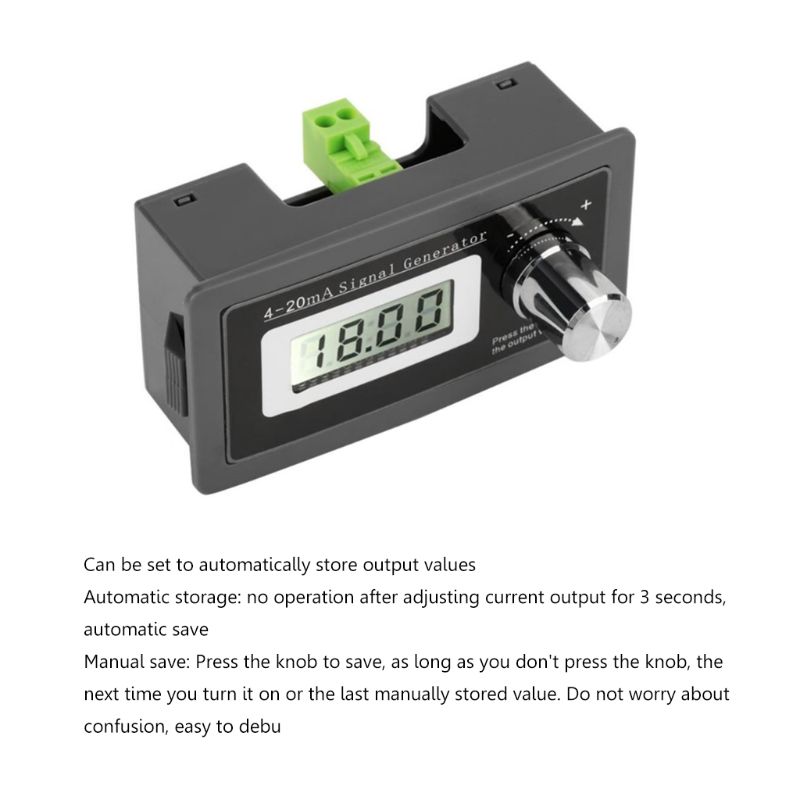

- Can be set to automatically store output values: automatic / manual

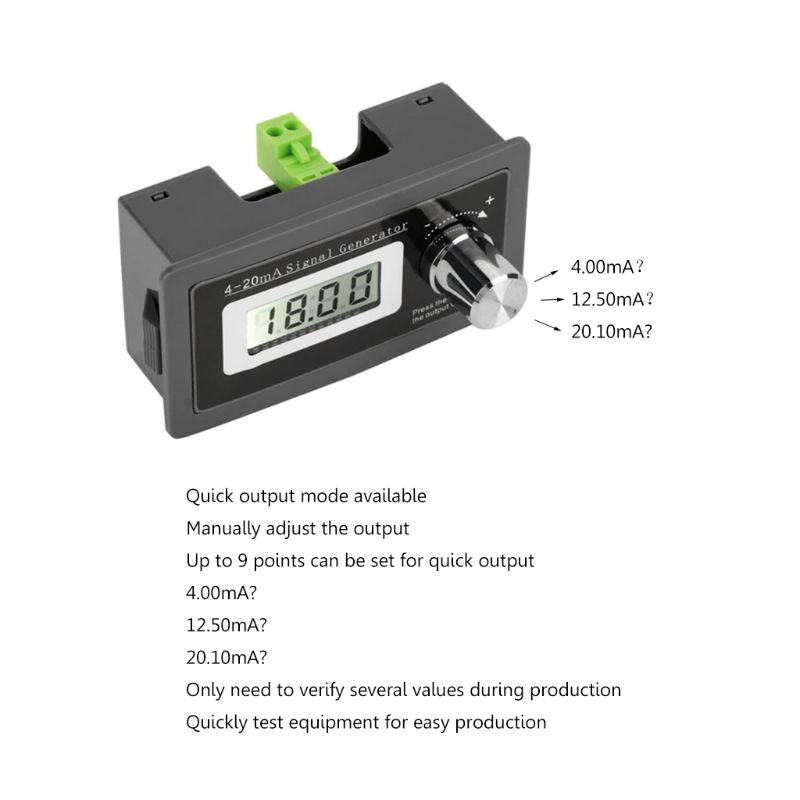

- 2-9 quick adjustment output points can be set
- Imported chips, ultra-low power consumption, no heat, more stable output.

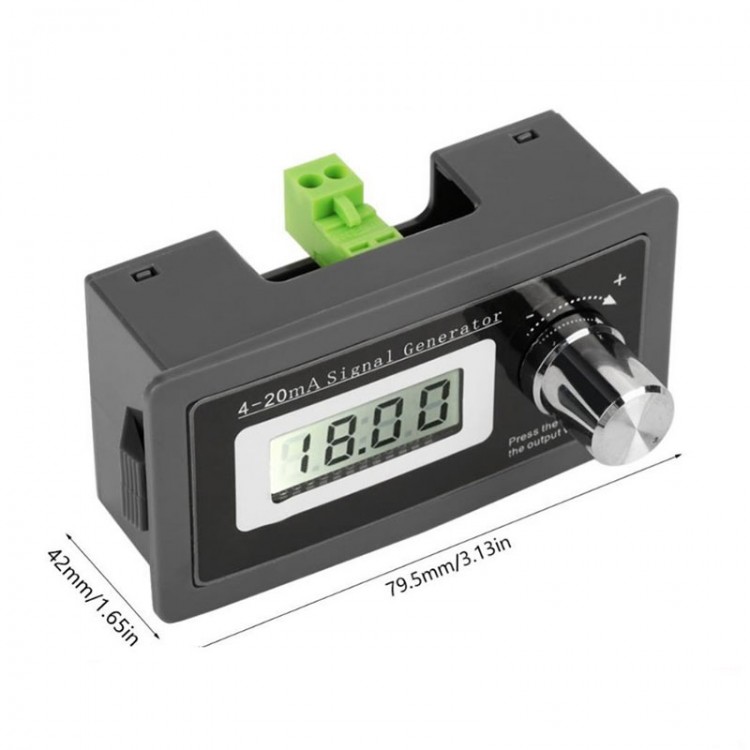

- The shell is beautiful and easy to install.

Package Included:
- 1 x Signal Generator

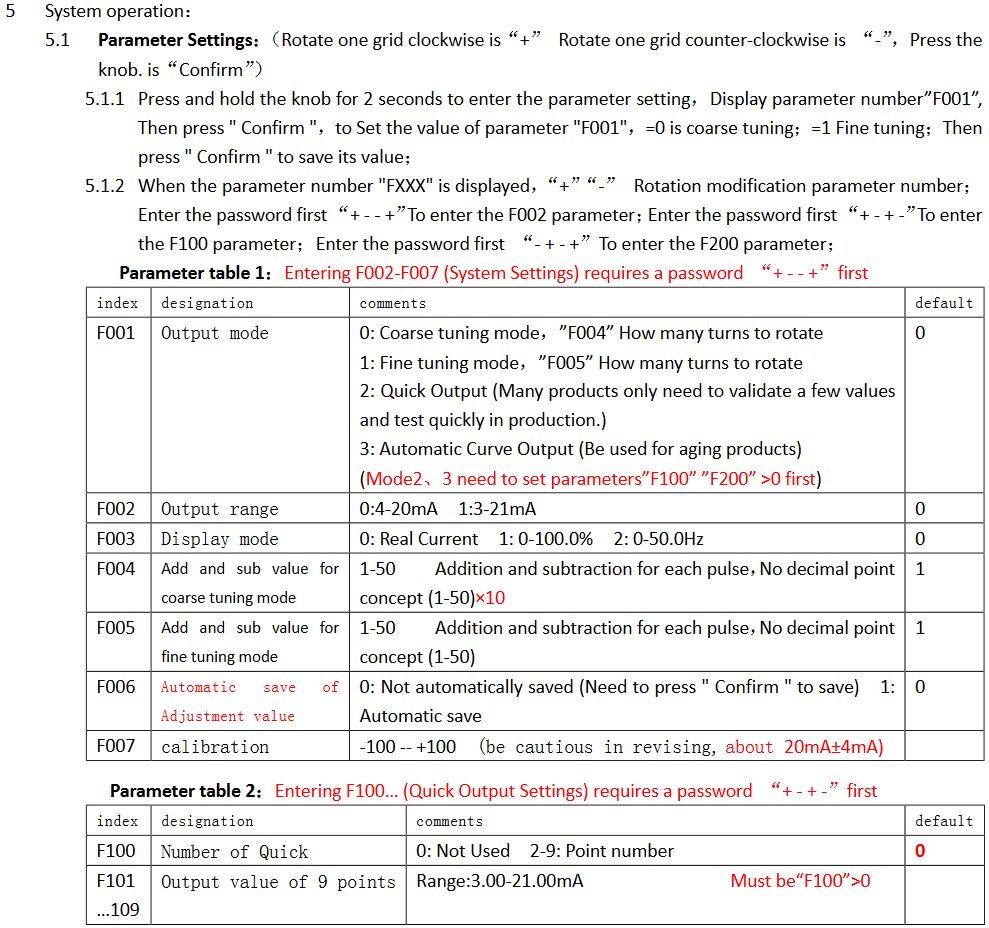

Download User Manual:
http://pro564176.pic1.ysjianzhan.cn/upload/JS-420ISG-V2_UM_V201EN.pdf
