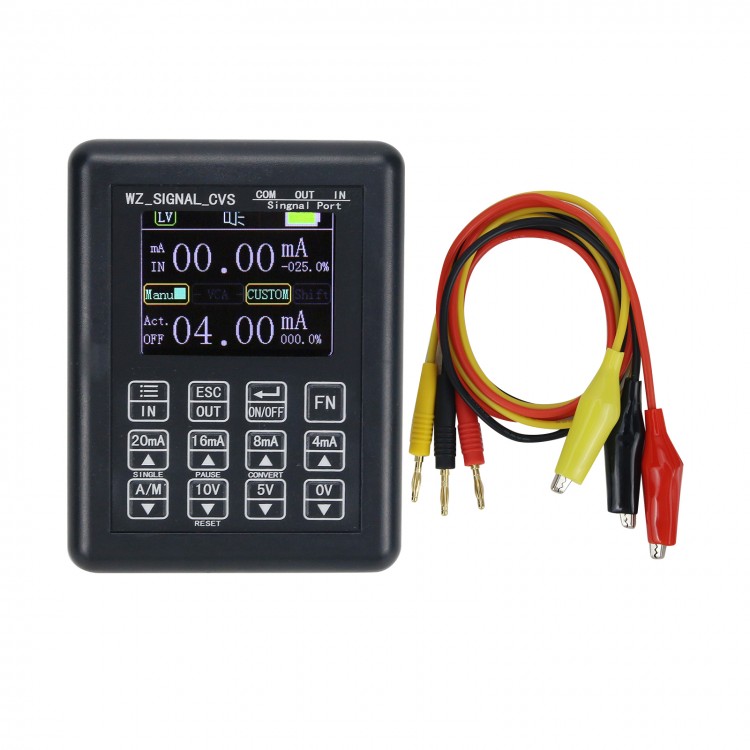

4-20mA Signal Generator Current Voltage Transmitter Calibrator Signal Source w/ Input Output Conversion
Features:
-Active current output: range 0-24mA, resolution 0.01mA, maximum load 750Ω
-Passive current output: range 0-24mA, resolution 0.01mA, external power supply up to 30V
-Voltage output: range 0-12V, resolution 0.01V
-Both current and voltage have automatic output function, three modes of single rise, single fall and cycle can be selected
-24V voltage output: drive current 24mA, with loop current display
-Current input measurement: range 0-24mA, resolution 0.01mA
-Voltage input measurement: range 0-30V, resolution 0.01V
-With input convert to output mode, divided into voltage convert to active current mode, passive mode and current convert to voltage mode
(fast input mode: no matter what input mode you can enter the corresponding fast input mode with one button)
-The output has a custom function, and the upper and lower output limits can be set arbitrarily
-Imported color screen, clear display
-Powered by large-capacity lithium battery, 20mA continuous output is not less than 6 hours
-MICRO USB interface for power supply and charging, the same specification as the smart phone data cable
-Use environment temperature: 0℃-50℃ without condensation
-Internal reverse connection and overcurrent protection, protection voltage 30V
-Small size: 90mm*70mm*28mm
Package List:
1 x Signal Generator
