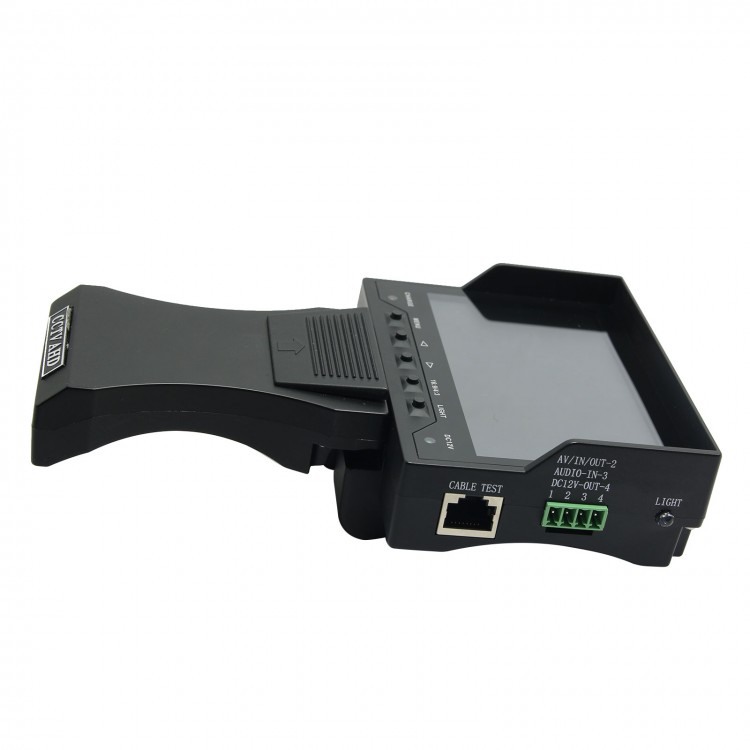

4.3 inch TFT 1080P Audio Video Security CCTV Camera Tester AHD-CNVS Test Monitor

4.3 inch TFT 1080P Audio Video Security CCTV Camera Tester AHD-CNVS Test Monitor

Description:
CCTV installation works best detection system is equipped with built-in lithium battery, video input, audio input, seven kinds of standard color bar output terminal and the DC12V power supply, only palm-sized, easy to carry operations

Through DC power out enables user to inspect; correct camera or confirm installation. It's convenient for video equipment that helps communication and discussion with clients during installation process.
Support Audio/Video test both

Application:
- Monitor: Camera quality inspecting; image of installation correcting; inspect and repair of monitor system circuit…… etc.
- Portable product: Portable product is able to use in any place and any time. It is easy to hold and do not need complicated equipment that hinders the inspecting and repairing
- Monitor: 4.3 "high image resolution monitor enable to show clear image that fits any place to use.
- Long work time: Equips with Lithium battery of high capability. Each 6hours recharge durables 5 -8 working hours
- Humanized design of appearance: Hand-hold design for professionals. Easy operation without taking off gloves speeds your works. Clasp ring at bottom fits to all chains and use in all environments
- Support DC power for camera: It's convenient for user to check camera condition and correct direction of camera, so to make installation and repairing easier
The net line test function: Can carry out can see to turn to show that the net line conjunction circumstance and the net lines link the sequence.

All Function introduction:
- 4.3”TFT LCD
- When inserting transformer charging , the indicator( red) is bright, enough power will put out instructions
- The indicator( green) is bright after the switch start, indicator will put out when switch is close.
- Press Function menu button to open or close LCD setting menu .
- Open function menu, press this button to adjust the brightness, contrast in color saturation. Volume Incre. Language Selection
- Select the screen ratio of 16:9 or 4:3
- Lighting switch.
- 5V power input AC / DC adapter, DC5V 1.0A.
- Power switch .
- Camera 12V power output, video, audio signals input through the interface, output, the display on the host screen
- Reset switch
- H brightness LED lighting work light
- Detection port
- Folding keys

Specification:
- Display:4.3"TFT Color LCD
- Number of Pixel:480RGB(H)X272(V)
- Video In:Video In *1 (BNC connector)
- Export:7 kinds of color bar signal output
- DC power out *1
- Support CCD camera of power source/Max electric currency 500mA
- System Format:NTSC / PAL
- Language:Support English/Chinese
- Battery Specification:Built-in rechargeable Lithium battery : 3.7V 2600mA/h
- Support DC 12V/1000mA
- Dimension:178mm (L) x110mm (W) x 40mm(H)

Package Included:
- 1*Camera tester
- 1*CCD power cord DC12V OUTPUT & AV cable(2 in 1)
- 1*RJ45 adaptor
