4.3" Touch Screen Display 480*272 with RS232 RS485/422 TTL CAN Communication Ports GMT43

Availability: In stock, usually dispatched in 1 business day

  • Price:$66.67
  • Price in reward points: 667 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $65.34 $64.00 $62.00 $59.34 Contact US
Quantity:

4.3" Touch Screen Display 480*272 with RS232 RS485/422 TTL CAN Communication Ports GMT43

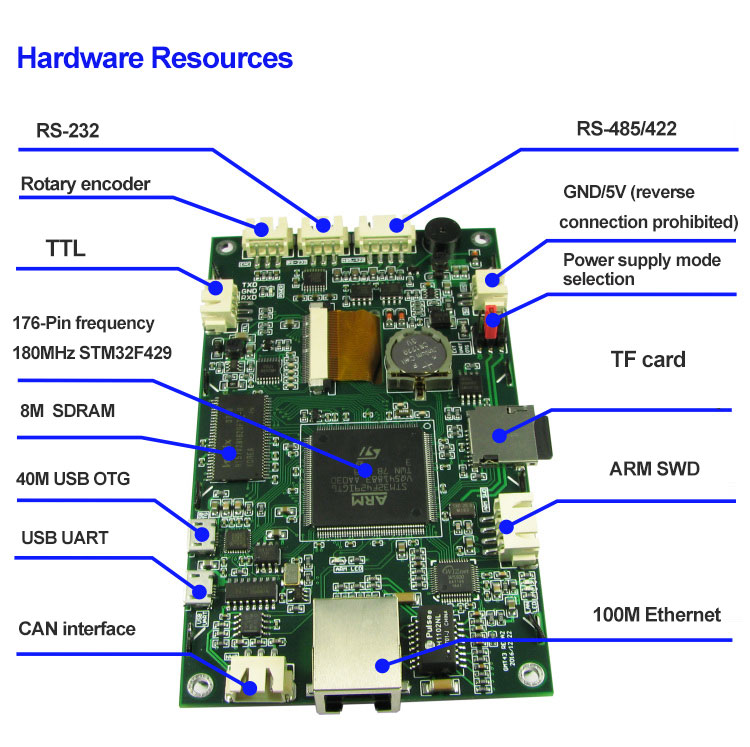

Features:

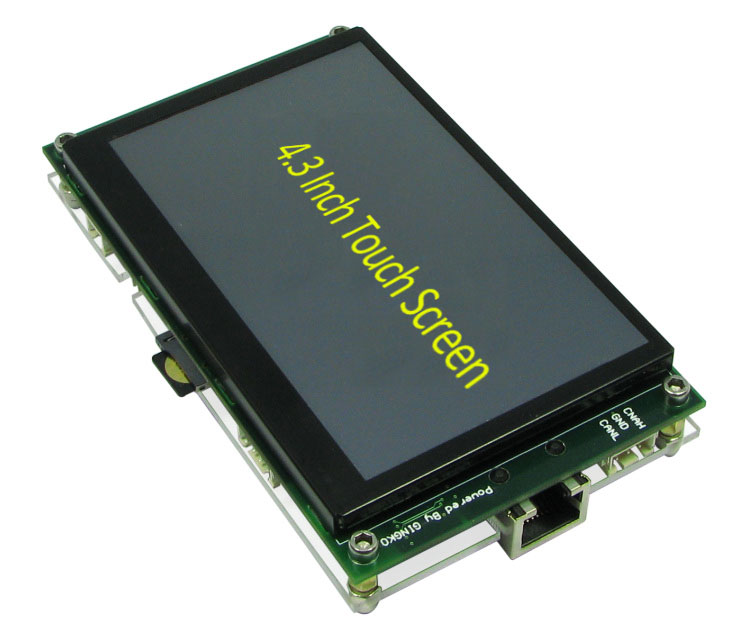

- 4.3-inch true color LCD screen, resolution 480 * 272,65536 color standard touch screen;
- STM32F429 chip, the performance is stronger;
- Built-in high-speed USB OTG interface, as device communication speed approaches 40M bytes / second;
- Built-in 100M Ethernet circuit;
- Built-in USB to USART interface, can be used for debugging background;

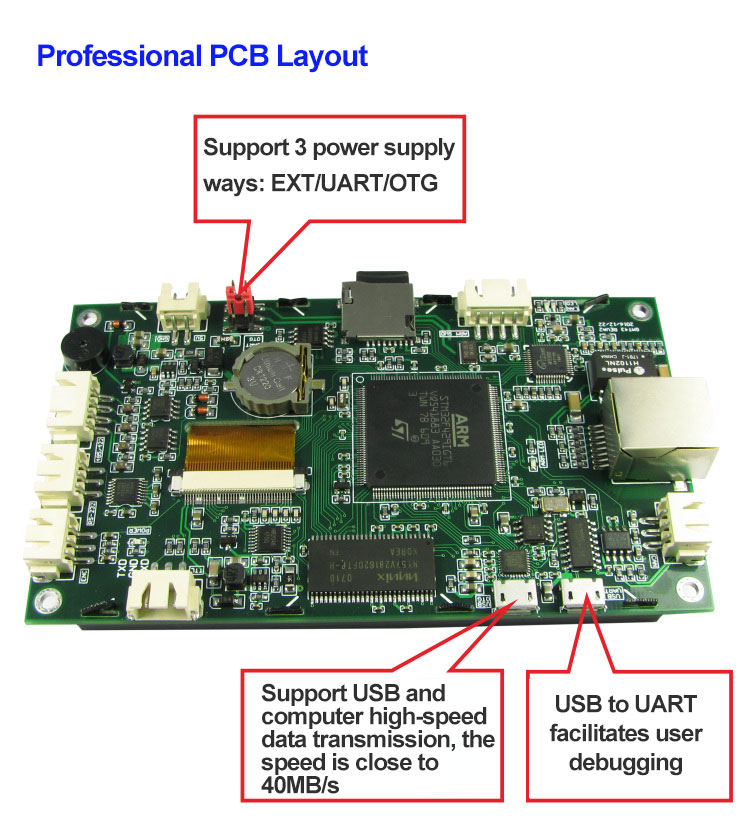

- Can be powered by external power supply (5V power supply), can be powered directly by USB interface;
- With RS-232, RS-485 / 422, TTL, CAN communication interface;

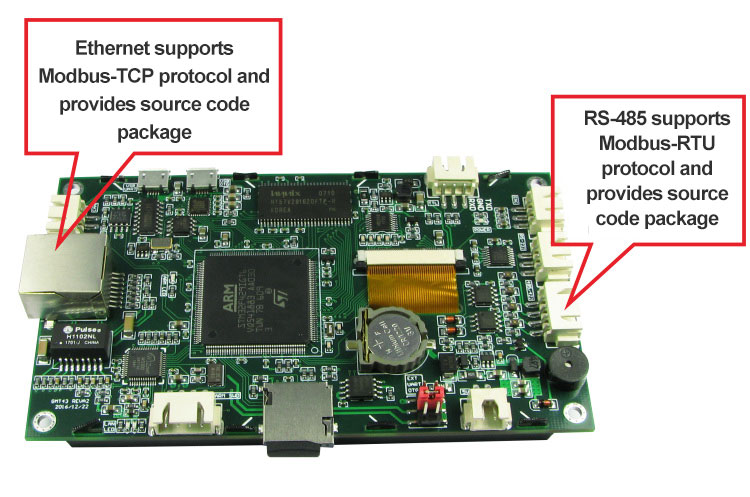

- Support Modbus-TCP, Modbus-RTU protocol;
- Can be connected to a rotary encoder;
- 8M byte SPI Flash;
- 16M bytes of SDRAM memory as a liquid crystal cache.

Package Included:
- 1 x GMT43 LCD Display Module
- 1 x Set of Acrylic & Fixing Pillars Screws
- 1 x Ethernet Cable
- 2 x Micro USB Data Cables
- 1 x Micro USB U Disk Reader Adapter Cable
- 1 x 128M TF Card (Inserted on the board)
- 1 x 4P Flat Cable
- 4 x 3P Flat Cable
- 1 x 2P Flat Cable
- 1 x Touch Screen Pen
- 1 x Precaution Paper
- 1 x Instructions

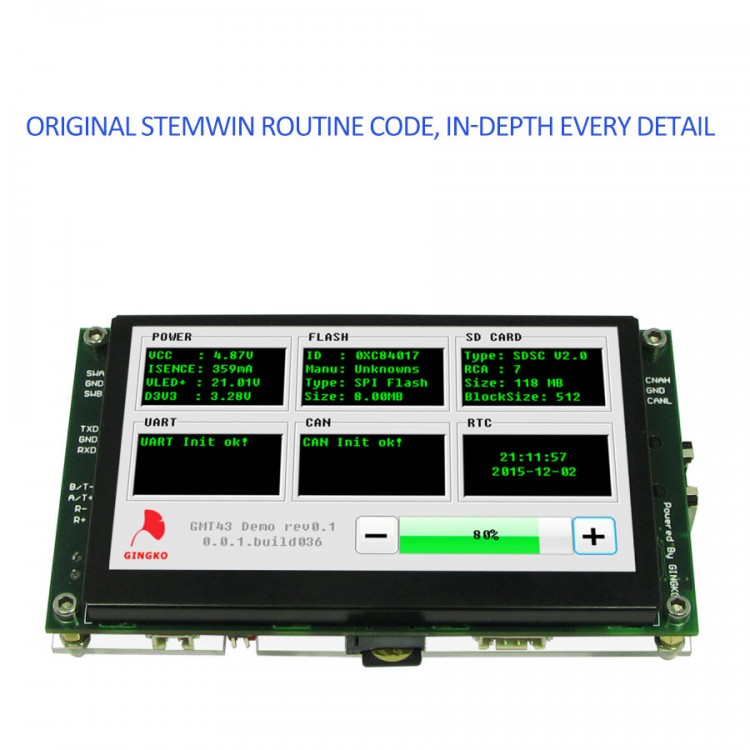

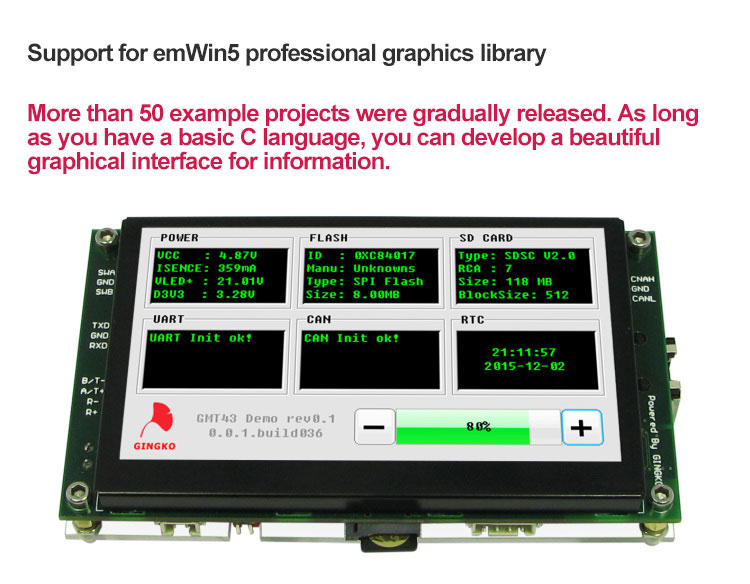

[33 routines for STemWin5.22]:

Routine 1: Introduction to emWin series tutorials
Routine 2: display "hello, world"
Routine 3: Switching the display direction
Routine 4: display text
Routine 5: display values
Example 6: Set the color
Example 7: Draw basic graphics
Example 8: drawing a bitmap
Routine 9: drawing a stream bitmap
Routine 10: bmp picture display
Example 11: GIF image display
Routine 12: FontCvt generated font
Routine 13: Put the font in the external memory
Routine 14: xbf external font
Routine 15: Touch calibration example-five-point calibration method
Routine 16: window manager
Routine 17: Window object-Button
Routine 18: jpeg picture display
Routine 19: Window object-Checkbox
Routine 20: window object-Dropdown
Routine 21: Window Object-Edit
Routine 22: Window object-Framewin
Routine 23: Window object-Graph
Routine 24: Window Object-Header
Routine 25: Window object-Iconview
Routine 26: Window object-Listbox
Routine 27: Window object-Listview
Routine 28: Window object-Menu
Routine 29: window object-MESSAGEBOX
Routine 30: Window object-MULTIEDIT
Routine 31: window object-MULTIPAGE
Routine 32: window object-PROGBAR
Routine 33: Window object-RADIO

[23 ARM routines]:

Routine 1: LED flashing
Routine 2: USART communication
Routine three: CAN bus communication
Routine four: SYSTICK tick timer
Routine five: IWDG independent watchdog
Routine six: WWDG window watchdog
Example 7: Pulse Width Modulation PWM
Example 8: ADC
Example 9: Real-time clock RTC
Routine ten: direct memory access DMA
Routine 11: Timer
Routine 12: SDIO bus
Routine 13: FATFS file system
Routine 14: MODBUS TCP communication of Ethernet function
Example 15: TCP client with Ethernet function
Routine 16: TCP server with Ethernet function
Routine 17: UDP communication with Ethernet function
Example 18: HTTP server with Ethernet function
Routine 19: DHCP function of Ethernet function
Routine 20: DNS function of Ethernet function
Routine 21: DMA application of Ethernet function
Routine 22: USB-enabled communication device (CDC)
