Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $187.19 | $183.37 | $177.64 | $170.00 | Contact US |

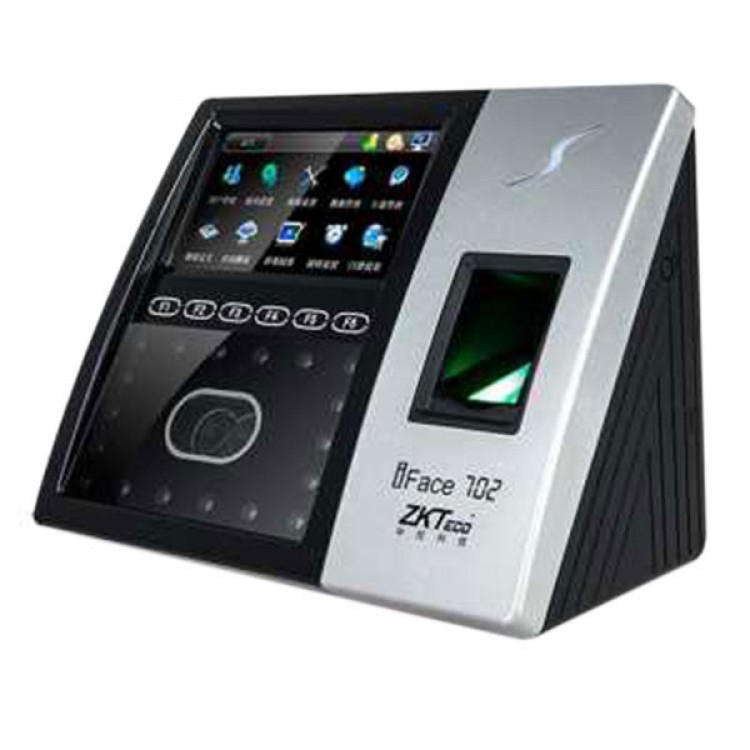

4.3” ZKsoftware iface702 Facial Recognition Fingerprint Clock Access Control
Product Introduction:
- iFace702 multi-biometric identification time attendance product adopts ZKSoftware latest ZEM600 platform with ZK Face 5.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition infrared camera which enables user identification in the dark environment. The appearances of iFace series are designed by Germany professional design company according to the view of human engineering. All operations of iFace device are designed to be finished on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-cut.
System Specification:
1. Integration of Fingerprint, Facial, RFID, and Password identification methods.
2. Elegant design according to the view of human engineering
3. 4.3 inch TFT touch screen, easy operation, fashionable and simple interface.
4. 6 user-defined function keys
5. Simple access control function reduces extra door control equipments cost for users.
6. Webserver management software via IE browser.
7. Extendable scheduled-bell.
8. Infrared optical system enables user identification in dark environment.
9. Optional built-in backup battery support extra 4 hours continuous operation if power cut.
10. Optional built-in wireless WiFi or GPRS communication makes easier device installation without wiring.
Processor | Multi-Bio 600 |
Memory | 256M Flash, 64M SDRAM |
Hardware Platform | ZEM600 Multi-Medium Development Platform |
Fingerprint Sensor | ZK Optical Fingerprint Sensor without film |
Camera | High Resolution Infrared Camera |
Display | 4.3 inch TFT touch screen |
Face capacity | 400 (1:N) |
Fingerprint capacity | 2000 |
ID Card capacity | 10,000 (Optional ) |
Logs capacity | 100,000 |
2000mAh backup battery | Optional |
Communication | TCP/IP,RS232/485 |
USB-HOST | Two USB-Host |
Wireless Wi-Fi | Optional |
Time attendance Standard functions | Extendable Scheduled-bell, DLST, Self-Inquiry, Work Code, Short Massage, T9 input Webserver |
Simple A&C function | electric lock, door sensor, exit button, Wiegand output |
Optional functions | WIFI, GPRS, serial printer, Mifare/HID/iClass, backup battery |
Power supply | 12V3A |
Verification Speed | ≤2 sec |
Operating temp | 0c- 45c |
Operating Humidity | 20%-80% |
Dimension | 193.6*165.2*86mm (Length*Width*Thickness) |
Gross Weight | 1.9 kg |
