4-Axis CNC Motion Controller Offline DDCS V3.1 + CNC 4-Axis MPG Pendant Handwheel 5V 100PPR

4-Axis CNC Motion Controller Offline DDCS V3.1 + CNC 4-Axis MPG Pendant Handwheel 5V 100PPR

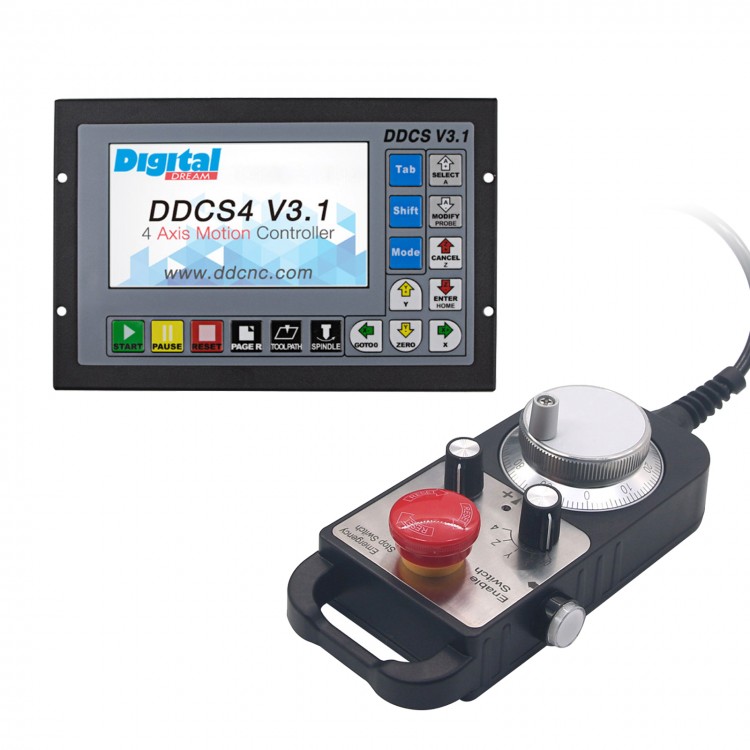

4-Axis Motion Controller:
Specifications:
- 16 opto isolated digital inputs, 3 opto isolated digital outputs;
- Upgrade algorithm, support soft interpolation, fixed arc interpolation bug of the old version;
- Analog spindle control 0-10V spindle control (can be modified as PWM output);
- 4 axis motor Control. Differential Pulse and direction output signal,Max.500Khz per axis；
- ARM9 main control chip, FPGA core algorithm chip;
- 5 inches TFT screen, resolution ratio: 480x272,17 operation keys;
- 24VDC power input, minimum Current is 0.5A;
- USB flash disk support for G code file input, no size limited of the G-code file ;
- 1GB internal memory;
- Support standard MPG;
- Jog function for each axis (continuous, step, defined distance);
- Support the operation of quickly specify the running position;
- Support for “Power Cut” recovery. Data is automatically saved；
- Support the origin and Limit share the same Input ports;
- The controller only support NPN type limited switch.
- Front Panel Size: 191 x 128 x 5mm
- Main Body Size: 191 x 128 x 37mm
- Hole Spacing: 182.5 x 59mm

4-Axis MPG:
Description:
- The CNC 4 Axis handheld controller MPG Pendant with x1, x10, x100 selectable. You are bidding one complete unit of the MPG pendant with Emergency stop for 4 axis CNC machine, it equipped with our popular machined MPG unit with 4 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.
- All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller which add great control flexibility to the system.

Features:
- x1, x10, x100 switch
- X, Y, Z, 4th axis selector switch
- LED indicator
- With Emergency stop
- High quality professional chassis
- 6ft extendable high quality shielded cable cord
- Magnetic base holder can place anywhere on the machine steel surface
- Required 5V+, 150mA, power for MPG
- Phase output is A, /A and B, /B;
- TTL output, drive capability +-20mA;

Support CNC system: For Taiwan Pou Yuen M600 M500 M520i T300 series, Higerman, HANUC, GSK, opened NC, KND, Siemens, the NUM, Spain FAGOR (NEW, 8055I) and so on.

Wiring: User can wire this unit to the CNC system with easy.

Package Included:
- 1 x Set of 4-Axis Motion Controller + 4-Axis MPG
