4 Axis MACH3 CNC Breakout Board USB Stepper Motion Controller Card 12-24V 100KHz +USB Cale+CD

4 Axis MACH3 CNC Breakout Board USB Stepper Motion Controller Card 12-24V 100KHz +USB Cale+CD

Product Detail:
- Motor type: Stepper Motor
- Model Number: MACH3 USB 4 axis
- Voltage: 24V
- Power Supply: DC
- Frequency: 100KHZ
- Axis: 4 Axis
- Voltage: 12-24V

Package Included:

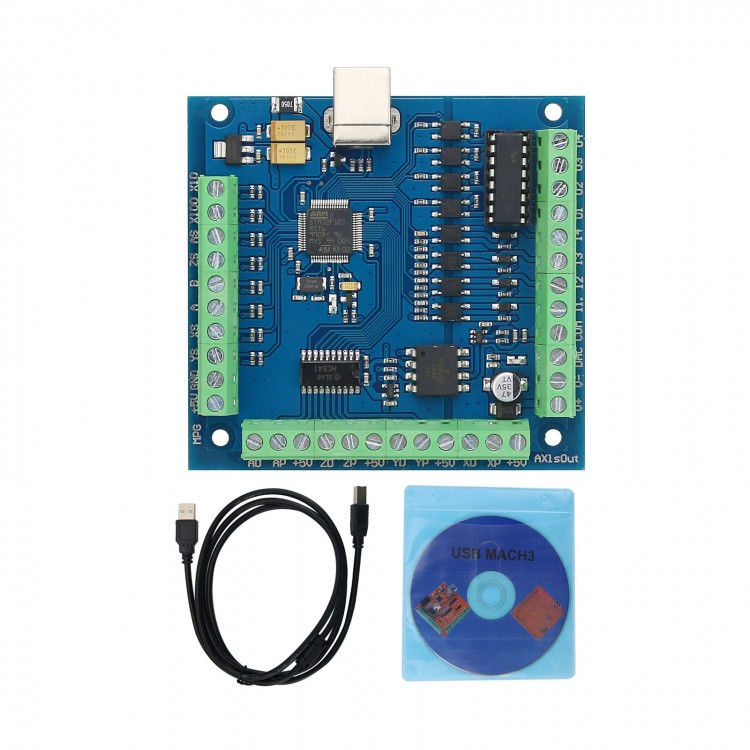

- 1 x CNC MACH3 USB 4 Axis 100KHz USBCNC Smooth Stepper Motion Controller card
- 1 x USB Cable
- 1 x CD

Description:
This USB motion control card has the below advantages: small volume, easy to use, has a strong anti-interference ability, No need to install any USB drivers,it can be used after plugging in the computer, suitable for all versions of Windows. Fully supporting all Mach3 versions.

Features:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor;
3. Support automatic probe tool
4. Support Emergency input
5. Support for limit switch
6. Support for connecting electronic handwheel
7. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
8. Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
10. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;
11. 1 status LED, indicate connection status on the board.

Basic connection diagram:
