4 Axis Nema 23 Kit (4pcs 23HS8610 Stepper Motors + 4-Axis Driver Board + 200W-24V Power Supply)

Availability: In stock, usually dispatched in 1 business day

  • Price:$256.51
  • Price in reward points: 2565 Reward Points: 26
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $251.38 $246.25 $238.55 $228.29 Contact US
Quantity:

4 Axis Nema 23 Kit (4pcs 23HS8610 Stepper Motors + 4-Axis Driver Board + 200W-24V Power Supply)

Package Included:

- 4 x Nema 23 Stepper Motors 290 oz.in Single Shaft, 6LEADS
- 1 x 4-axis Driver Board TB6560 Peak 3.5A, 16 Micsteps, Widely Used in CNC Hobby, Easy to Operate
- 1 x Power Supply 200W-24V

Detailed Information:

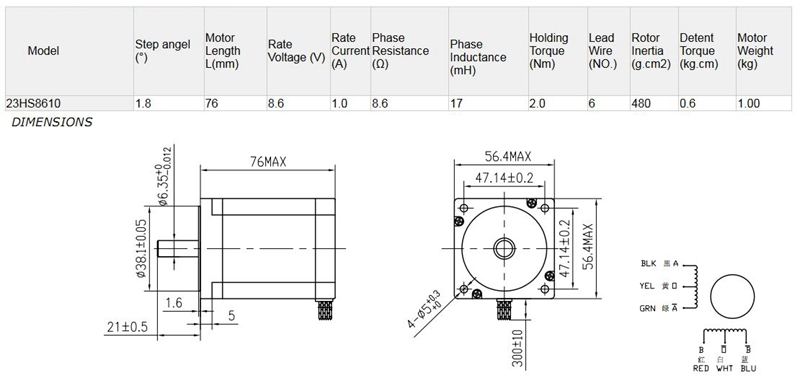

1. Nema 23 Stepper Motor




2. 4-axis Driver Board TB6560

Features:

☆ Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset.
☆ 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step.
☆ Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors.
*Attention: This driver is the 1.5A-3A version. It's specially designed for stepper motors with rated current from 1.5A to 3A. It's NOT compatible with stepper motors with rated current below 1.5A or above 3A. If the rated current your stepper motors is below 1.5A, you can choose the 0.5A-2.5A version.
Please let us know which version (1.5A-3A version is default) you need immediately after placing an order.

☆ Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment.
☆ On board current switching - Power output can be set according to specific user requirement.
☆ Full closed-type optical isolation to protect the user's computer and equipment.
☆ Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
☆ 4 channel inputs interface- Can be used for XYZ limit and emergency stop.
☆ Professional design - Two stage signal processing with super anti-jamming.
☆ Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect.
☆ Four-input Control; Allow setting the Limit, Emergence-Stop, Midpoint-Alignment, Cutter-Alignment.
☆ Universal architecture - Supports most parallel software MACH3,KCAM4 etc.
 *For compatibility with other software, please feel free to contact us.

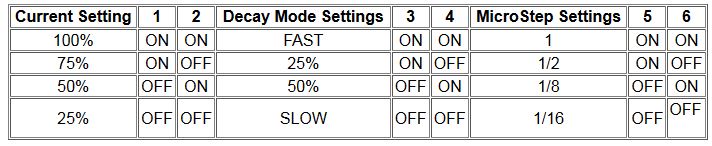

Dip Settings:

- Firstly, motor wiring connection is right.
- Secondly, the four axis driver card must be set up according to the requirements of our product manual. Especially motor outputs and output signals settings according to our product manual is right.
- Thirdly, you must use the XP system desktop computers. You can only use the parallel conversion card
- Fourthly, the four axis driver card need use mach3 software. You can download mach3 on our company website

Note: If you want product manual, please send e-mail to me. If you have problem when setting, please send e-mail to me.

3. Power Supply:

- The power is 200watts, and the output voltage is 24VDC 8.3A
